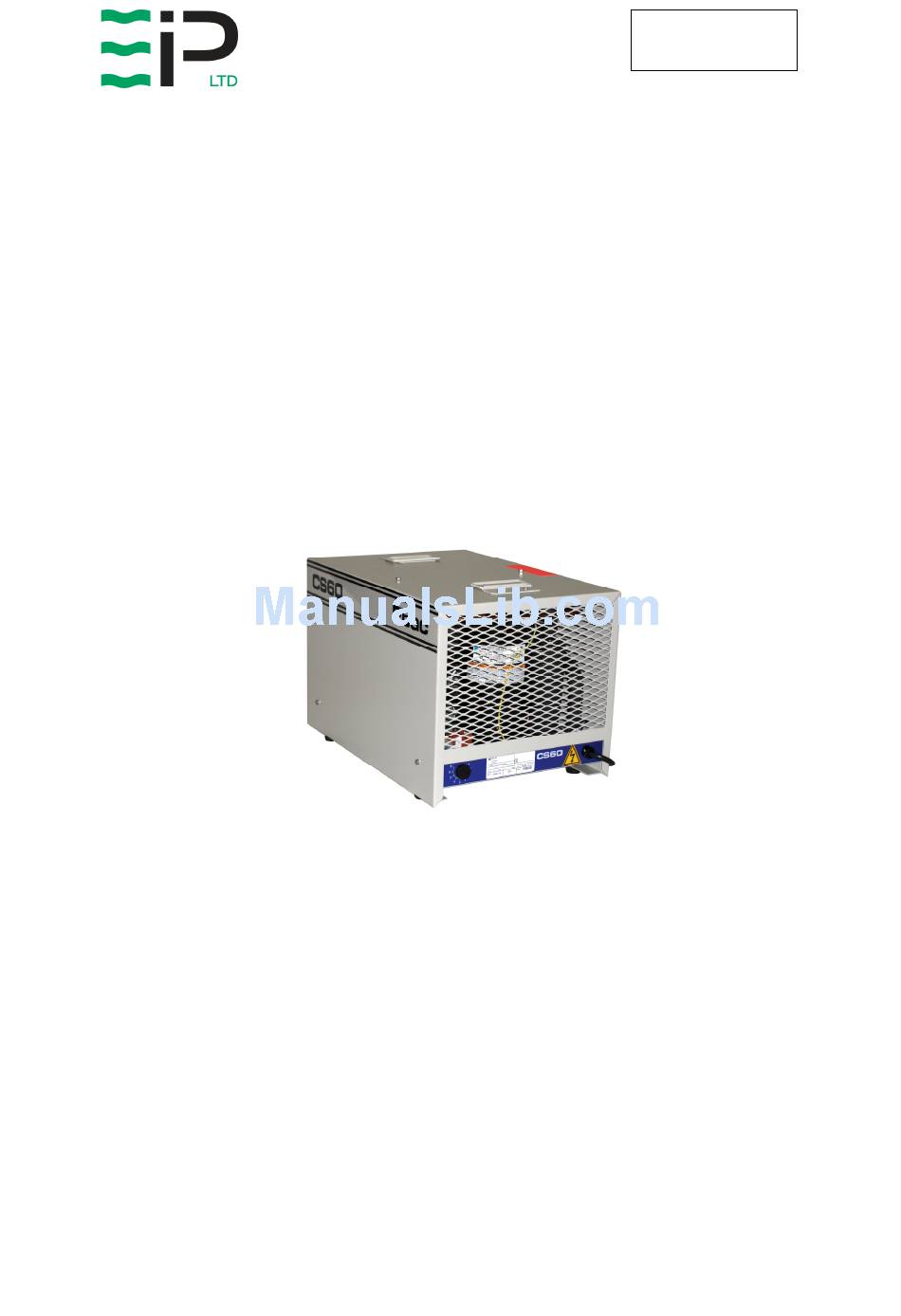

INDUSTRIAL DEHUMIDIFIER
OWNER'S MANUAL
www.eipl.co.uk
CS60
Page 1 of 13
Drawing : - TPC302
Issue
: - 5
Date
: - 03/10/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS60 and is the answer not in the manual?

Questions and answers

Related Manuals for EIPL CS60

Summary of Contents for EIPL CS60

  • Page 1 Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 CS60 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 13...

  • Page 2: Package Contents

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 CS60 PACKAGE CONTENTS Item Description Quantity 10264CS-US Dehumidifier 3014338 PVC tube – 12mm I/D 3086101 Jubilee clip TPC302 Manual Page 2 of 13...

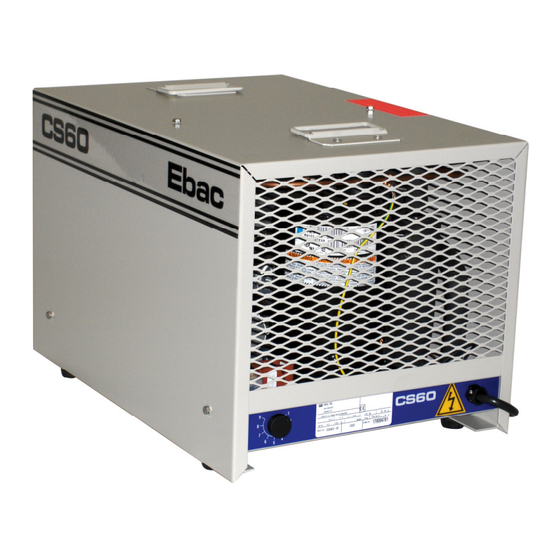

  • Page 3 Date : - 03/10/12 INTRODUCTION Designed for a wide range of applications, the CS60 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CS60 has a number of special features: •...

  • Page 4: Specifications

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 SPECIFICATIONS : CS60 ODEL : 14” (355mm) EIGHT : 14” (355mm) IDTH : 20” (508mm) EPTH : 63lbs (28.5 kg) EIGHT : 360 CFM (608M3/hr) IRFLOW : 56 Pints Per Day...

  • Page 5: Operation

    : - 5 Date : - 03/10/12 OPERATION The following procedures should be followed to test the CS60 for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet.

  • Page 6: Routine Maintenance

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air.
  • Page 7 Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.

  • Page 8: Troubleshooting

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2.

  • Page 9: Spare Parts List

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 CS 60 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1600550 Control Knob 2019708 Capillary Tube 3014251 48” Solenoid Valve 3020814 Filter Dryer 3020901 Compressor 3022169 Solenoid Coil 3030421 Capacitor 3030908...

  • Page 10: Limited Warranty

    Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 11 Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 Page 11 of 13...
  • Page 12 Drawing : - TPC302 Issue : - 5 Date : - 03/10/12 Page 12 of 13...
  • Page 13 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 13 of 13...
