CD425 (10149BR-US)
INDUSTRIAL DEHUMIDIFIER
OWNER'S MANUAL
www.eipl.co.uk
Page 1 of 16
Drawing : - TPC575
Issue
: - 1
Date
: - 08/02/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD425 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EIPL CD425

Summary of Contents for EIPL CD425

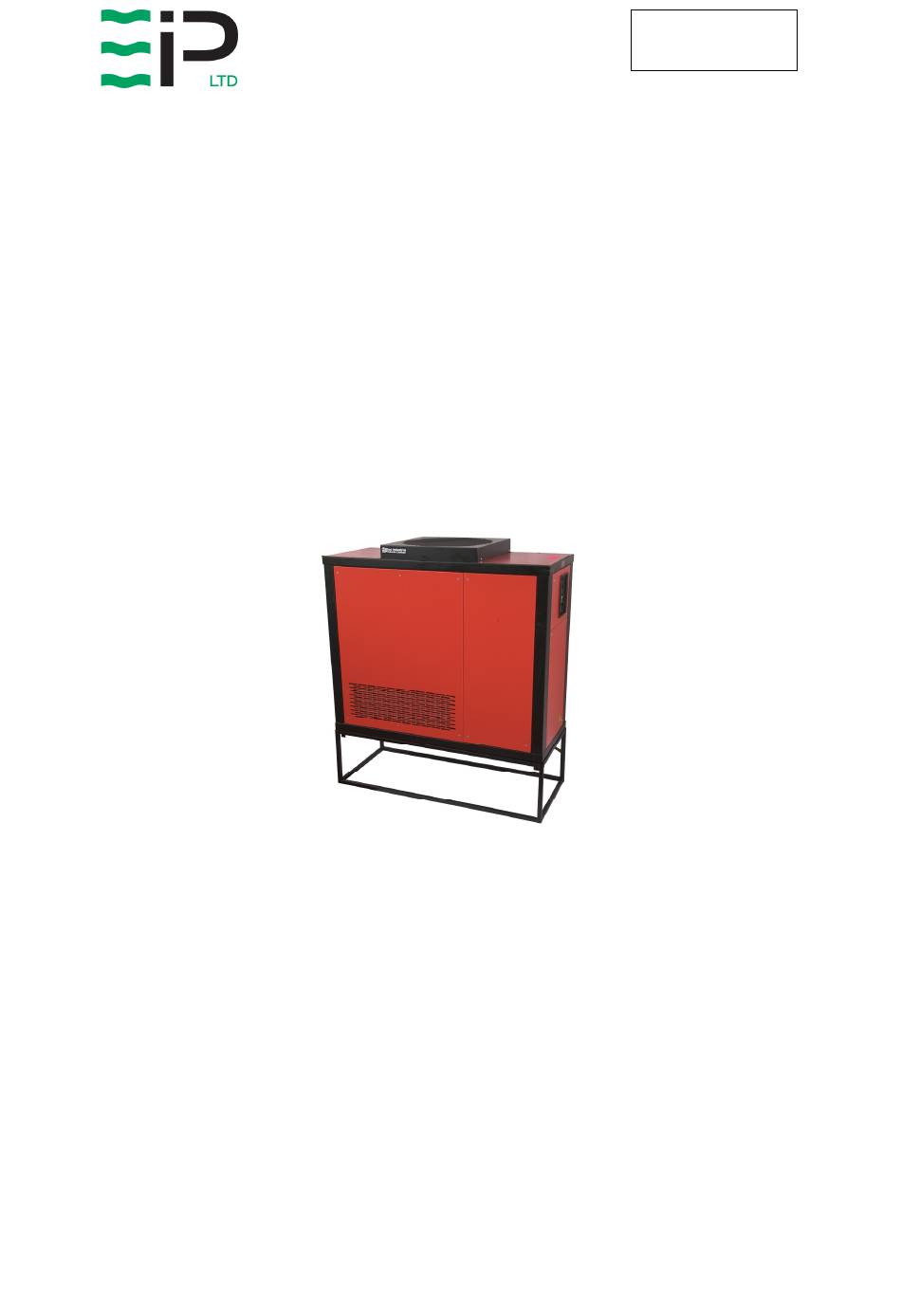

  • Page 1 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 CD425 (10149BR-US) INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...

  • Page 2: Package Contents

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 CD425 PACKAGE CONTENTS Item Description Quantity 10149BR-US Dehumidifier 3944110 Reinforced tubing – 16mm I/D TPC575 Manual Page 2 of 16...
  • Page 3 : - 08/02/22 UNPACKING Carefully remove the CD425 dehumidifier unit from its packing and visually check for signs of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your supplier for advice. Do not discard the packing, as it will be useful when transporting the dehumidifier unit in the future.

  • Page 4: Specifications

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 SPECIFICATIONS : CD425 ODEL : 1193 mm (47”) EIGHT : 1092 mm (43”) IDTH : 482 mm (19”) EPTH : 160 kg (353 lbs) EIGHT 1750 CFM IRFLOW...
  • Page 5 POSITIONING The CD425 is designed for indoor use only. Position the dehumidifier unit in the centre of the room to be conditioned if at all possible. Using a spirit level ensure the unit is level in both directions.

  • Page 6: Operation

    : - 08/02/22 OPERATION The CD425 is a self contained low temperature dehumidifier. All electrical contactors, overloads, etc are housed in an electrical box built inside the unit. The unit is equipped with a defrost valve which energized automatically to clear any ice formation on the evaporator coils.
  • Page 7 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 f) Observe the evaporator coils If the air temperature is below 20°C, an even coating of ice should cover the entire evaporator coil If the temperature is above 20°C, droplets of condensed water should cover the entire evaporator coil.

  • Page 8: Routine Service

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON.
  • Page 9 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.

  • Page 10: Troubleshooting

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from the Unit inoperative 1. No power to unit power supply panel 1. Tighten fan 1. Loose fan on shaft 2.

  • Page 11: Spare Parts List

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 SPARE PARTS LIST ESCRIPTION UANTITY Dehumidifier Controller 1619522 Display PCB 1619525 Humidity Sensor PCB 1619526 LED Board Cable 2013748 Humidity Sensor Cable 2013753 Keypad Label 2014468 Capillary Tube 3014251 12 X 1400mm X 0.047 Condenser Coil...

  • Page 12: Limited Warranty

    Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 ww.EIPLDIRECT.com LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 13 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
  • Page 14 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 Page 14 of 16...
  • Page 15 Drawing : - TPC575 Issue : - 1 Date : - 08/02/22 Page 15 of 16...
  • Page 16 Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 www.eipl.co.uk www.ebacusa.com sales@eipl.co.uk sales@ebacusa.com Page 16 of 16...
