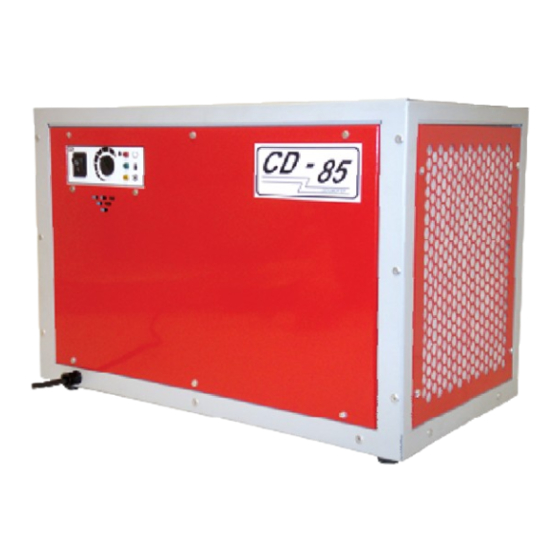

INDUSTRIAL DEHUMIDIFIER
OWNER'S MANUAL
www.eipl.co.uk
CD85
Page 1 of 16
Drawing : - TPC361
Issue
: - 6
Date
: - 10/12/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD85 and is the answer not in the manual?

Questions and answers

Related Manuals for EIPL CD85

Summary of Contents for EIPL CD85

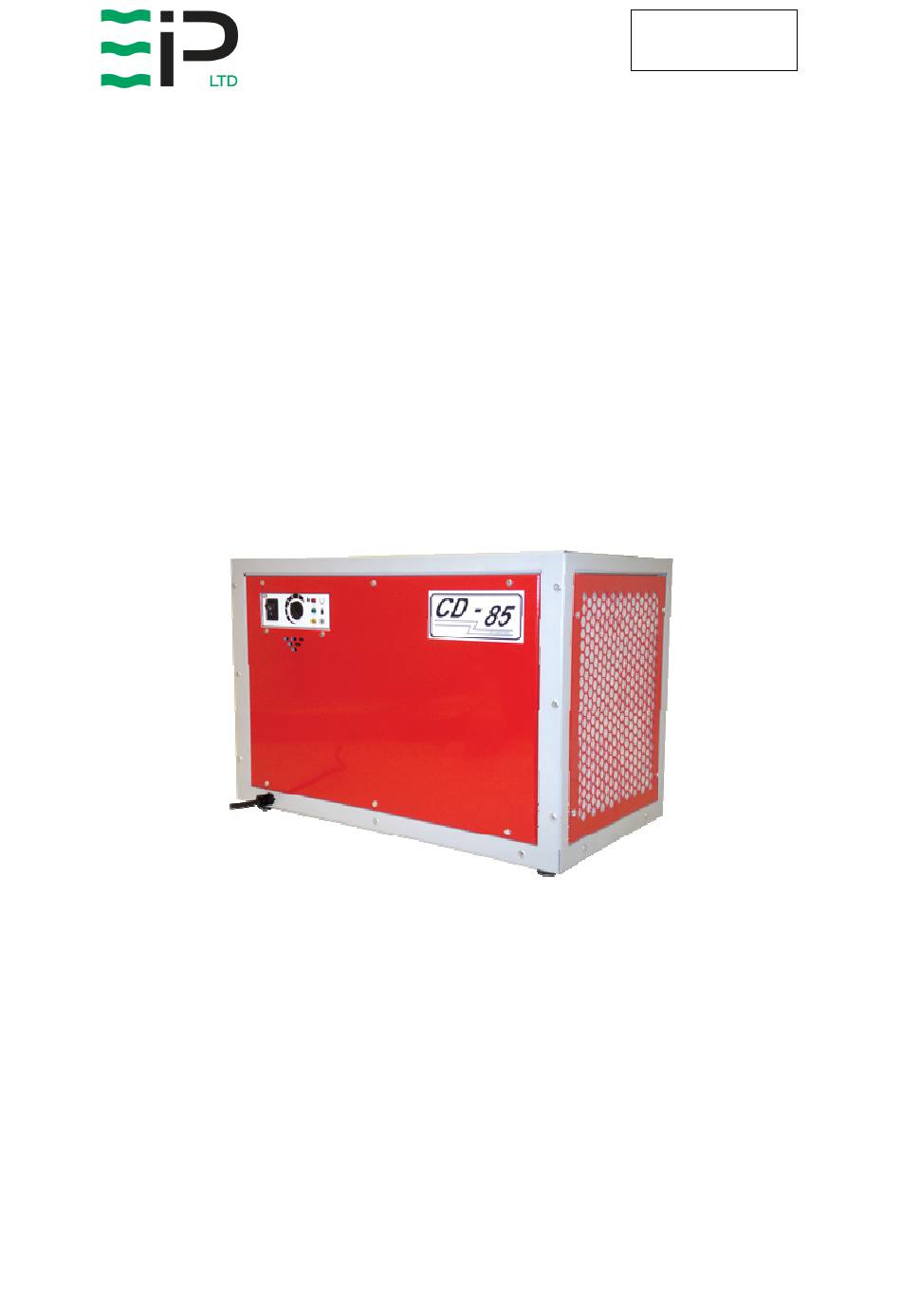

  • Page 1 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 CD85 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...

  • Page 2: Package Contents

    Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 CD85 PACKAGE CONTENTS Item Description Quantity 10293GR-US Dehumidifier 3014338 PVC Tube – 12mm I/D 3086101 Jubilee clip TPC361 Manual Page 2 of 16...
  • Page 3 Date : - 10/12/13 INTRODUCTION Designed for a wide range of applications, the CD85 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CD85 has a number of special features: •...
  • Page 4 : - 10/12/13 COVERS The CD85 covers can be swapped to allow the airflow direction to be changed to better suit the application the unit is to be used for. To change the covers, first remove the 4 off retaining screws and washers from each cover, swap cover positions and replace 4 off retaining screws and washers.
  • Page 5 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 Evaporator Blank Condenser Grille Cover Cover (Air out of machine) (Blocks Airflow) Condenser Blank Cover (Blocks airflow) Evaporator Grille Cover (Air into Machine) Evaporator Blank Condenser Blank Cover Cover (Blocks Airflow) (Blocks airflow)

  • Page 6: Specifications

    Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 SPECIFICATIONS : CD85 ODEL : 15.75” EIGHT : 23.6” IDTH : 13.5” EPTH : 75 lbs EIGHT : 360 CFM IRFLOW : 56 Pints Per Day XTRACTION : 110V/ 60Hz/ 1 ph...

  • Page 7: Operation

    : - 6 Date : - 10/12/13 OPERATION The following procedures should be followed to test the CD85 for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet.

  • Page 8: Routine Maintenance

    Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air.
  • Page 9 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.

  • Page 10: Troubleshooting

    Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 2. See Routine Maintenance 1.
  • Page 11 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 CD85 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1619508 Thermistor assembly 3035142 Control Knob 2018644 Capillary Tube 3014254 2 x 24” Solenoid Valve 3020814 Filter Dryer...

  • Page 12: Limited Warranty

    Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 13 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 Page 13 of 16...
  • Page 14 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 Page 14 of 16...
  • Page 15 Drawing : - TPC361 Issue : - 6 Date : - 10/12/13 Page 15 of 16...
  • Page 16 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 16 of 16...
