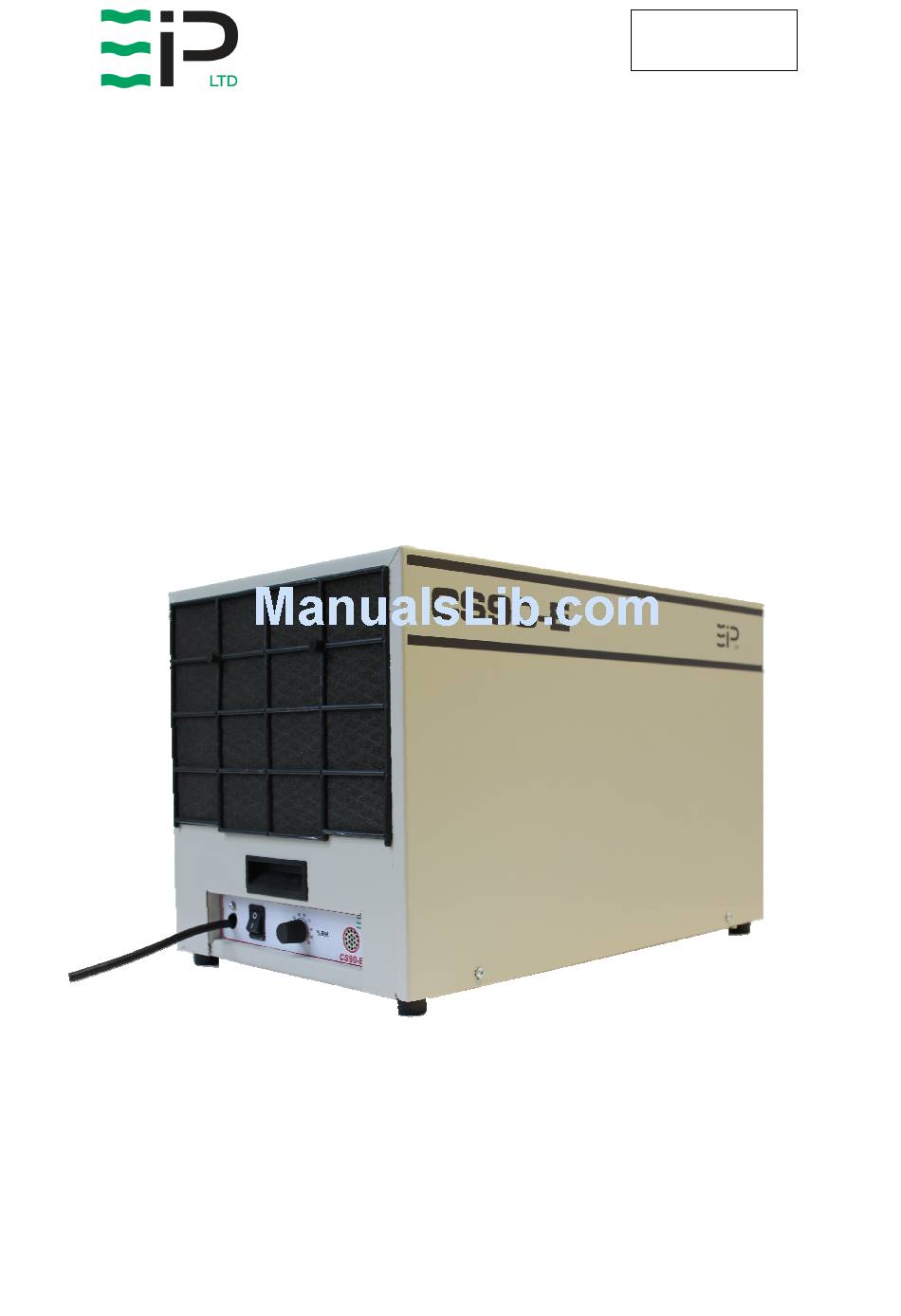

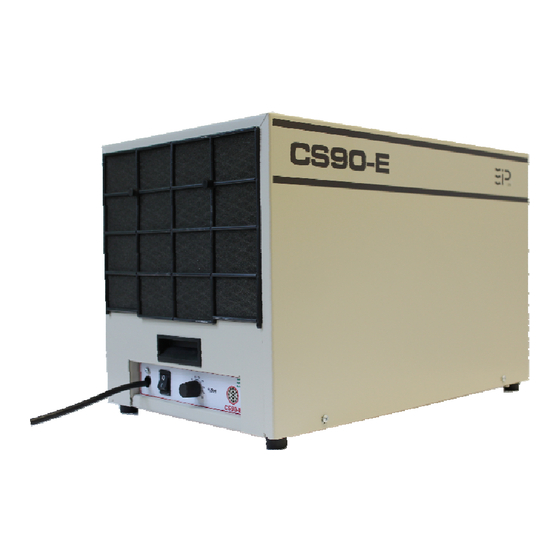

- Page 1 Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 CS90E INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Package Contents
Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 CS90E PACKAGE CONTENTS Item Description Quantity 10590GE-US Dehumidifier 3944110 PVC tube – 3/8” I/D 7.8 M 3086144 Quick release hose coupling TPC447 Manual Page 2 of 12... - Page 3 Date : - 23/05/16 INTRODUCTION Designed for a wide range of applications, the CS90E dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CS90E has a number of special features: •...
- Page 4 : - 2 Date : - 23/05/16 The CS90E dehumidifier is a rugged, reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. An active hot gas defrost system, controlled by an electronic timer, guarantees positive de-icing, thereby optimizing operation at low temperatures.
-
Page 5: Specifications
Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 SPECIFICATIONS : CS90E ODEL : 15.2” (386mm) EIGHT : 14” (353mm) IDTH : 22” (564mm) EPTH : 84lbs (38 kg) EIGHT : 230 CFM (390M3/hr) IRFLOW : 110V/ 60Hz/ 1 ph... -
Page 6: Operation
: - 2 Date : - 23/05/16 OPERATION The following procedures should be followed to test the CS90E for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet. -
Page 7: Routine Maintenance
Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air. - Page 8 Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 9: Troubleshooting
Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 2. See Routine Maintenance 1. - Page 10 Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 CS90E SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Humidity Sensor 1619514 Defrost Timer 1619516 Filter 2013831 Condenser Coil 2059000 Evaporator Coil 2059001 Capillary Tube 3014249 2 x 30”...
-
Page 11: Limited Warranty
Drawing : - TPC447 Issue : - 2 Date : - 23/05/16 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 12 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 12 of 12...
