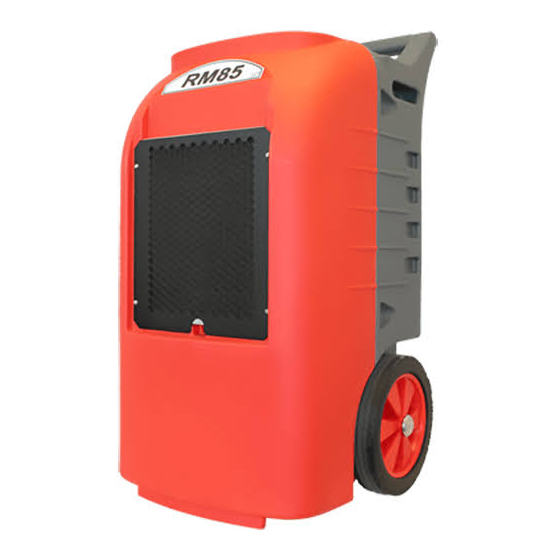

- Page 1 Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 RM85 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Package Contents
Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 RM85 PACKAGE CONTENTS Item Description Quantity 10560RG-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D 7.8M TPC408 Manual Page 2 of 12... - Page 3 Date : - 08/08/14 INTRODUCTION Designed for a wide range of applications, the RM85 is a rugged, industrial unit, which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The RM85 has a number of special features: •...
-
Page 4: Specifications
Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 SPECIFICATIONS : 10560rg-us ODEL : 37.2” (945mm) EIGHT : 21.5” (545mm) IDTH : 19.4” (492mm) EPTH : 99 lbs (45 Kg) EIGHT : 230 CFM (390 M3/hr) IRFLOW : 110V/ 60Hz/ 1 ph OWER UPPLY... -
Page 5: Operation
ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE MINUTES BEFORE RESTARTING. After using the RM85, turn it off for five minutes to allow the condensate on the coils to drain into the pump reservoir, then press the momentary pump purge switch for twenty to thirty seconds to evacuate the water from the pump reservoir. -
Page 6: Routine Maintenance
Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE ON ITEMS 1, 2, 3, 4 & 5 To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: 1. - Page 7 Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 8: Troubleshooting
Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 1. Fan motor burnt out 2. -
Page 9: Spare Parts List
Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 RM85 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Timer 1619508 Condenser coil 2029322 Evaporator coil 2029323 Cable & Tube wrap 2056002 Drain tray 2056003 Filter 2056004 Capillary 3014254... - Page 10 Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 Page 10 of 12...
- Page 11 Drawing : - TPC408 Issue : - 3 Date : - 08/08/14 Page 11 of 12...
- Page 12 DL14 9AD Tel: +01 757 873 6800 Tel: +49 3043 557241 Tel: +44 (0) 1388 664400 Fax: +01 757 873 3632 Fax: +49 3043 557240 Fax: +44 (0) 1388 662590 www.ebacusa.com www.eip-ltd.de www.eipl.co.uk sales@ebacusa.com sales@eip-ltd.de sales@eipl.co.uk Page 12 of 12...
