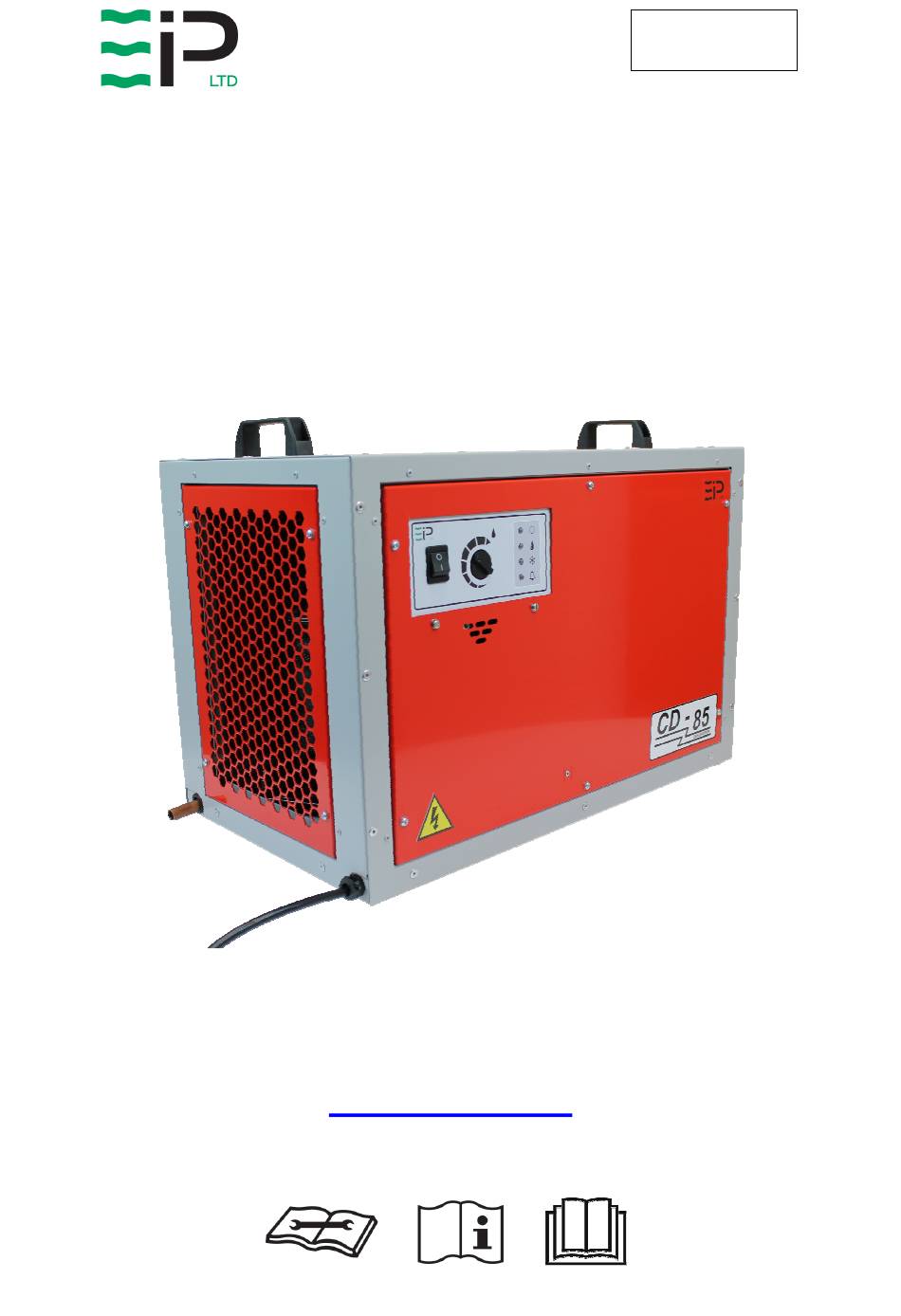

- Page 1 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 CD85 CD85 CD85 CD85 DEHUMIDIFIER DEHUMIDIFIER DEHUMIDIFIER DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...
-
Page 2: Safety Information
Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 SAFETY INFORMATION Children shall not play with the appliance. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. - Page 3 Before disposing all refrigerant should be evacuated and disposed of as required by local environmental laws. • If there is any damage to the appliance, DO NOT USE and contact EIPL. • The appliance must not be used in a potentially explosive atmosphere.
- Page 4 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 DEHUMIDIFIER PRINCIPLE Dehumidifiers remove moisture from the air that is circulating through the appliance. The resulting reduction of relative humidity helps prevent rust, rot, mould, mildew and condensation within the room, or other enclosed spaces where the dehumidifier is used.
-
Page 5: Installation
Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 INSTALLATION POSITIONING: Position the appliance in the center of the room to be conditioned if at all possible. However, if a damp patch is particularly apparent the outlet grille should be pointed towards it. - Page 6 (Air out of Machine) HANDLE: The CD85 can be fitted with handles if required. Handles are found separate in the packaging. On top of the unit there are 4 off M5 pan headed bolts. Remove the bolts with appropriate flat bladed screw driver. Place handles over fixings on top of unit and replace M5 bolts to secure handle.
- Page 7 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 WIRING: Connect the power mains cable to a 13 Amp power supply as follows: - 230V supply 13 AMP 230V PLUG BS1363 Brown Live Blue Neutral Green/Yellow Earth (ground) DRAINAGE: The appliance is fitted with a condensate pump which collects all the condensate.
-
Page 8: Operation
Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 OPERATION Once the appliance is installed turn the power supply on, then turn the on / off switch to the ‘I’ position and note the unit starts. Then carry out the following: - •... - Page 9 Yellow Flashing followed by Red solid – Alarm humidity level reached If, after carrying out the above procedures, the appliance does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact EIPL. Page 9 of 16...
-
Page 10: Routine Service
1. Insufficient air flow 1. Check all of the above Little or no water 2. Compressor fault 2. Contact EIPL extraction 3. Loss of refrigerant gas 3. Contact EIPL Little or no defrost 1. Faulty Timer 1. -
Page 11: Specifications
Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 SPECIFICATIONS : 11293ML-GB ODEL : 400 mm (15.8 in) EIGHT : 600 mm (23.6 in) IDTH : 345 mm (13.6 in) EPTH : 33 Kg (72.8 lb) EIGHT : 350 M /Hr (206 CFM) IRFLOW... - Page 12 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 APPLIANCE SPARE PARTS LIST Description Part Number Product Part Number 11293ML-GB PCB Timer 1619522 Light Display PCB 1619523 PCB Connecting Cable 2013748 Humidistat Control Knob 2018644 Mains Cable 2029217 Filter 2029331...
- Page 13 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 Page 13 of 16...
- Page 14 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 Page 14 of 16...
- Page 15 Drawing : - TPC556 Issue : - 1 Date : - 06/09/21 Page 15 of 16...
- Page 16 Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 www.eipl.co.uk www.ebacusa.com sales@eipl.co.uk sales@ebacusa.com Page 16 of 16...
