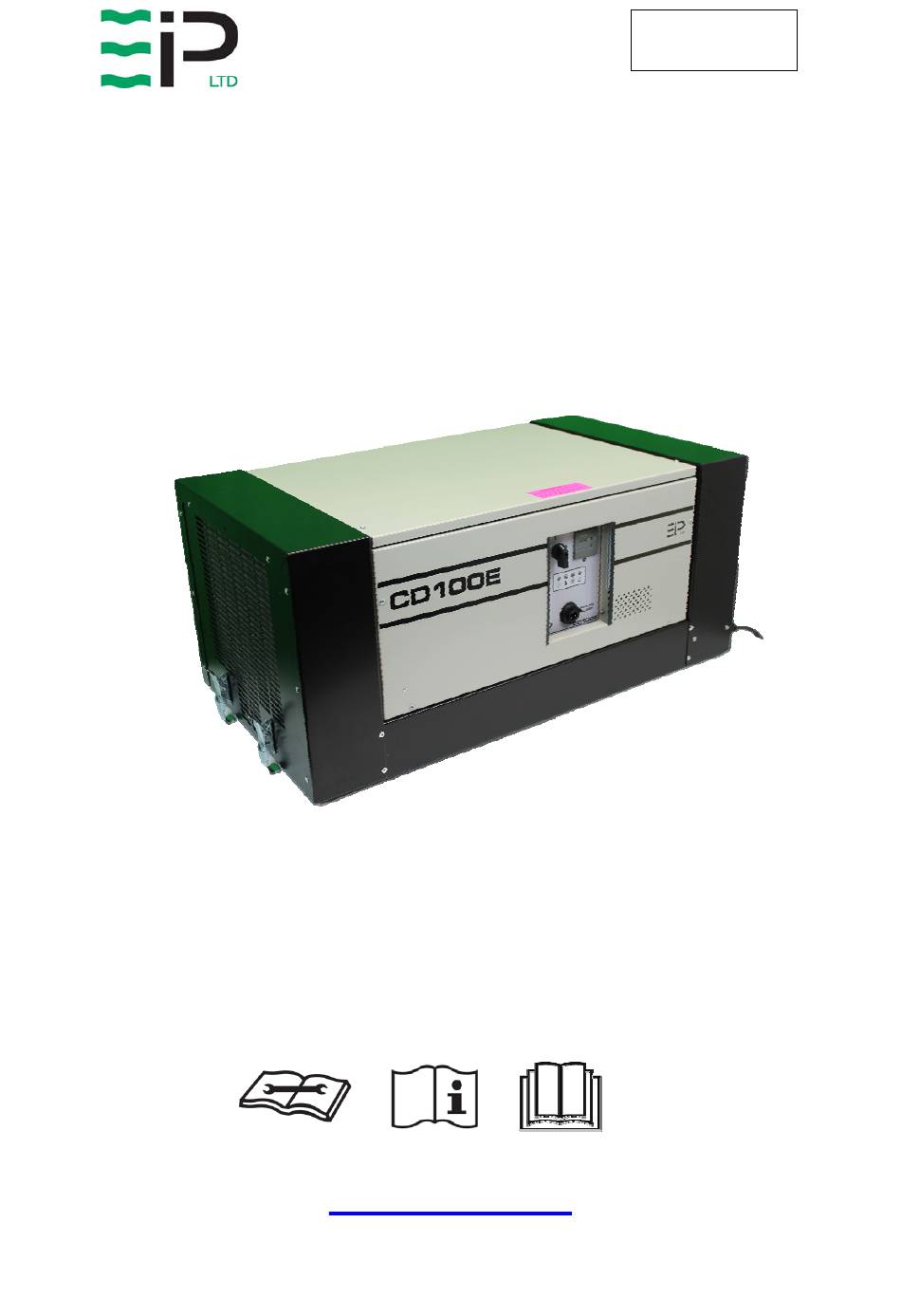

- Page 1 Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 CD100E DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Safety Information
Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 SAFETY INFORMATION Children shall not play with the appliance. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. - Page 3 Before disposing all refrigerant should be evacuated and disposed of as required by local environmental laws. If there is any damage to the appliance, DO NOT USE and contact EIPL. The appliance must not be used in a potentially explosive atmosphere.
- Page 4 Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 DEHUMIDIFIER PRINCIPLE Dehumidifiers remove moisture from the air that is circulating through the appliance. The resulting reduction of relative humidity helps prevent rust, rot, mould, mildew and condensation within the room, or other enclosed spaces where the dehumidifier is used.
-
Page 5: Installation
Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 INSTALLATION POSITIONING: Position the appliance in the center of the room to be conditioned if at all possible. However, if a damp patch is particularly apparent the outlet grille should be pointed towards it. -
Page 6: Operation
Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 OPERATION Once the appliance is installed turn the humidistat knob fully clockwise. Switch the power supply ON. Turn the on/off switch ON and note the unit starts. Then carry out the following: - ... - Page 7 4 – DRAIN FAULT Yellow Flashing followed by Red solid – Drainage fault If, after carrying out the above procedures, the appliance does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact EIPL. Page 7 of 12...
-
Page 8: Kit Contents
Wall Mounted Bracket. 8. Using Item 6 assemble items 1 and 2 ensuring the fingers of Item 2 locate into the CD100 chassis. 9. Secure the CD100 / CD100E with the 2 Claw Clamps onto Item 1. Page 8 of 12... -
Page 9: Routine Service
1. Insufficient air flow 1. Check all of the above Little or no water 2. Compressor fault 2. Contact EIPL extraction 3. Loss of refrigerant gas 3. Contact EIPL Little or no defrost 1. Faulty Timer 1. -
Page 10: Specifications
Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 SPECIFICATIONS : CD100E ODEL : 400 mm (16 in) EIGHT : 900 mm (35.5 in) IDTH : 500 mm (20 in) EPTH : 75 Kg (165 lb) EIGHT... - Page 11 Drawing : - TPC533 Issue : - 1 Date : - 04/01/21 APPLIANCE SPARE PARTS LIST Description Part Number Product Part Number 10273GY-GB PCB Timer 1619522 PCB Light Board 1619523 Humidistat Knob 2019708 Condenser Coil 3020727 Evaporator Coil 3020732 By-Pass Valve 3020833 Filter Dryer 3020957 Fan Motor 3030129 Solenoid Coil 3030454...
- Page 12 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@ebacusa.com sales@eip-ltd.de sales@eipl.co.uk Page 12 of 12...
