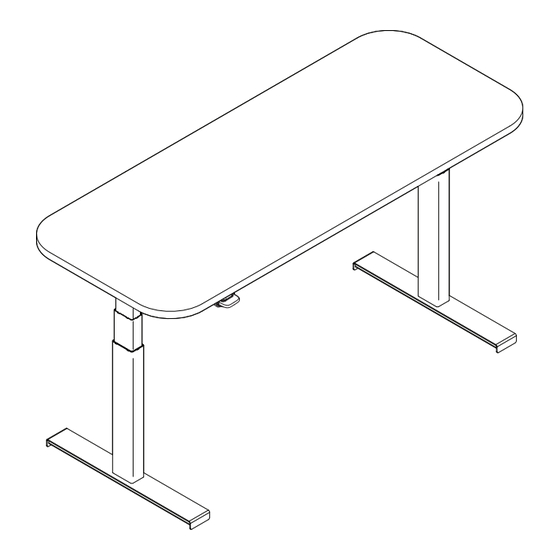

Height adjustable desking for commercial use, including base only

Advertisement

Quick Links

®
888.STEELCASE (888.783.3522)
www.steelcase.com
2024 Steelcase Inc.
©
Grand Rapids, MI 49501 U.S.A.

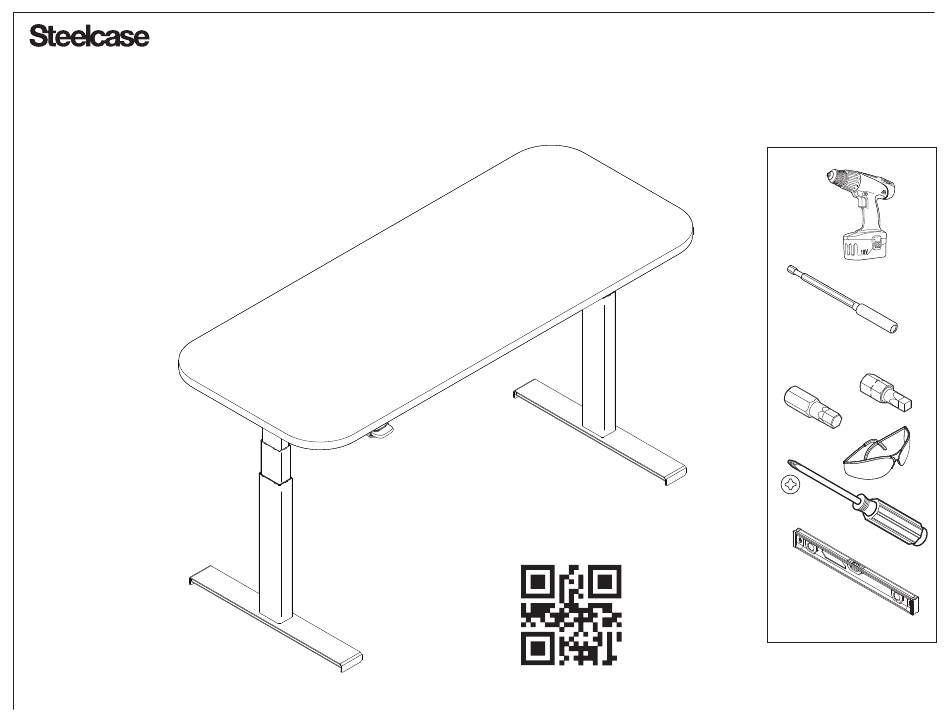

Migration Collection
for commercial use, including Base Only
Height Adjustable Desking
INTRO (HA1)
Power Driver
>6" Bit
holder
Square bit
#2, °2
4mm
Page 1 of 23
P/N 1564060001
Doc # 168744 Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Migration INTRO HA1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Migration INTRO HA1

  • Page 1 Base Only INTRO (HA1) Power Driver >6” Bit holder Square bit #2, °2 888.STEELCASE (888.783.3522) www.steelcase.com Page 1 of 23 2024 Steelcase Inc. © P/N 1564060001 Grand Rapids, MI 49501 U.S.A. Doc # 168744 Rev B...
  • Page 2 WARNING RISK OF SERIOUS INJURY: POTENTIAL FOR INJURY: The use of worksurfaces that do not comply with the Steelcase defined criteria and limitations could cause personal injury or property damage due to pinch points, instability, or other problems. POTENTIAL FOR NON-COMPLIANCE: The use of worksurfaces that do not comply with Steelcase criteria VOIDS any Steelcase claims of compliance with ANSI/BIFMA, UL, LEED, or other applicable requirements.
  • Page 3 ® BASE - ONLY Understructure positioning ( Base - Only option ) For INTRO - Understructure is centered equally front to rear and side to side Page 3 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 4 These drawings identify the parts included with your Height Adjustable Desk. Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Ces dessins identifient les pièces incluses avec votre bureau réglable en hauteur.
  • Page 5 Column Some of these parts are considered by regulatory bodies to be critical components. If any parts shown here do not match your order, please contact Steelcase at www.steelcase.com/contact-us Ces dessins identifient les pièces incluses avec votre bureau réglable en hauteur.
  • Page 6 ® Page 6 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 7 ® #10x.875” Page 7 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 8 ® CONTROLLER ASSEMBLY TO WORKSURFACE #8x.75” #6x1.5” NOTE: Use Hand driver Do not overtighten Page 8 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 9 ® CABLE ROUTING AND POWER SUPPLY Route DC power cable opposite of controller. Connect power cord to power supply. Connect DC power cable to power supply. Route column cable end to end. Page 9 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 10: Specifications Label

    ® Specifications CABLE ROUTING AND POWER SUPPLY Label 5. Rotate 180º with specification label up. 6. Secure power supply diagonally as shown. 7. Route controller cable to primary column location opposite controller. #8x.75” Page 10 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 11 ® If Worksurface width >72” -OR- Active Touch Controller is used (any worksurface width 40”-78”) a Splitter, DS1 Dongle (Collision Sensor) and alternate wiring routing is required. DP1 or Active Touch Splitter Controller Cable DS1 Dongle RS45 Jumper routed to Primary Leg Base (1A) Page 11 of 23 P/N 1564060001...
  • Page 12 ® Installer Tip: Verify proper lift column M6x10 LIFT COLUMN PREP type (1A, 1B) before prep. 1 port 3 ports Primary column (1A) Secondary Column (1B) (6.35mm) (6.35mm) 0.25” 0.25” Page 12 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 13 ® LIFT COLUMN CONNECTIONS/ASSEMBLY M6x10 NOTE: Tighten screws securely! Page 13 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 14 ® #10x.875” Page 14 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 15 ® M6x14 Page 15 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 16 ® Note: Steps 1 and 2 are required for Chicago only. #8x.75” Page 16 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 17 ® Solo para el interruptor Active Touch: Toque el interruptor. Cada vez que lo presiona, alternará entre 574mm y 701mm, las 2 alturas de inicio diferentes. Columna extendida: 574mm Columna básica: 701mm Una vez que logre la altura deseada, suelte el interruptor por más de 3 segundos y la configuración se mantendrá...
  • Page 18 ® Press down to initialize the desk, holding for 3 seconds. After initialization, the legs will now adjust vertically. Appuyez pendant 3 secondes pour initialiser le bureau. Après i’initialisation, les pieds s’ajusteront en hauteur. Presione hacia abajo para inicializar el escritorio, manteniendolo asi durante 3 segundos.
  • Page 19 ® Resetting Display Height on the Active Touch Controller 1. Press 1,2,1,2. The text display 2. Lift up or press down on the controller to scroll through starting height options. 3. Once the desired height is displayed, pause for 2-5 seconds. 4.
  • Page 20 ® M6.3x13 855000100 SCREW - WOOD Page 20 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 21 ® OPTIONAL METAL CABLE TRAY ( PILOT HOLES ARE PROVIDED ) Note: When using with Universal or Sarto Privacy/Modesty screens, adjust tray position so the tray touches the face of the screen. Please refer to Doc # 168146 for additional details. #10x.875”...
  • Page 22 ® Page 22 of 23 P/N 1564060001 Doc # 168744 Rev B...
  • Page 23 ® Page 23 of 23 P/N 1564060001 Doc # 168744 Rev B...
