ADDAC814 Assembly Guide

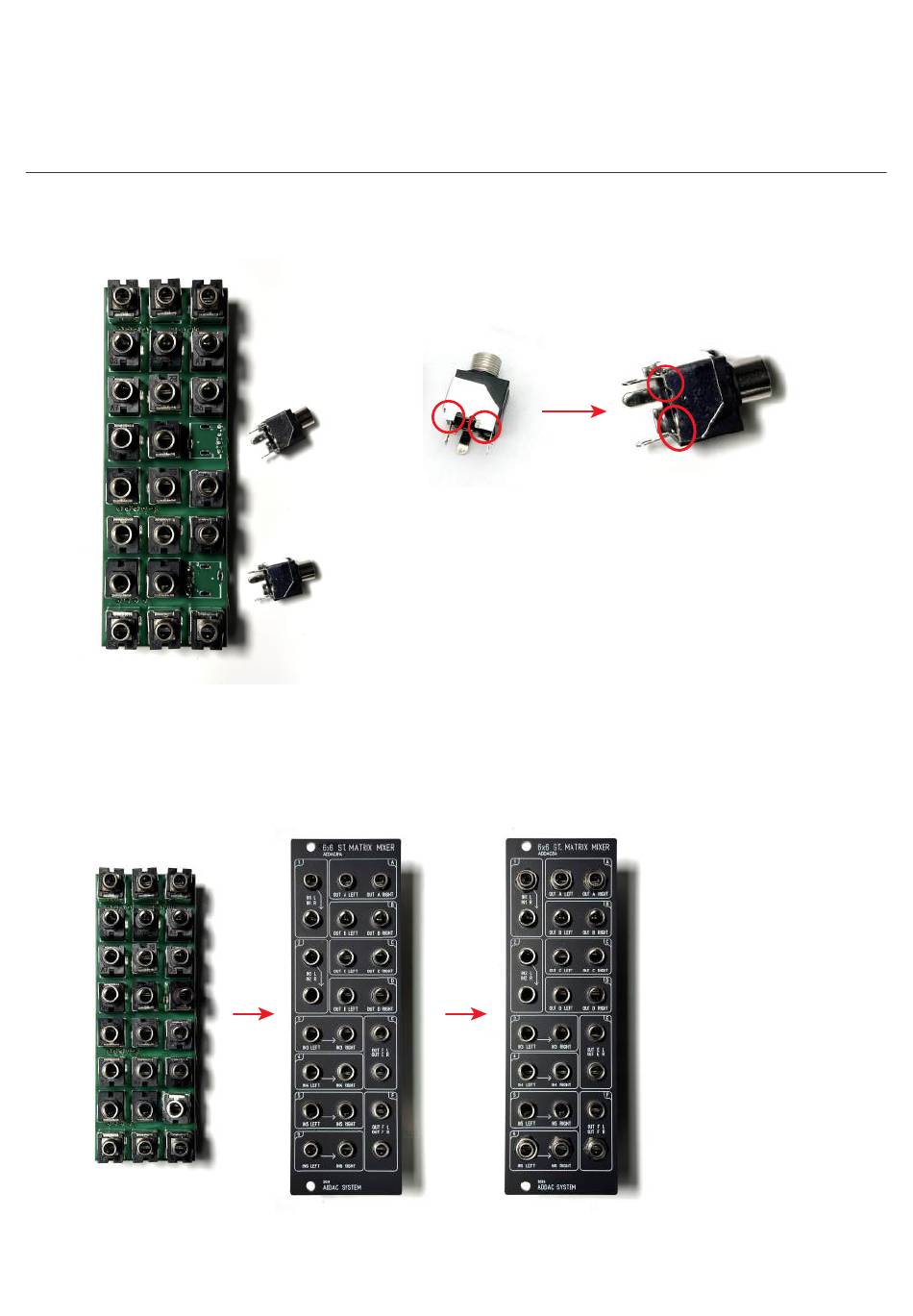

STEP 10:
For the remaining 2 jacks cut the extra support points on the side of the thin leg that was cut on step 6.
This prevents shorting the pinheaders below the jacks.
STEP 11:
Place the remaining 2 jacks, place the front panel and tighten the 3 top and 3 bottom nuts.
Proceed by soldering all jacks legs
ADDAC SYSTEM
page 7
