ADDAC814 Assembly Guide

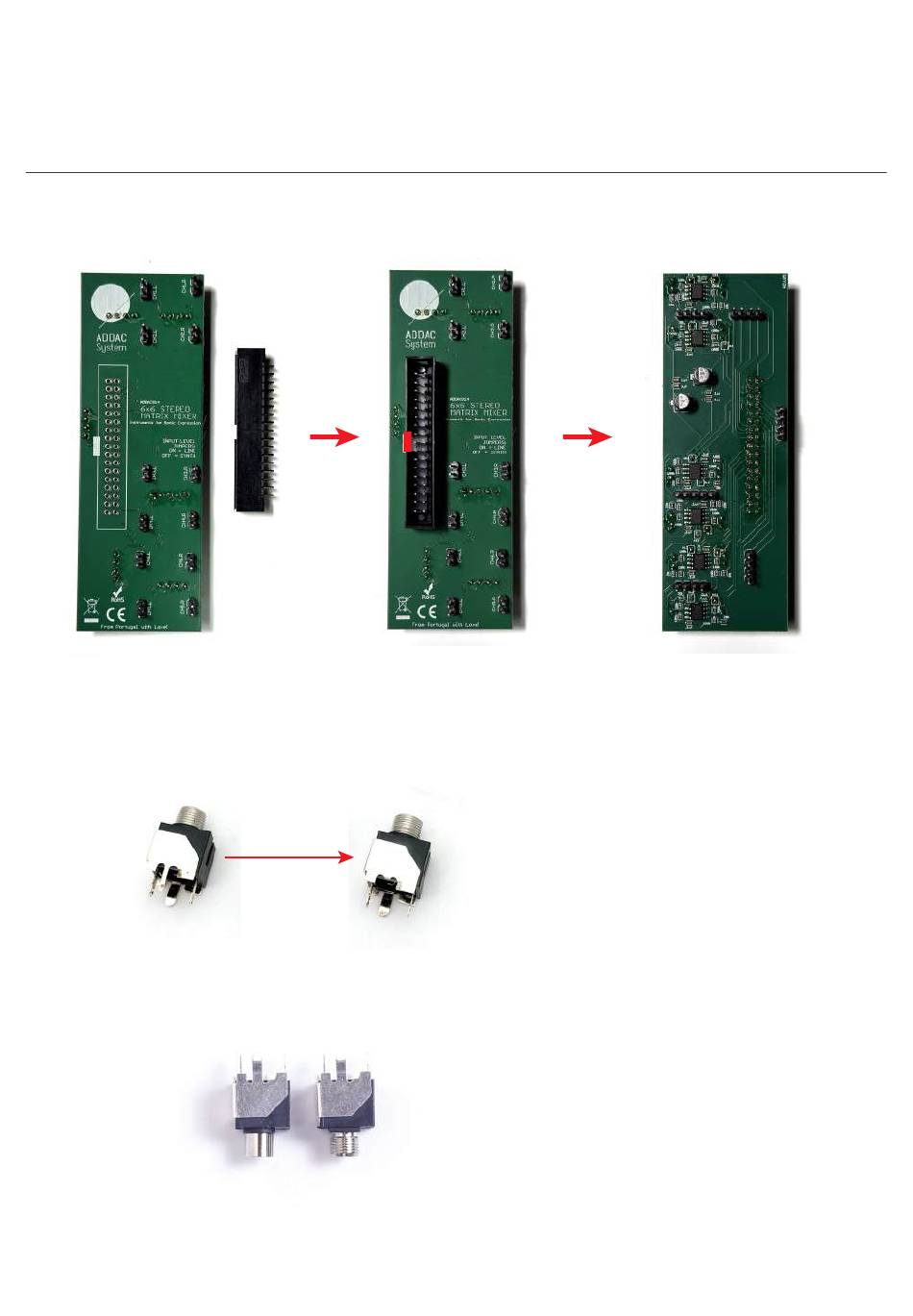

STEP 5:
Locate the 2x17 IDC header, notice the orientation of the indent, place and solder it like shown below.
STEP 6:
Locate the jacks below and cut the thinest leg like shown below.
STEP 7:
Next notice there are 2 jack types, threaded and non-threaded.
Separate them by type.
Non-threaded
Threaded Jacks
Jacks
