ADDAC814 Assembly Guide

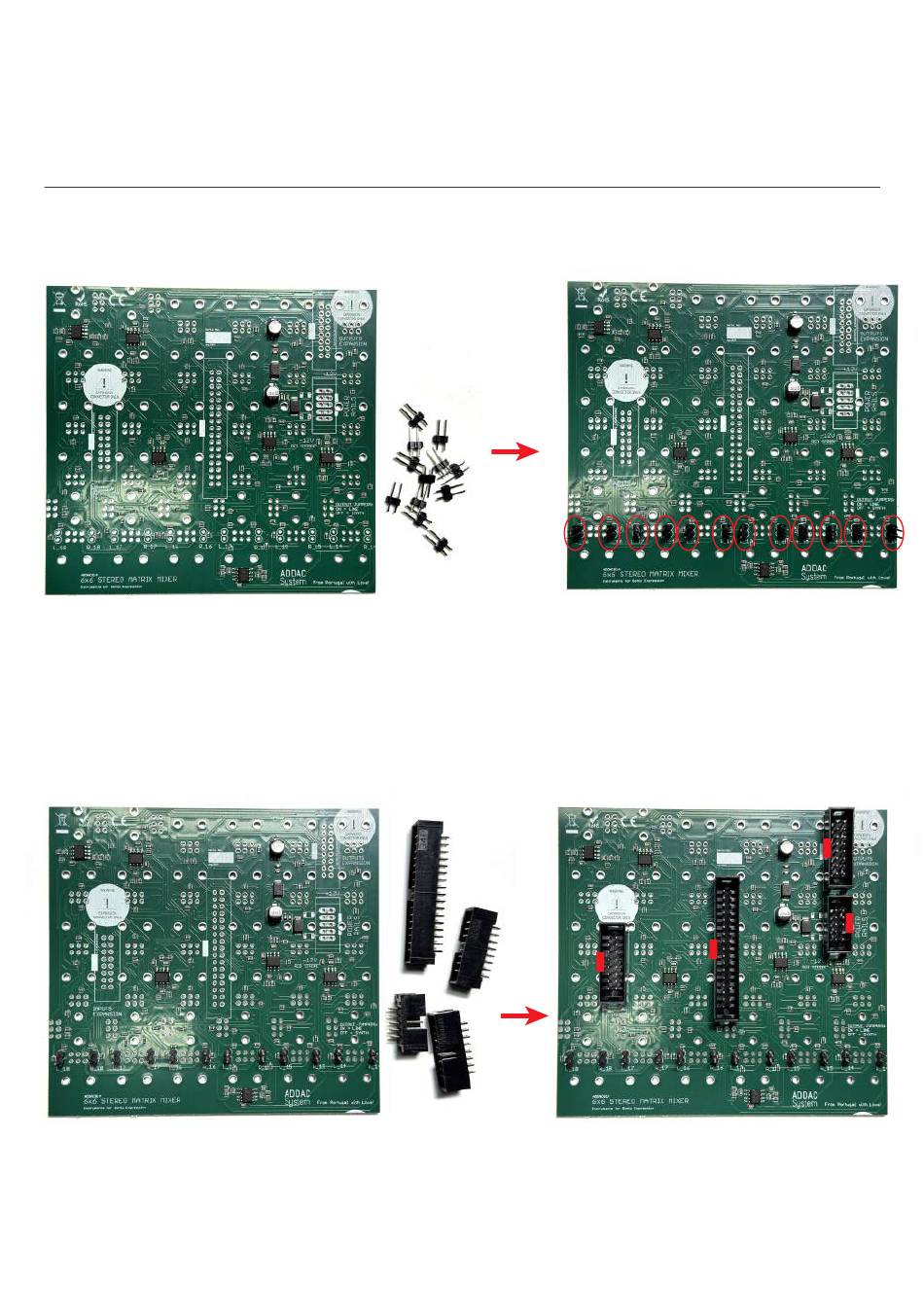

STEP 1:
Locate and place the 2 pin pinheaders, proceed by soldering them.
STEP 2:
Locate and place the IDC connectors, notice the orientation of the indent.
Proceed by soldering them.
