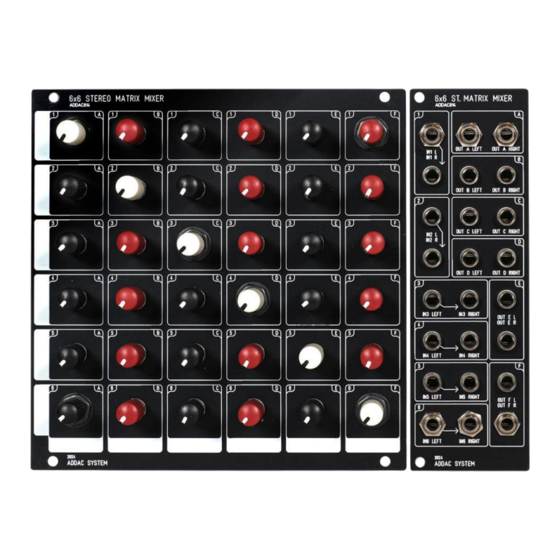

- Page 2 ADDAC814 Jacks Assembly Guide March.2025 ADDAC SYSTEM page 2...
- Page 3 ADDAC814 Assembly Guide STEP 1: Carefully break the pcbs apart like shown below. STEP 2: Locate the pinheaders and place them like shown below. ADDAC SYSTEM page 3...
- Page 4 ADDAC814 Assembly Guide STEP 3: Place the top pcb on top of the pinheaders and solder the pinheaders on both pcbs. Once soldered split them apart. STEP 4: Next locate all the 2x1 pinheaders place and solder them like shown below.
- Page 5 ADDAC814 Assembly Guide STEP 5: Locate the 2x17 IDC header, notice the orientation of the indent, place and solder it like shown below. STEP 6: Locate the jacks below and cut the thinest leg like shown below. STEP 7: Next notice there are 2 jack types, threaded and non-threaded.
- Page 6 ADDAC814 Assembly Guide STEP 8: Before placing the jacks, using a cutter, trim the top of these pinheaders flush with the pcb. STEP 9: Here’s the different jack types locations, 3 threaded jacks on the top row and 3 on the bottom row, all other rows are non-threaded jacks.
- Page 7 ADDAC814 Assembly Guide STEP 10: For the remaining 2 jacks cut the extra support points on the side of the thin leg that was cut on step 6. This prevents shorting the pinheaders below the jacks. STEP 11: Place the remaining 2 jacks, place the front panel and tighten the 3 top and 3 bottom nuts.
- Page 8 ADDAC814 Assembly Guide STEP 12: Put together both pcbs and you’re done. Proceed to the User’s Guide to get info about connections. https://www.addacsystem.com/contents/productdownload/ADDAC814_MatrixMixer_UsersGuide_6302.pdf ADDAC SYSTEM page 8...
- Page 9 ADDAC814 Controls Assembly Guide March.2025 ADDAC SYSTEM page 9...
- Page 10 ADDAC814 Assembly Guide STEP 1: Locate and place the 2 pin pinheaders, proceed by soldering them. STEP 2: Locate and place the IDC connectors, notice the orientation of the indent. Proceed by soldering them. ADDAC SYSTEM page 10...
- Page 11 ADDAC814 Assembly Guide STEP 3: Locate and place all potentiometers, do not solder them just yet. ADDAC SYSTEM page 11...
- Page 12 ADDAC814 Assembly Guide STEP 4: Place the front panel and tighten the 6 nuts as shown below. STEP 5: Proceed by soldering all pots. Finish it by placing all the knobs. Proceed to the User’s Guide to get info about connections.
- Page 13 ADDAC814 Expansion Assembly Guide March.2025 ADDAC SYSTEM page 13...
- Page 14 ADDAC814 Assembly Guide STEP 1: Locate and place the IDC connectors, notice the orientation of the indent. Proceed by soldering them. ADDAC SYSTEM page 14...
- Page 15 ADDAC814 Assembly Guide STEP 2: Locate and place all potentiometers, do not solder them just yet. ADDAC SYSTEM page 15...
- Page 16 ADDAC814 Assembly Guide STEP 3: Place the front panel and tighten the 6 nuts as shown below. STEP 4: Proceed by soldering all pots. Finish it by placing all the knobs. Proceed to the User’s Guide to get info about connections.
