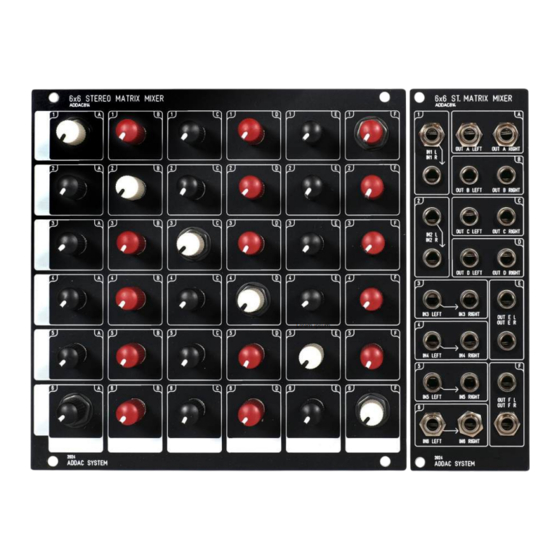

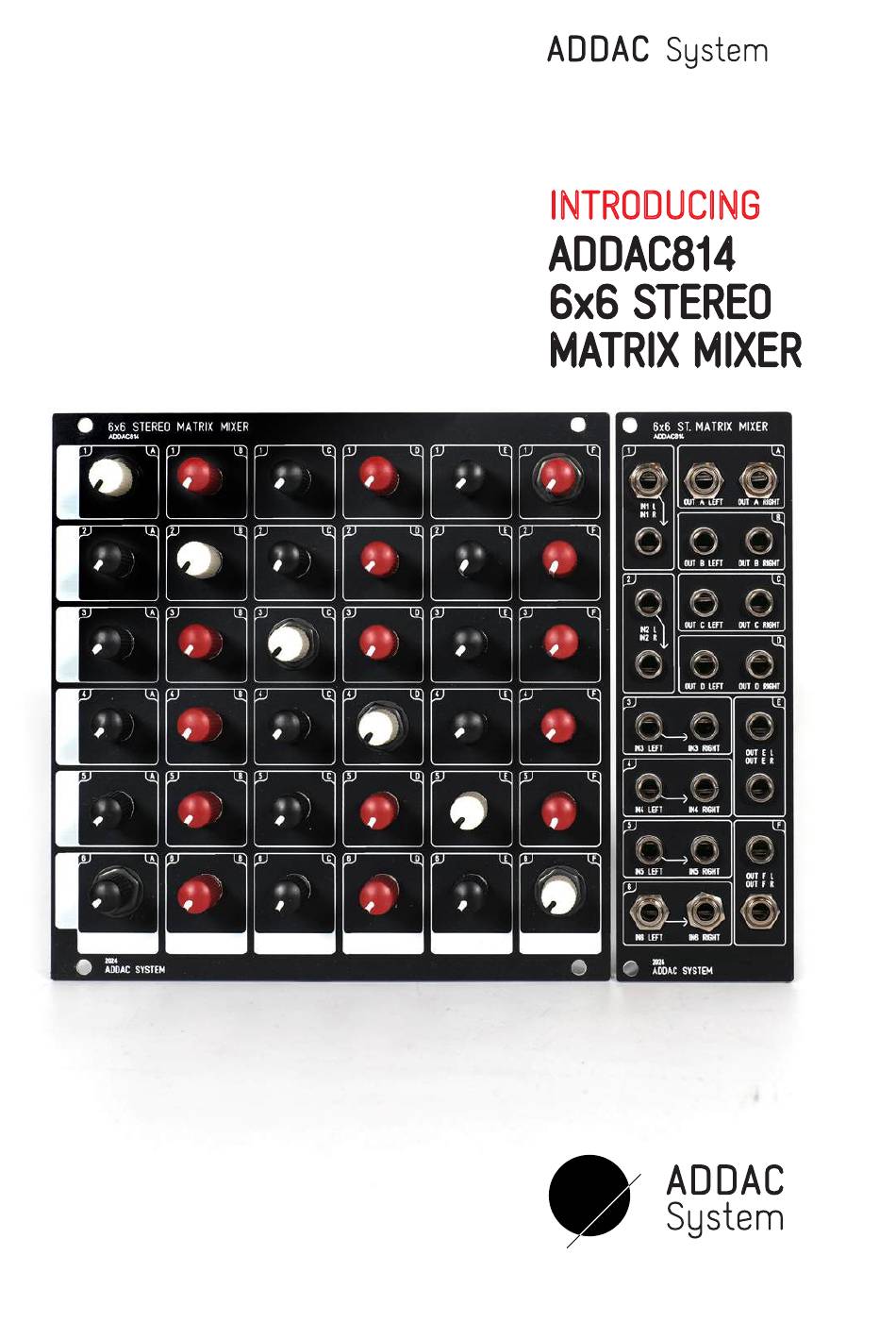

- Page 1 Instruments for Sonic Expression Est.2009 INTRODUCING ADDAC814 6x6 STEREO MATRIX MIXER Lorem ipsum USER’S GUIDE . REV01 October.2024 From Portugal with Love!
- Page 2 Welcome to: Tech Specs: ADDAC814 25HP + 8HP (33HP total) 6x6 STEREO MATRIX MIXER 4.5cm deep USER’S GUIDE 140mA +12V 140mA -12V Revision.01 October.2024 WELCOME 25HP We’re pleased to announce our take on matrix mixers, a 6x6 stereo matrix easily expandable to larger configurations.
- Page 3 ADDAC814 User’s Guide FEEDBACK Feedback diagonal This diagonal in matrix mixers routes the input X to the same X output. Depending on what is connected in those Ins/Outs it has the potential to generate feedbacks. For ex: if we plug a VCO into input 1 and use the output A as the mixer output then when raising the level of input 1 to output A this will simply act as a volume control of the VCO into the output.
-
Page 4: Signal Flow Diagram
ADDAC814 User’s Guide SIGNAL FLOW DIAGRAM INPUT 1 LEFT INPUT 1 LEVEL INPUT 1 LEVEL INPUT 1 LEVEL INPUT 1 LEVEL INPUT 1 LEVEL INPUT 1 LEVEL LEFT NORMALLED TO RIGHT > TO OUTPUT A > TO OUTPUT B > TO OUTPUT C >... -
Page 5: Routing Example
ADDAC814 User’s Guide ROUTING EXAMPLE This example shows the potential for complex chains with both parallel and series processing as well as some feedback action on a Delay > Reverb chain. ADDAC112 Granular DELAY REVERB DISTORTION COMPRESSOR INSTRUMENT Input ADDAC112... - Page 6 Depending on the desired configuration the user will require diferent modules as described in the next pages. ADDAC814 is sold as a pair: ADDAC814A + ADDAC814B ADDAC814A & ADDAC814C can be bought indvidually as expansions. ADDAC814...
- Page 7 OTHER CONFIGURATIONS 12x6 Configuration With an ADDAC814 + an Expander Set (ADDAC814A + ADDAC814C) one can expand the matrix to a 12x6 configuration. This will use 2 rows of your frame and take a 33HP space in each. In the 12x6 configuration the second jack panel outputs are not used.
- Page 8 ADDAC814 User’s Guide OTHER CONFIGURATIONS 6x12 Configuration With two ADDAC814 one can expand the matrix to a 6x12 configuration. This will take an overall of 66HP. In this configuration the second jack panel inputs are not used. ADDAC814 ADDAC814 (with no cream knobs)
- Page 9 ADDAC814 User’s Guide OTHER CONFIGURATIONS 12x12 Configuration With two sets of ADDAC814 plus a pair of ADDAC814C one can expand the matrix to a 12x12 configuration. This will use 2 rows of your frame and take a 58HP space in each. JUMPERS:...
- Page 10 OTHER CONFIGURATIONS 18x18 Configuration With 3 sets of ADDAC814 plus 6 ADDAC814C one can grow the matrix to a 18x18 configuration. This will take an overall of 83HP in each 3 rows. Custom ribbon cables will be necessary, contact us directly if planning to go this BIG.
- Page 11 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC814 USER’S GUIDE Revision.01 October.2024...
