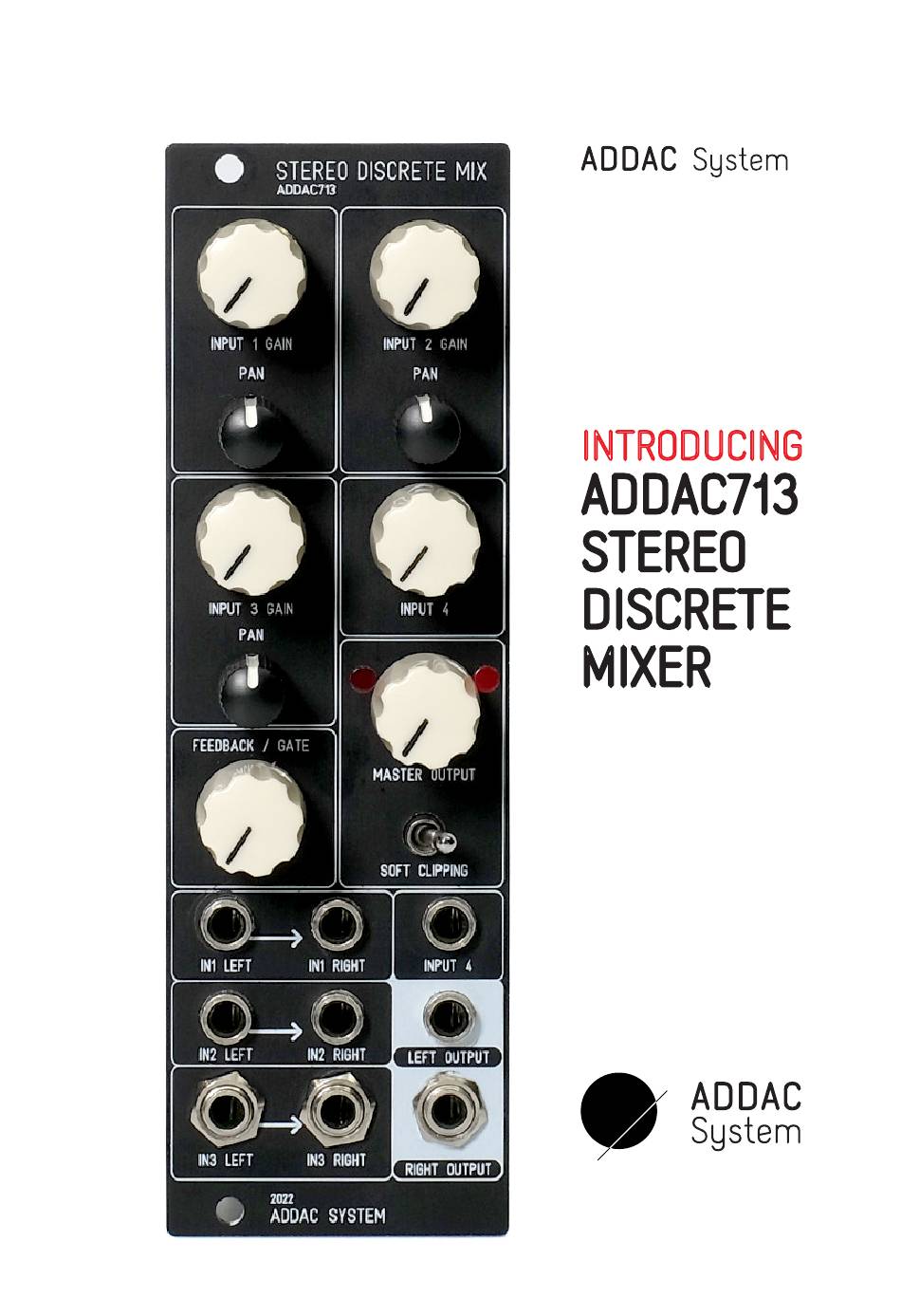

- Page 1 Instruments for Sonic Expression Est.2009 INTRODUCING ADDAC713 STEREO DISCRETE MIXER USER’S GUIDE . REV01 August.2022 From Portugal with Love!
- Page 2 Revision.01 August.2022 DESCRIPTION ADDAC713 is the stereo version of our 703 Discrete Mixer. Inspired by Moog’s CP3 mixer, this is a fully discrete analog mixer and it's not, by any means, your standard breakfast mixer, although it can behave like one.
-
Page 3: Master Mix
ADDAC713 User’s Guide ADDAC713 STEREO DISCRETE MIXER SIGNAL FLOW DIAGRAM CH1 LEFT INPUT PANNING GAIN CONTROL CONTROL CH1 RIGHT INPUT CH2 LEFT INPUT PANNING GAIN CONTROL CONTROL CH2 RIGHT INPUT SOFT CLIP & LEFT OUTPUT LOW PASS MASTER MIX CH3 LEFT INPUT... -
Page 4: Controls Description
ADDAC713 User’s Guide CONTROLS DESCRIPTION Channel 1 Gain control Channel 2 Gain control Channel 1 Pan control Channel 2 Pan control Channel 3 Gain control Channel 4 Gain control Channel 3 Pan control Master Gain control Feedback Gain control Soft Clipping + Low Pass... - Page 5 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC713 USER’S GUIDE Revision.01 August.2022...
