ADDAC814 Assembly Guide
STEP 3:

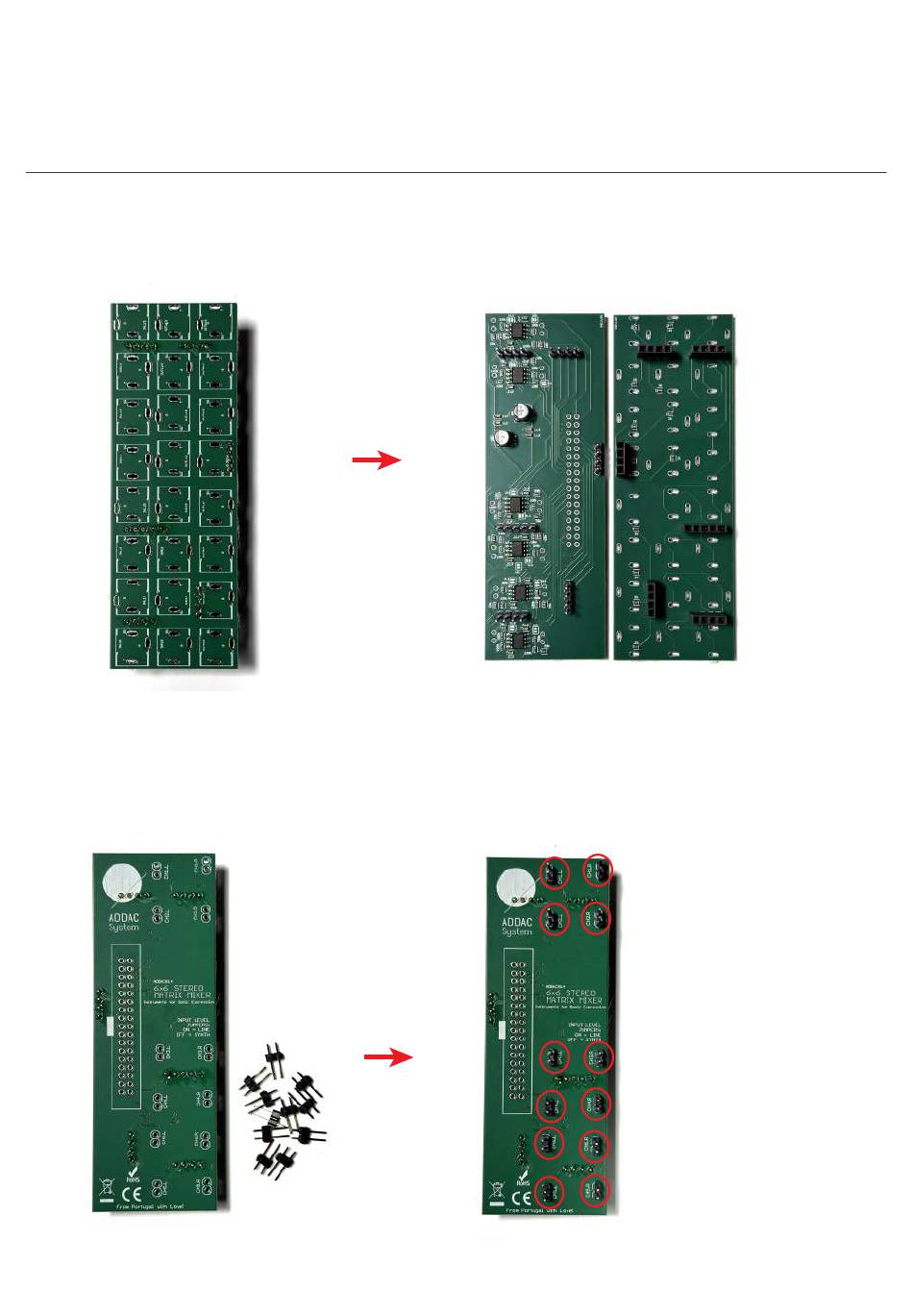

Place the top pcb on top of the pinheaders and solder the pinheaders on both pcbs.
Once soldered split them apart.
STEP 4:
Next locate all the 2x1 pinheaders place and solder them like shown below.
ADDAC SYSTEM
page 4
