Eleiko 3085601 Manual

Prestera cable attachment
Hide thumbs Also See for 3085601:
Table of Contents

Advertisement

Quick Links

Download this manual

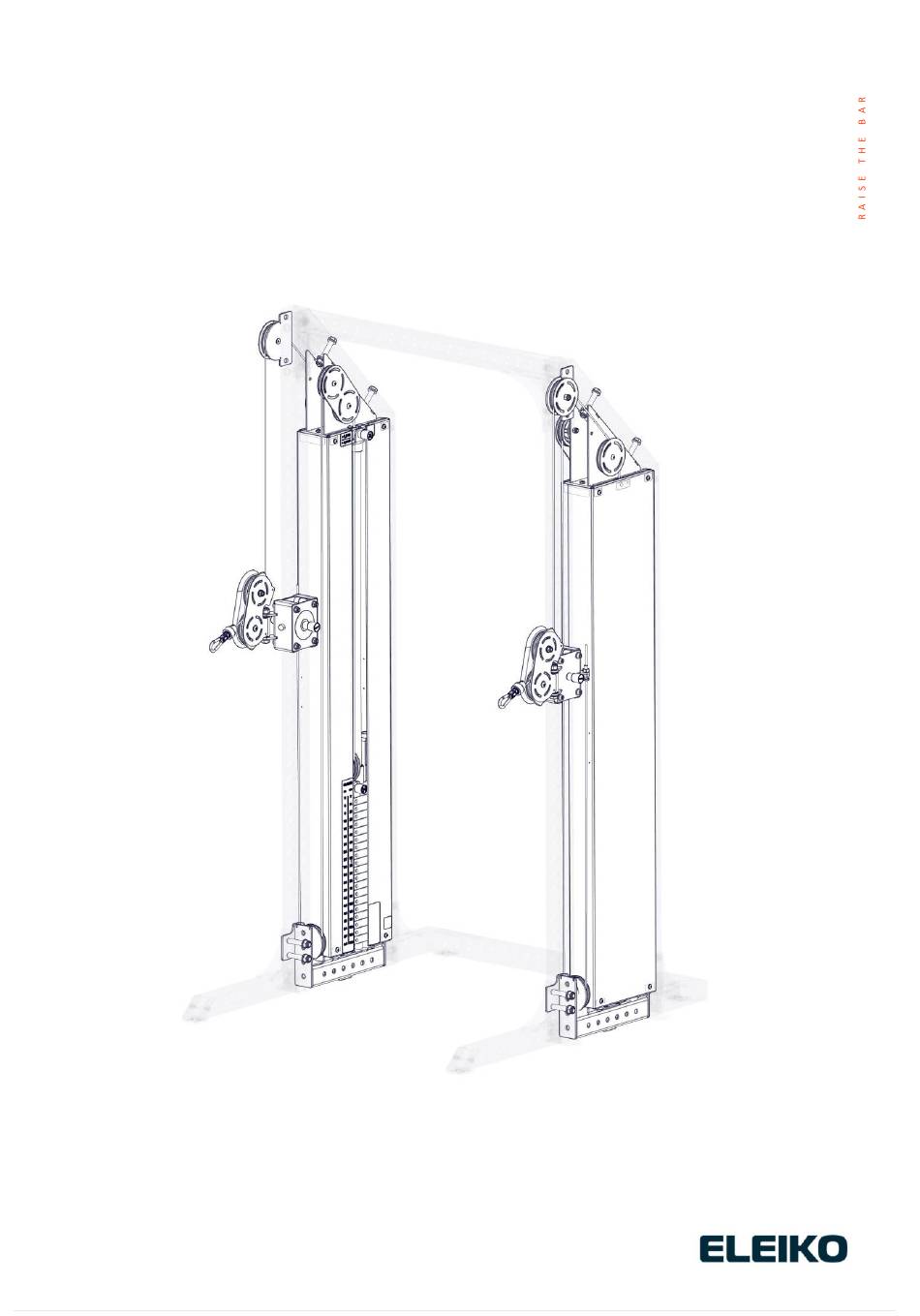

Art.no. 3085601, 3085709, 3085850
Eleiko Prestera Cable
Attachment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3085601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eleiko 3085601

Summary of Contents for Eleiko 3085601

  • Page 1 Art.no. 3085601, 3085709, 3085850 Eleiko Prestera Cable Attachment...

  • Page 3: Table Of Contents

    Content Read Before Installation and Use Caution Safety instructions Preventive Maintenance and Inspections Regularly Spare parts and service Warranty Warning labels Product Info Purpose General instructions for use Description Safety Area User Guide Required tools Spare part list List of components Preparation Assembly instructions Checklist...

  • Page 4: Read Before Installation And Use

    It is also the responsibility of the purchaser of ELEIKO products to assess the suitability of the floor, and to choose appropriate fasteners depending on floor type when using ELEIKO products that needs to be bolted to the ground.

  • Page 5: Preventive Maintenance And Inspections

    Warranty All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on welds on structural frame (NOT on moving parts) ·...

  • Page 6: Product Info

    Product Info Purpose Cable attachment that enables a variety of exercises in a Eleiko Prestera Rack. General Instructions for Use 1. Use the selector pin to select training weight. 2. Adjust height on carriage by pulling the pop-pin. 3. Switch to different handles depending on exercise.

  • Page 7: Safety Area

    Safety Area Before assembly, make sure you have enough space on all sides of the equipment to create a safety area. This safety area exists to avoid personal injury when using the equipment and need to follow the measurements set below. 1500 1500 User Guide...

  • Page 8: Spare Part List

    Spare Part List Contact Eleiko for spare parts. E-mail: info@eleiko.com | Phone: +46 35 17 70 70 3085601 a3 3085570 p38 2001624 2001485 2001445 3085466 p17 2000780-M12 3085570 p6 2001345 Ny bild, 2:1 2002288 2002289 (Tall Rack, 9m) Wire ø 3,3 mm, 8,2 m (9 m Tall Rack)

  • Page 9: List Of Components

    List of Components Box 3085601 for 120kg Box 3085850 for 90kg 1x 3085601 p25 3085601 p3 1x 3085601a15 2002288 1x 3085601a14 (120kg) 1x 3085850a2 (90kg) 3085601 a7 3085601 a8 3085601 a9 3085601 a6 3085601 a3 3085601 a1 3085601 a2 (120 kg)
  • Page 10 Box 3085709 Tall Rack 3085709p2 3085709p3 3085709a2 3085709a1 2002289 3085601 a7 3085601 a8 3085601 a9 3085601 a6 3085601 a3 3085601 a1 3085601 a2 (120 kg) 19x (120kg) 3085850 a1 (90kg) 2001590 3085601 p8 3085601 p9 3085816 3085601 p6 2001808 2001000...

  • Page 11: Preparation

    Preparation If you are going to install one of our SVR Insert Platforms, you need to do that before you install the Cable Attachment. If you already have a Prestera Rack Frame with one of these attachments below, they need to be removed before you install the Cable Attachment.
  • Page 12 You need to remove the Top Cover Plate in all places where a Cable Attachment is to be installed. Top Cover Plate Save the parts in case the Cable Attachment needs to be removed in the future. If you have a Prestera Double Half Rack Frame and wants to install a Cable Attachment, both front and back, you need to do the following.

  • Page 13: Assembly Instructions

    Assembly Instructions Assembly instructions is the same for all three (3085601, 3085709, 3085850). It is only certain components that differ in size and number, this is visible in the current steps. For left side installation, please proceed to page 14.
  • Page 14 Left side installation K6S M8x12 Washer M8...
  • Page 15 M16x100 Locking Nut M16 Washer M16...
  • Page 16 M16x100 Washer M16 Locking Nut M16...
  • Page 17 3085570 p33 3085570 p34 2002253 NOTE! The box contains one of these two.
  • Page 19 19x (120kg) 14x (90kg)
  • Page 20 Need to point forward Forward Need to point inwards Inwards...
  • Page 21 Washer M8 K6S M8x30 Inwards Washer M8 K6S M8x12...
  • Page 22 Remove nuts! Save for the next step. Remove screws, washers and nuts! Save for the next step. These two will no longer be in use. Install with existing nuts. Install with existing screws, washers (2 pcs) and nuts. Inwards Outwards...
  • Page 23 Remove Plate. Be careful not to lose any parts! Plate Install the Cable Trolley around the beam and put back the Plate. Tighten screws, the carriage should be easy to move. Need to point in this direction. Attach Warning Sticker!
  • Page 25 Locking Nut M16 Washer M16 M16x110...
  • Page 26 Remove Nut...
  • Page 27 Install wire! Wire The wire must go inside this pin!
  • Page 28 The wire must go inside these pins!
  • Page 29 The wire must go inside this pin!
  • Page 30 The wire must go inside this pin!
  • Page 31 Insert wire Wire lock Pull the wire through the wire lock, tighten one screw and cut the wire when you have this alignment.
  • Page 32 Make a mark Loosen this screw and on the wire pull out the wire Tighten this screw Put the wire back Peel off the wire's coating, from mark to mark Make a second mark Wire lock Tighten all three screws very firmly! Recommended torque, 3 Nm Tight screws keep the wire in place!
  • Page 33 K6S M8x12 Washer M8 Attach the Selector Pin to the right hole.
  • Page 34 K6S M8x12 Washer M8 The Cover Plate with numbers goes to the left. Make sure to install these two Cover Plates on the same side as the Selector Pin.
  • Page 35 Step 15 is only relevant if you have Prestera Storage Pins on the rack. Make sure these two sides face each other...
  • Page 36 Right side installation. K6S M8x12 Washer M8...
  • Page 37 M16x100 Locking Nut M16 Washer M16...
  • Page 38 M16x100 Washer M16 Locking Nut M16...
  • Page 39 3085570 p33 3085570 p34 2002253 NOTE! The box contains one of these two.
  • Page 41 19x (120kg) 14x (90kg)
  • Page 42 Need to point forward Forward Need to point inwards Inwards...
  • Page 43 Washer M8 K6S M8x30 Inwards Washer M8 K6S M8x12...
  • Page 44 Remove nuts! Save for the next step. Remove screws, washers and nuts! Save for the next step. These two will no longer be in use. Install with existing nuts. Inwards Install with existing screws, washers (2 pcs) and nuts. Outwards...
  • Page 45 Remove Plate. Be careful not to lose any parts! Plate Install the Cable Trolley around the beam and put back the Plate. Tighten screws, the carriage should be easy to move. Need to point in this direction. Attach Warning Sticker!
  • Page 47 Locking Nut M16 Washer M16 M16x110...
  • Page 48 Remove Nut...
  • Page 49 Wire The wire must go inside this pin!
  • Page 50 The wire must go inside these pins!
  • Page 51 The wire must go inside this pin!
  • Page 52 The wire must go inside this pin!
  • Page 53 Insert wire Wire lock Pull the wire through the wire lock, tighten one screw and cut the wire when you have this alignment.
  • Page 54 Make a mark on the wire Loosen this screw and pull out the wire Tighten this screw Put the wire back Peel off the wire's coating, from mark to mark Make a second mark Wire lock Tighten all three screws very firmly! Recommended torque, 3 Nm Tight screws keep the wire in place!
  • Page 55 K6S M8x12 Washer M8 Attach the Selector Pin to the left hole.
  • Page 56 K6S M8x12 Washer M8 The Cover Plate with numbers goes to the left. Make sure to install these two plates on the same side as The selector Pin.
  • Page 57 Step 15 is only relevant if you have Prestera Storage Pins on the rack. Make sure these two sides face each other...

  • Page 58: Checklist

    To ensure the validity of your product warranty, make sure to review this checklist carefully. The warranty will not be applied if the checklist is not followed. Product Checklist The wire must be inside these pins. The wire must be inside this pin.
  • Page 59 The top weight must be pointing in this direction. I have read and understood that Eleiko always recommends that this product should be bolted to the ground. If you are someone other than the buyer and who performed the installation, you guarantee that the buyer has been notified of this recommendation.
  • Page 60 Eleiko Group AB Klastorpsvägen 18 302 62 Halmstad Sweden +46 35 17 70 00 info@eleiko.com...
