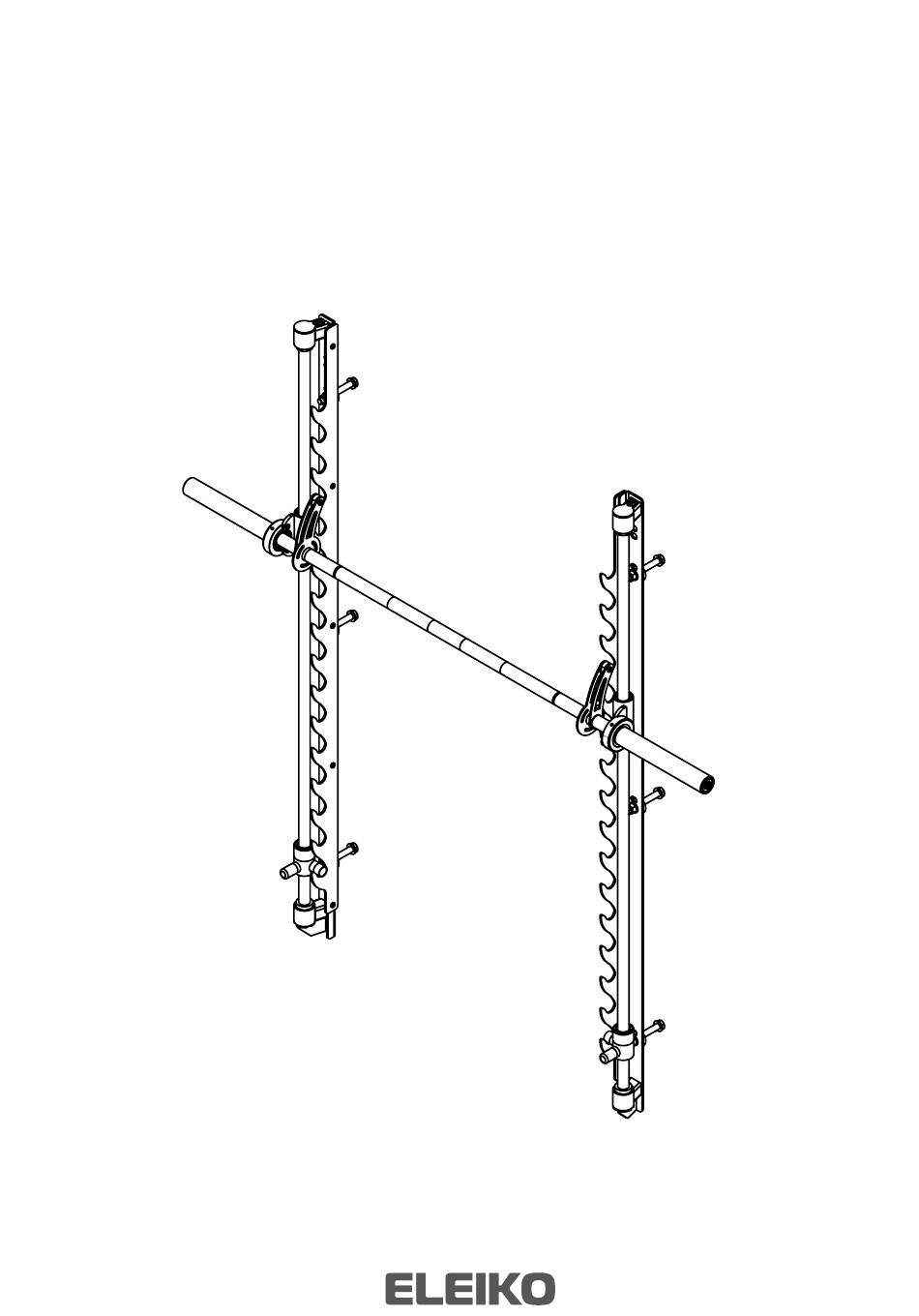

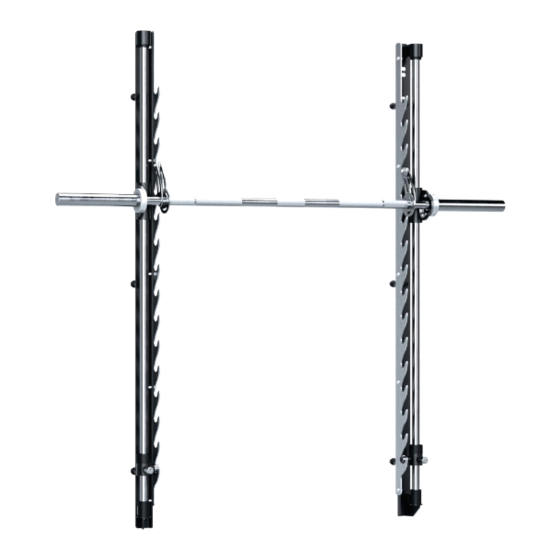

- Page 1 ELEIKO PRESTERA SMITH ATTACHMENT Art.no. 3085513...
- Page 2 CONTENTS Read before installation and use Safety instructions List of components Assembly instructions Tools needed User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty...
- Page 3 Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is secured to floor and installed by a licensed contractor or an Eleiko installer.
- Page 4 LIST OF COMPONENTS 3085513A1 3085514 2001385-L120 2001421 2001379 2001356 2000677-L20 - 4 -...
- Page 5 ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment. Take in account the accessibility to remove plates. Free area TOOLS NEEDED You need the following tools to assemble the equipment. Locking handel 1/2 Socket 1/2 24 mm Wrench 24 mm Allen key 5 mm...
- Page 6 loose screws 40 Nm/ 30ftlb - 6 -...
- Page 7 E-mail: info@eleiko.com | Phone: +46 35 17 70 70 WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts) Normal wear and tear do not fall under the 10-year warranty.
- Page 8 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
