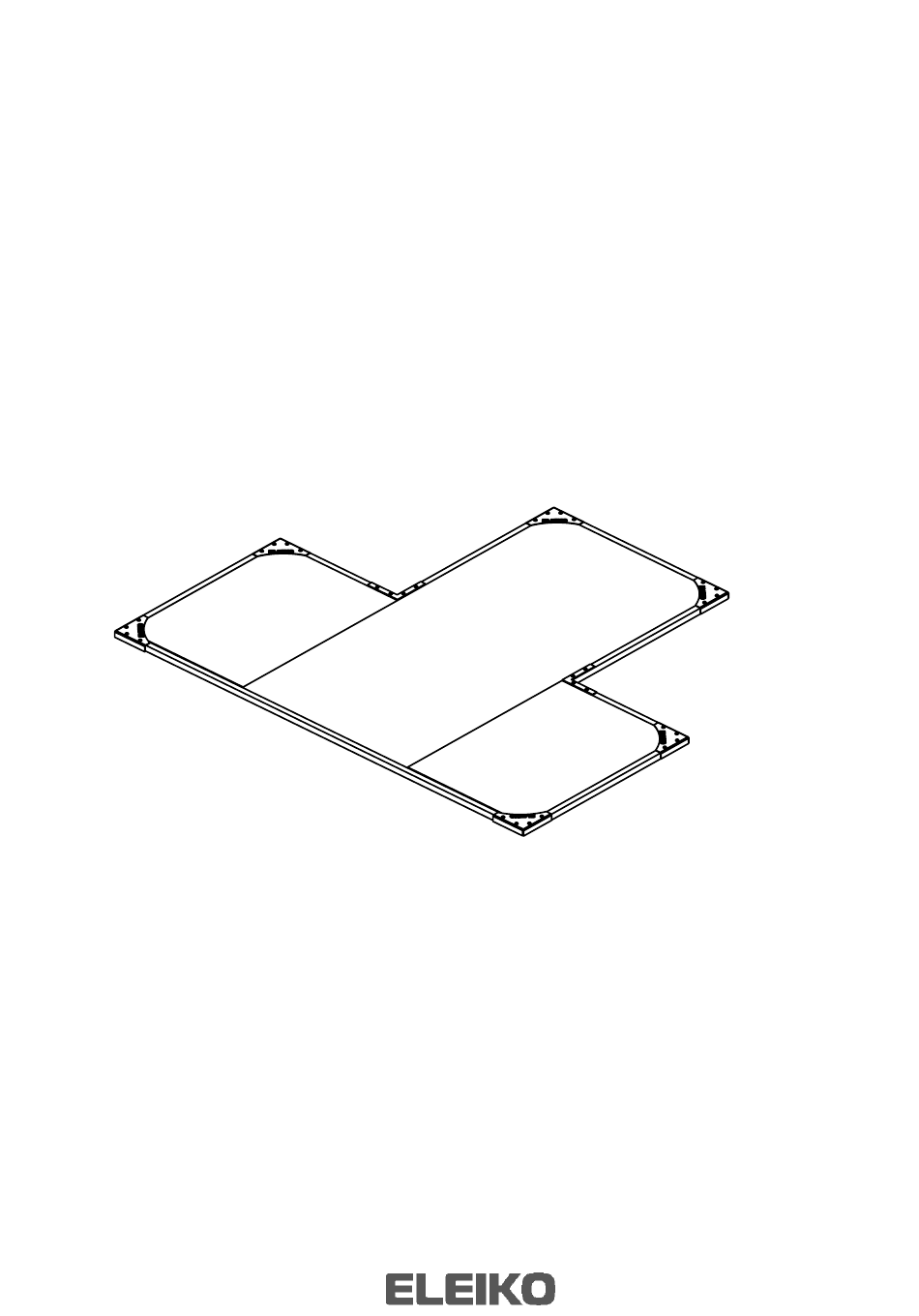

- Page 1 INSERT PLATFORM FOR ELEIKO XF 80 HOME RACK Art.no. 3085354...
- Page 2 ELEIKO-installer. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Insert platform for XF 80 Home Rack Product weight 100 kg / 220 lbs 2445x2070x30 mm Dimensions (L x W x H) 96,3x81,5x1,2 inch FOOTPRINT AREA Add sufficient clearance, not less than 1,0 m, on all sides. 1000 2446 1000... - Page 4 CONTENTS 2000404 3085381 3001384-04 3001745p4 2000747-L12 3001384-03 2000379 p8 2001191p1 2001191p2 Square tube Square tube Square tube 30x30x2 L=2368 30x30x2 L=996 30x30x2 L=996 2000379 p1 2000379 p2 2000375 p1 2000375 p6 Square tube Square tube Square tube Square tube 30x30x2 L=691 30x30x2 L=691 30x30x2 L=968 30x30x2 L=988...
-
Page 5: Required Tools
REQUIRED TOOLS Allen Key size 5 GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8 24 / 17,7... - Page 6 ASSEMBLY INSTRUCTIONS 3001384-04 2000747-L12 3001384-03 Loose screws! Screw Corner Bracket...
- Page 7 3001384-03 3001745p4 2000747-L12 Loose screws!
- Page 8 2000404 3085381...
- Page 9 2000379 p8 2001191p1 2001191p2 Square tube Square tube Square tube 30x30x2 L=2368 30x30x2 L=996 30x30x2 L=996 2000379 p1 2000379 p2 2000375 p1 2000375 p6 Square tube Square tube Square tube Square tube 30x30x2 L=691 30x30x2 L=968 30x30x2 L=988 30x30x2 L=691 2000375 p1 2001191p1 2001191p2...
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
