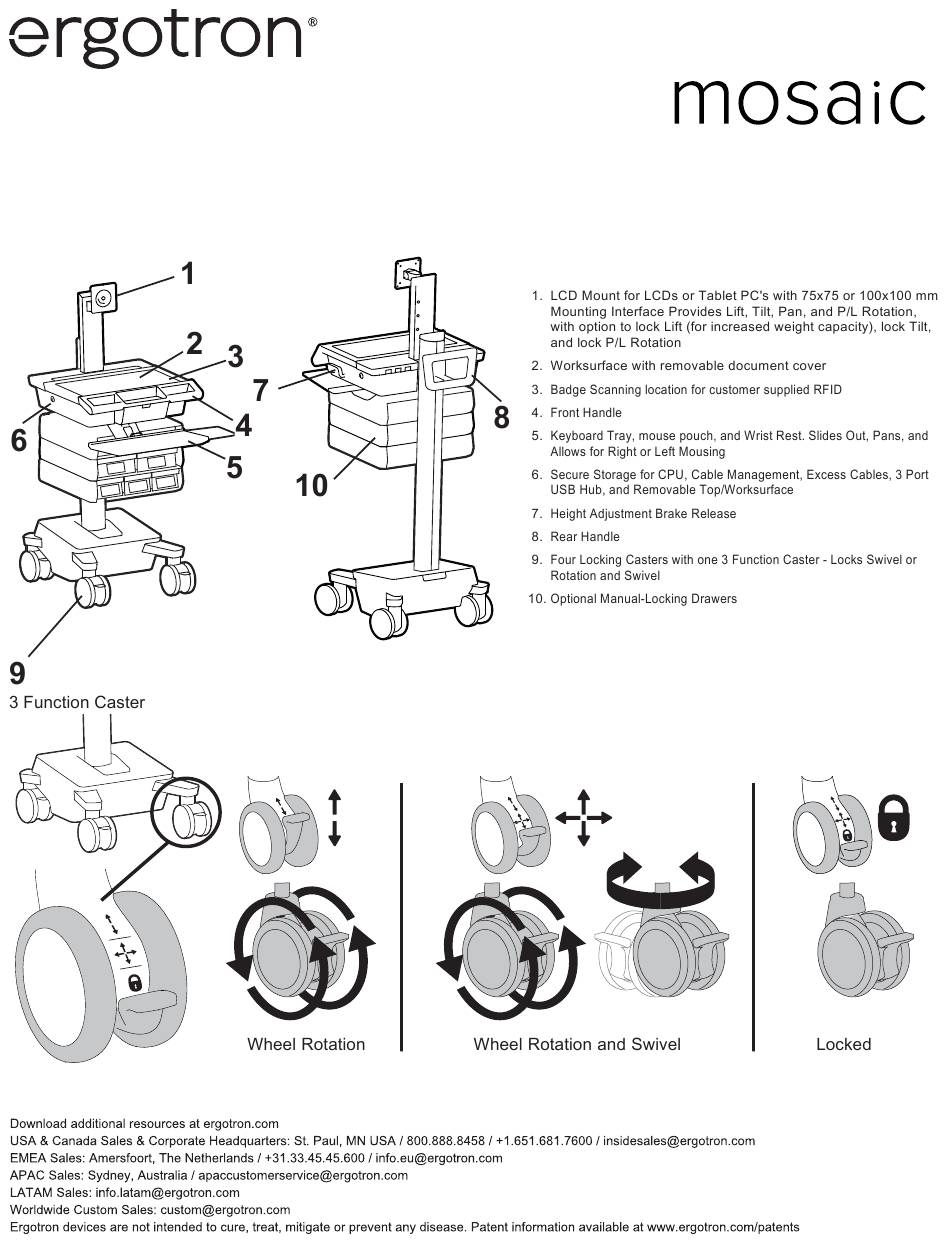

- Page 1 Dimensional Illustrations Mobile Workstation Non-Powered, LCD FEATURES © 2024 Ergotron, Inc. rev. 01/21/2025 DIM-MosaicLCD Content is subject to change without notification...
-
Page 2: Range Of Motion
Dimensional Illustrations Mobile Workstation Non-Powered, LCD RANGE OF MOTION WEIGHT CAPACITY © 2024 Ergotron, Inc. rev. 01/21/2025 DIM-MosaicLCD Content is subject to change without notification... - Page 3 49.3” 21.3” (1251 mm) (542 mm) Side View Side View 10” (255 mm) 7.4” (187 mm) 31.4” (798 mm) 24.2” (614 mm) Top View Side View © 2024 Ergotron, Inc. rev. 01/21/2025 DIM-MosaicLCD Content is subject to change without notification...
- Page 4 (478 mm) (90 mm) 16.7” (423 mm) 9” 20.5” (229 mm) (521 mm) 7.1” (181 mm) Top View Top View 8.1” 17.7” (207 mm) (450 mm) © 2024 Ergotron, Inc. rev. 01/21/2025 DIM-MosaicLCD Content is subject to change without notification...
- Page 5 Dimensional Illustrations Mobile Workstation Non-Powered, LCD DRAWERS © 2024 Ergotron, Inc. rev. 01/21/2025 DIM-MosaicLCD Content is subject to change without notification...
