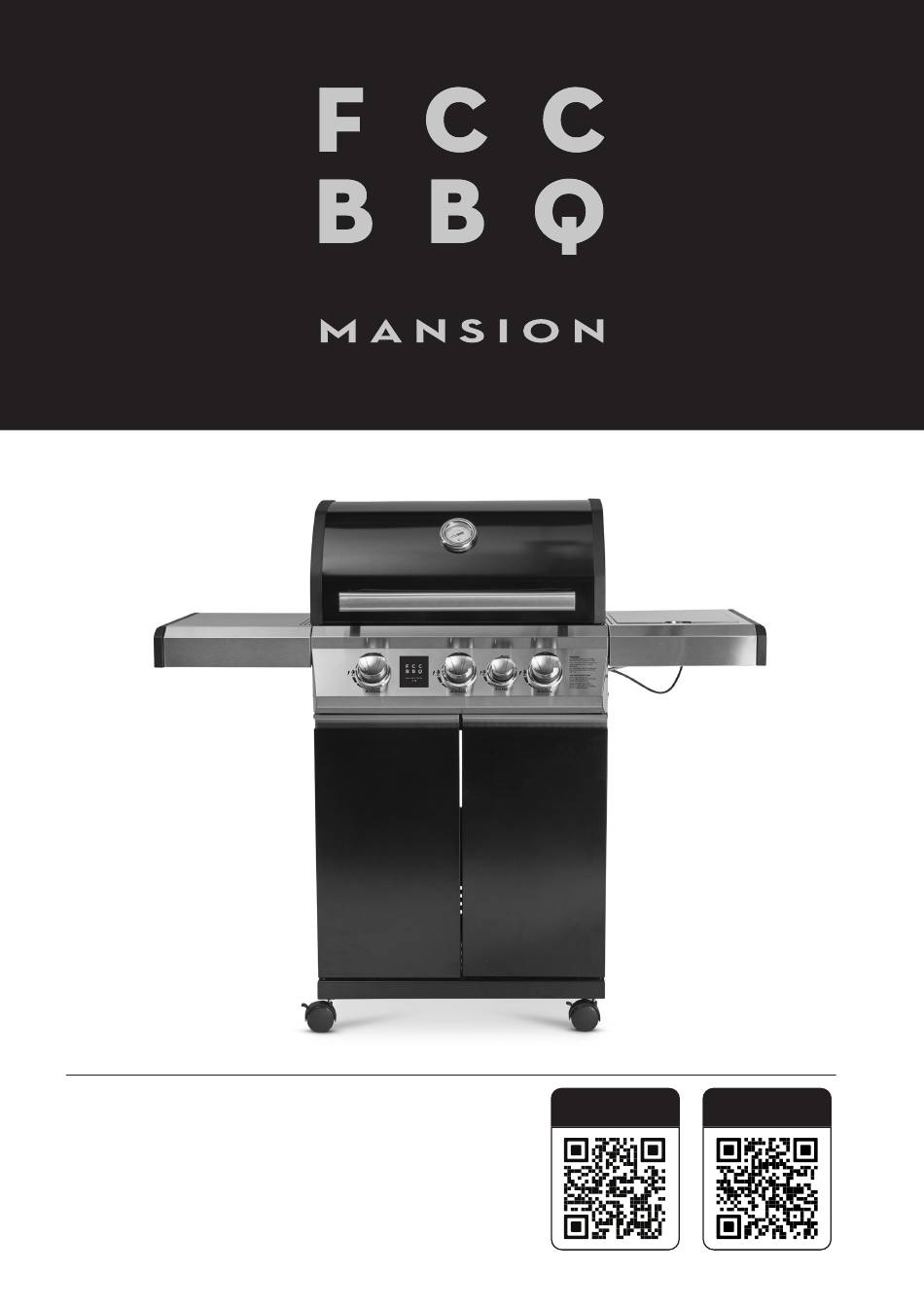

FCC-G-22620-31 / K113BDF3
USER MANUAL
Assembly, maintenance and safety
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE ASSEMBLY
INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR
BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!
3.1s
SCAN QR CODE AND
REGISTER BARBECUE FOR
EXTENDED WARRANTY
EX
SCAN QR CODE FOR
BARBECUE
ASSEMBLY VIDEO
WARRANTY:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FCC BBQ MANSION 3.1S
Summary of Contents for FCC BBQ MANSION 3.1S
- Page 1 3.1s FCC-G-22620-31 / K113BDF3 USER MANUAL SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE Assembly, maintenance and safety EXTENDED WARRANTY ASSEMBLY VIDEO WARRANTY: OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
-
Page 2: The Story Of Fcc
It´s fantastic flavors, it´s tough, it´s cool and it’s love for the most amazing cooking method in the world! 2023 will be the sixth year for FCC BBQ, and we´re very proud and humble for the success and what we as a company have achieved. - Page 3 Hans-Kristian, Mathias, Trond and Tor...
-
Page 4: Table Of Contents
C O N T E N T S 3.1s The story of FCC................... 2 Warnings ......................5 Technical Data ....................6 Read before assembly ................7 Parts List ......................8 Exploded Drawing ..................9 Assembly Instructions ................10 Regulator and Hose - Connecting the gas ........22 Check for leaks before using the barbecue ........23 Last Check ....................24 Lighting Instructions ...................25... -
Page 5: Warnings
W A R N I N G S ! ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED AREAS. -
Page 6: Technical Data
T E C H N I C A L D A T A 3.1s Total Heat input: 13.5 kW Gas consumption: 982gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 7: Read Before Assembly
If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. Transport damage to parts, varnish or enamel must be reported to the dealer or FCC BBQ before mounting and using the barbecue. If damage is reported after, there is a possibility that damage may have occurred during assembly. -
Page 8: Parts List
P A R T S L I S T 3.1s CODE DESCRIPTION THERMOMETER LID HANDLE WARMING RACK CAST IRON ROUND GRILL CAST IRON GRILL HEAT DISTRIBUTION PANEL / FLAME TAMERS TUBE BURNER GREASE CUP GREASE CUP HOLDER DRIP TRAY GRILL BODY ASSEMBLY SIDE BURNER LID SIDE BURNER COOKING GRID SIDE BURNER ASSEMBLY... -
Page 9: Exploded Drawing
E X P L O D E D D R A W I N G... -
Page 10: Assembly Instructions
A S S E M B L Y 3.1s Place a piece of cardboard (e.g the grill carton) on the floor to prevent scratching the unit and parts during assembly. Turn bottom panel of cabinet (19) upside down, and attach castors (22) with a wrench. - Page 11 A S S E M B L Y Fix rear panel (18) to the bottom and side panels using 4xscrew B Loosen the preassembled screws in front of the cart and slide on the triangiular support brackets (21), then tighten the screws.
- Page 12 A S S E M B L Y 3.1s Attach the cart front beam (16) to the side panels with 4x screw A. NOTE! TWO PERSONS IS RECOMMENDED WHEN LIFTING THE STOVE BODY Fix the thermometer (2) to the lid using the washer and wingnut.
- Page 13 A S S E M B L Y Secure the firebox assembly with 4x screw B. Screw in all the screws before tightening!
- Page 14 A S S E M B L Y 3.1s Loosen the pre-assembled screws on the left side of the firebox. Align the side table to the screws and slide it on. Then thighten the screws.
- Page 15 A S S E M B L Y Secure side tables by fixing 2x screw B wit 2x washer D from the insixe of the firebox.
- Page 16 A S S E M B L Y 3.1s Loosen the pre-assembled screws on the right side of the firebox. Align the side table to the screws and slide it on. Then thighten the screws. 2 xD Secure right side table with 2x screw B and 2x washer D from the inside of the firebox.
- Page 17 A S S E M B L Y Loosen the screws on sideburner. Slide the burner unit on the bracket and tighten the screws. Then attach it to the side burner table. Remember to attach the sideburner lighting wire .
- Page 18 A S S E M B L Y 3.1s The gas connection bracket and hose is attached behind the control panel with a cable tie. Cut the cable tie carefully with a scissor. Fix the bracket wit gas intake to the side panel using 1x screw A.
- Page 19 A S S E M B L Y Enter 2x hinge pins C into the bottom plate. To install the doors, align the hole under the door to the hinge on bottom panel. The hinge on top is spring-loaded. Press it up and align the hole on top of the door so the hinge snap into the hole.
- Page 20 A S S E M B L Y 3.1s Fix the grease cup holder to the drip tray with 2x screw A. Then slide the grease onto the cup holder. Insert the assembeled drip tray into the grill body on the rear side of the barbecue.
- Page 21 A S S E M B L Y Align the flame tamers on the grooves inside the firebox. Insert the cast iron grills. Place the warming rack. Add a regulator and hose (sold separately). Do not use the bbq while the gas cylinder is inside the cabinet.
-
Page 22: Regulator And Hose - Connecting The Gas
C O N N E C T I N G G A S 3.1s FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BARBECUE AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the barbecue. Tighten well. •... -
Page 23: Gas Leak Test
FIXED INSTALLATIONS AND YOUR BARBECUE. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED. -
Page 24: Final Check
L A S T C H E C K 3.1s PLACEMENT OF THE BARBECUE • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. •... -
Page 25: Lighting Instructions
L I G H T I N G I N S T R U C T I O N S LIGHTING INSTRUCTIONS Set all control knobs to off. Open the lid. The lid must always be open when lighting the barbecue. Open the gas valve of the gas cylinder. -
Page 26: Maintenance
M A I N T E N A N C E 3.1s KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. ning down on flame tamers and on the grease tray. IF A GREASE FIRE OCCUR Do not leave the barbecue when it is lit and close In case of grease fire, close the gas supply on the the gas supply as soon as possible if there is a sign of... -
Page 27: Plastic Parts
M A I N T E N A N C E CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be performed Grill grate and flame tamers are brushed regularly when the barbecue is cold. Make sure that the with a grill brush for rough cleaning. -
Page 28: Advice, Tips And Safety
• We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must be completely dry and cold before applying the coating. -
Page 29: Troubleshooting
T R O U B L E S H O O T I N G PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty... -
Page 30: Warranty Claim
3.1s 3.1s WARRANTY CLAIM This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
