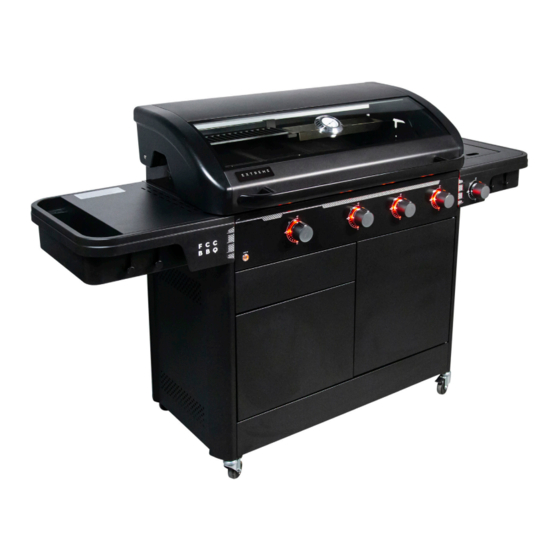

Instructions and maintenance
MANUAL
FCC-G-20290-41
/ BW-GK44110
!
OUTDOOR USE ONLY
READ THE OPERATING INSTRUCTIONS
BEFORE USING THE APPLIANCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extreme 4.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FCC BBQ Extreme 4.1

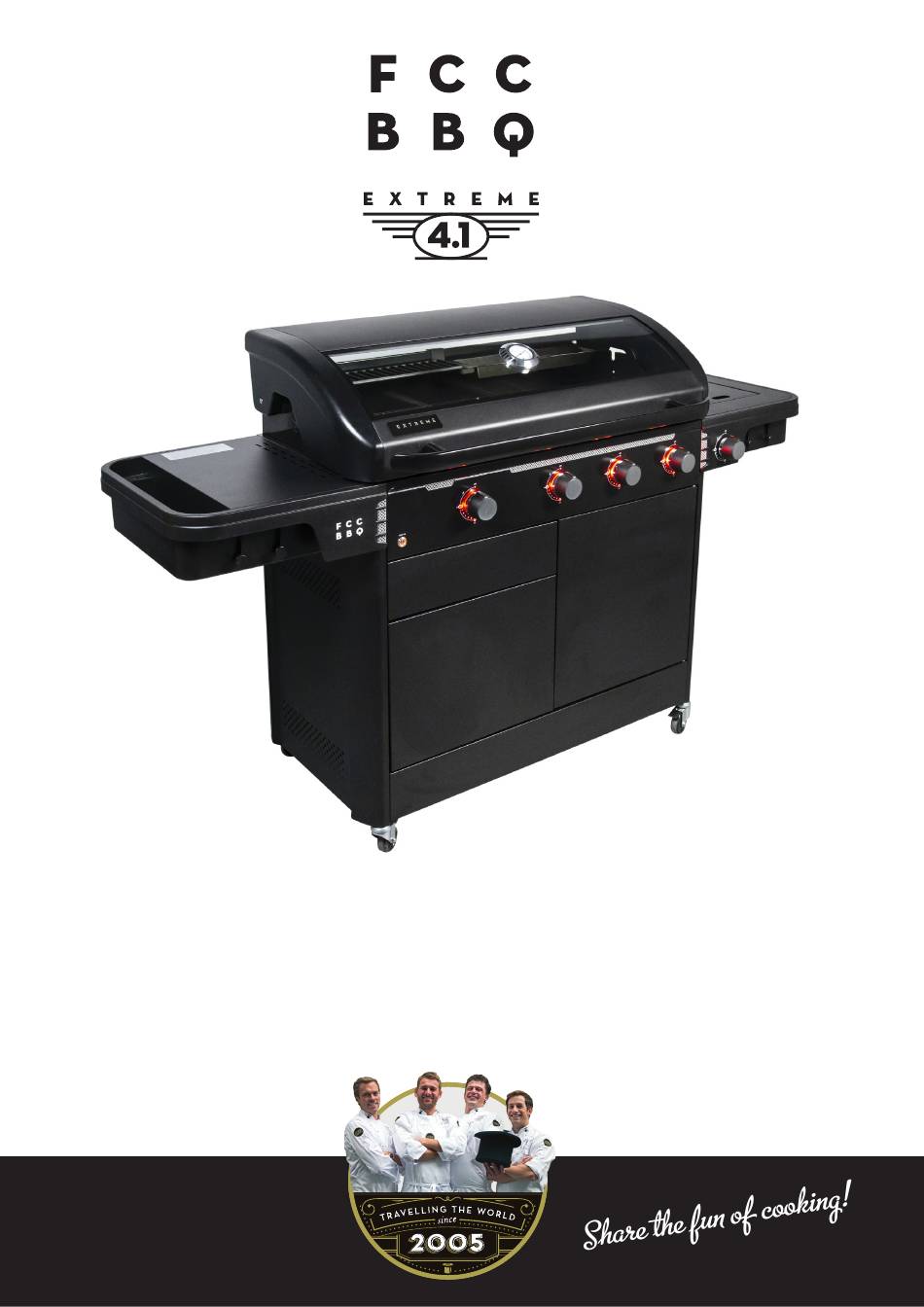

  • Page 1 Instructions and maintenance MANUAL FCC-G-20290-41 / BW-GK44110 OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
  • Page 2: Table Of Contents

    Contents Warnings Technical data Parts list Assembly Regulator and hose Check for leaks Lighting instructions Last check Maintenance Troubleshooting Consumer contact...
  • Page 3: Warnings

    Warnings • THIS PRODUCT IS DESIGNED AS A HOME APPLICANCE AND NOT SUITABLE FOR PROFFESIONAL USE IN A RESTAURANT OR SIMILAR. • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. •...
  • Page 4: Technical Data

    Technical Data Tekniske data Total Heat input: 18.3 kW Gas consumption: (butane 1330 g/h, propane 1306 g/h) Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region.
  • Page 5: Parts List

    Parts list Gas grill assembly x 1 Door x 1 Screw M6x15 x 69 pcs Cooking grate support x 1 Grease cup x 1 Washer ø 6 x 2 pcs Cooking grate x 2 Left rear corner brace x 1 Screw M5x12 x 16 pcs Warming rack support x 1 Heat resistant drawer cover x 1...
  • Page 6: Assembly

    Assembly Before beginning assembly of product make sure all parts are present. Compare parts with package contents list. If any parts is missing or damaged, do not attempt to assembly the product. Remove all packing material from the grill. A M6x15 x 8 pcs A M6x15 x 8 pcs...
  • Page 7 Assembly A M6x 15 x 10 pcs A M6x15 x 6 pcs...
  • Page 8 Assembly A M6x15 x 12 pcs...
  • Page 9 Assembly F M4x12 x 2 pcs...
  • Page 10 Assembly A M6x15 x 11 pcs...
  • Page 11 Assembly A M6x15 x 4 pcs...
  • Page 12 Assembly C M5x12 x 12 pcs M5*12 x 10 pcs M4*10 x 4 pcs...
  • Page 13 Assembly...
  • Page 14 Assembly...
  • Page 15 Assembly M6x15 x 6 pcs ø6 x 2pcs TWO PERSONS IS RECOMMENDED WHEN LIFTING THE STOVE BODY...
  • Page 16 Assembly A M6x15 x 4 pcs These M6 screw are pre-assembled...
  • Page 17 Assembly M4x12 x 2 pcs M6x12 x 3 pcs Tighten first, then screw Plug in the ignition wire The wrench is stuck to the hexagonal position of the side burner valve, and screw it by hand.
  • Page 18 Assembly...
  • Page 19 Assembly...
  • Page 20 Assembly...
  • Page 21 Assembly Fix the hose regulator...
  • Page 22: Regulator And Hose

    Regulator and hose Follow these instructions carefully to avoid serious damage your barbecue and causing injury to yourself and to property. HOSE • Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do not overtighten. •...
  • Page 23: Check For Leaks

    Check for leaks Before use please check for leaks Never check for leaks with a naked flame, always use a soapy water solution 1. Make a mixed solution (water and liquid detergent / soap). 2. Ensure that there are no naked flames, heat sources and cigarettes in the vicinity when performing a leak test.
  • Page 24: Lighting Instructions

    Lighting Instructions LIGHTING INSTRUCTIONS 1. Set all control knobs to off (red bar pointing upwards). 2. Open the lid. The lid must always be open when lighting the grill. 3. Open the gas valve of the gas cylinder. 4. Push the knob of the desired burner in and turn it to the left. The burner will ignite automatically.
  • Page 25: Last Check

    Last Check PLACEMENT OF THE BBQ • Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the BBQ under a roof or overhang. •...
  • Page 26: Maintenance

    Maintenance Keep the barbecue body and the accessories clean to avoid grease fire. IN CASE OF GREASE FIRE CLEANING In case of grease fire, close the gas supply and All cleaning and maintenance should be disconnect the controller and wait until the fire carried out when the appliance is cool and goes out by itself.
  • Page 27: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Gas bottle is empty Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose Electrode is broken or dirty Clean the electrode BURNER WILL NOT LIGHT Ignition knob is broken...
  • Page 28: Consumer Contact

    Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
