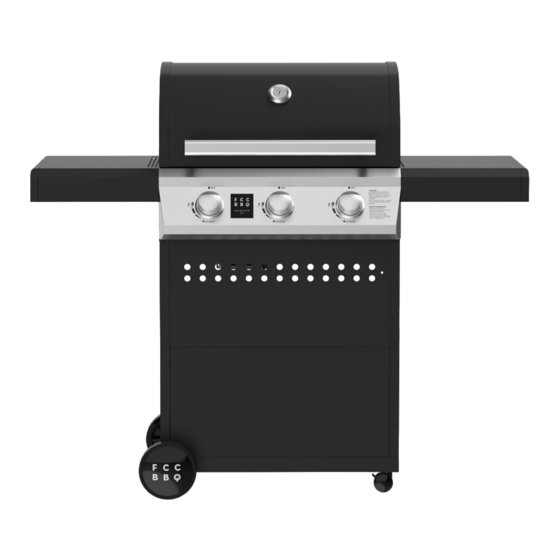

FCC BBQ Mansion 3.0 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

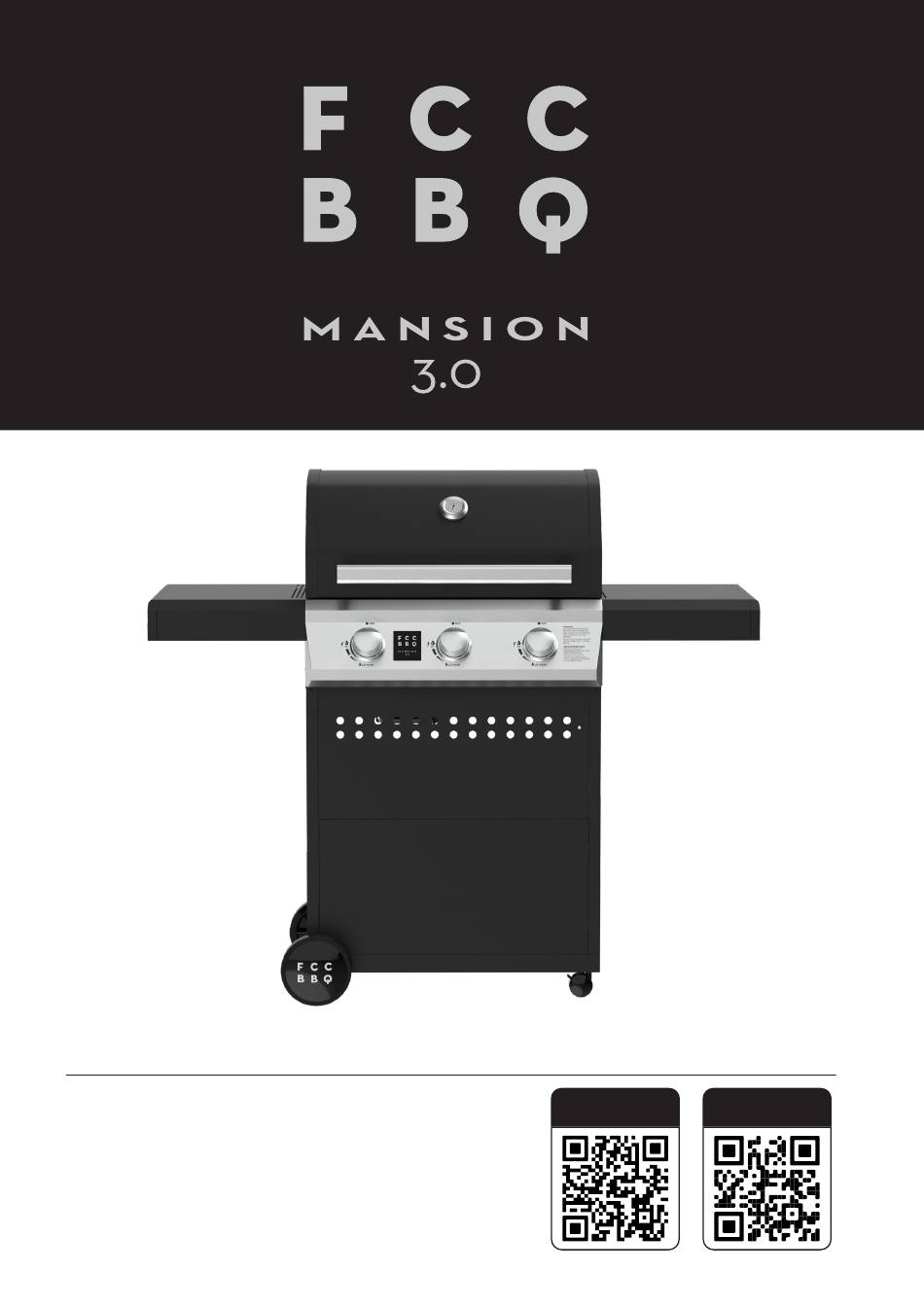

FCC-G-24590-30 / K113BJDF
USER MANUAL
Assembly, maintenance and safety
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE ASSEMBLY
INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR
BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!
SCAN QR CODE AND
SCAN QR CODE FOR
REGISTER BARBECUE FOR
EXTENDED WARRANTY
EX
WARRANTY:
BARBECUE
ASSEMBLY VIDEO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mansion 3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FCC BBQ Mansion 3.0

Summary of Contents for FCC BBQ Mansion 3.0

  • Page 1 FCC-G-24590-30 / K113BJDF USER MANUAL SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE Assembly, maintenance and safety EXTENDED WARRANTY ASSEMBLY VIDEO WARRANTY: OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!

  • Page 2: The Story Of Fcc

    It´s fantastic flavors, it´s tough, it´s cool and it’s love for the most amazing cooking method in the world! 2023 will be the sixth year for FCC BBQ, and we´re very proud and humble for the success and what we as a company have achieved.
  • Page 3 Hans-Kristian, Mathias, Trond and Tor...

  • Page 4: Table Of Contents

    C O N T E N T S The story of FCC................... 2 Warnings ......................5 Technical Data ....................6 Read before assembly ................7 Parts List ......................8 Exploded Drawing ..................9 Assembly Instructions ................10 Regulator and Hose - Connecting the gas ........22 Check for leaks before using the barbecue ........23 Last Check ....................24 Lighting Instructions ...................25 Maintenance ....................26...

  • Page 5: Warnings

    W A R N I N G S ! ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED AREAS.

  • Page 6: Technical Data

    T E C H N I C A L D A T A OUTDOOR GAS GRILL USE AND CARE MANUAL Total Heat input: 10,5kW Gas consumption: 1236 gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic MODEL NO.K2113JDF Region.

  • Page 7: Read Before Assembly

    If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. Transport damage to parts, varnish or enamel must be reported to the dealer or FCC BBQ before mounting and using the barbecue. If damage is reported after, there is a possibility that damage may have occurred during assembly.

  • Page 8: Parts List

    P A R T S L I S T CODE DESCRIPTION LID ASSEMBLY THERMOMETER LID HANDLE WARMING RACK CAST IRON GRILL WITH MGS OPENING FLAME TAMER GREASE CUP GREASE CUP HOLDER DRIP TRAY RIGHT SIDE TABLE CART FRONT PANEL (UPPER) CART SUPPORT CART FRONT PANEL (LOWER) WHEEL AXIS...

  • Page 9: Exploded Drawing

    E X P L O D E D D R A W I N G 2. Exploded View...

  • Page 10: Assembly Instructions

    A S S E M B L Y Place a piece o cardboard from the box to avoid scratches. Turn bottom panel of cabinet part 15 upside down, and push castors parts 16 in place. Thread the wheel axis part 14 through the holes in the bottom plate pat 15. Put the wheels part 18 each end of the axis and secure them with R-Clip C.
  • Page 11 A S S E M B L Y Fix the legs parts 20 to the bottom plate using 8x screw B. Fix the cart beam part 20 to the top of the legs with 8x screw A.
  • Page 12 A S S E M B L Y Fix the lower front panel part 13 to the legs using 4x screw B. Fix the upper front panel part 11 to the legs and lower panel using 6x screw B.
  • Page 13 A S S E M B L Y Fix the cart support parts 12 to the rear of the trolley with 4x screw B. Fix the thermometer (2) to the lid using the washer and wingnut. Push the knobs for main burners part 21 onto the control panel.
  • Page 14 A S S E M B L Y Secure the firebox assembly with 4x screw B. Screw in all the screws before tightening!
  • Page 15 A S S E M B L Y Loosen the pre-assembled screws on the left side of the firebox. Align the side table to the screws and slide it on. Then thighten the screws.
  • Page 16 A S S E M B L Y Secure side tables by fixing 2x screw B wit 2x washer D from the inside of the firebox.
  • Page 17 A S S E M B L Y Loosen the pre-assembled screws on the right side of the firebox. Align the side table to the screws and slide it on. Then thighten the screws. Secure side tables by fixing 2x screw B wit 2x washer D from the inside of the firebox.
  • Page 18 A S S E M B L Y Fix the grease cup holder part 8 to the drip tray part 9 with 2x screw A. Then slide the grease cup onto the cup holder. Insert the assembled drip tray into the firebox on the rear side of the bbq.
  • Page 19 A S S E M B L Y The gas connection bracket and hose is attached behind the control panel with a cable tie, please cut the cable tie carefully with a scissor. Fix the bracket wit gas intake to front panel using 1x screw A.
  • Page 20 A S S E M B L Y Align the flame tamers on the grooves inside the firebox. Insert the cast iron grills. Place the warming rack.
  • Page 21 A S S E M B L Y Add a regulator and hose (sold separately). Do not use the barbecue while the gas cylinder is inside the cabinet. Perform a leak test before using the grill. Read more about how to perform a leak test on next page.

  • Page 22: Regulator And Hose - Connecting The Gas

    C O N N E C T I N G G A S FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BARBECUE AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the barbecue. Tighten well. •...

  • Page 23: Check For Leaks Before Using The Barbecue

    FIXED INSTALLATIONS AND YOUR BARBECUE. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED.

  • Page 24: Last Check

    L A S T C H E C K PLACEMENT OF THE BARBECUE • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. •...

  • Page 25: Lighting Instructions

    L I G H T I N G I N S T R U C T I O N S LIGHTING INSTRUCTIONS The lid must be open when lighting the burner. Do not stand with your face directly over the gas grill when lighting it.

  • Page 26: Maintenance

    M A I N T E N A N C E KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. Do not leave the barbecue when it is lit and close IF A GREASE FIRE OCCUR the gas supply as soon as possible if there is a sign of In case of grease fire, close the gas supply on the a grease fire.
  • Page 27 M A I N T E N A N C E CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be performed Grill grate and flame tamers are brushed regularly when the barbecue is cold. Make sure that the with a grill brush for rough cleaning.

  • Page 28: Advice, Tips And Safety

    • We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must be completely dry and cold before applying the coating.

  • Page 29: Troubleshooting

    T R O U B L E S H O O T I N G PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty...

  • Page 30: Multi Grill System

    A C C E S S O R I E S SOLD SEPARATELY, AVAILABLE AT YOUR BBQ DEALER MULTI GRILL SYSTEM GIV E S YOU N EW WAYS TO ENJ OY YOUR BARBECUE TIME ! Using various MGS accessories like a wok, frying pan, pizza stone, cooking plate, and searing grid on a barbecue can significantly expand your outdoor cooking options.
  • Page 31 A C C E S S O R I E S SOLD SEPARATELY, AVAILABLE AT YOUR BBQ DEALER SEARING GRID COOKING PLATE FRYING PAN PIZZA STONE/GLAZED PIZZA STONE Enamelled cast iron wok which cooks the food energy efficiently and preserves the nutritional content.

  • Page 32: Consumer Contact

    WARRANTY CLAIM This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
