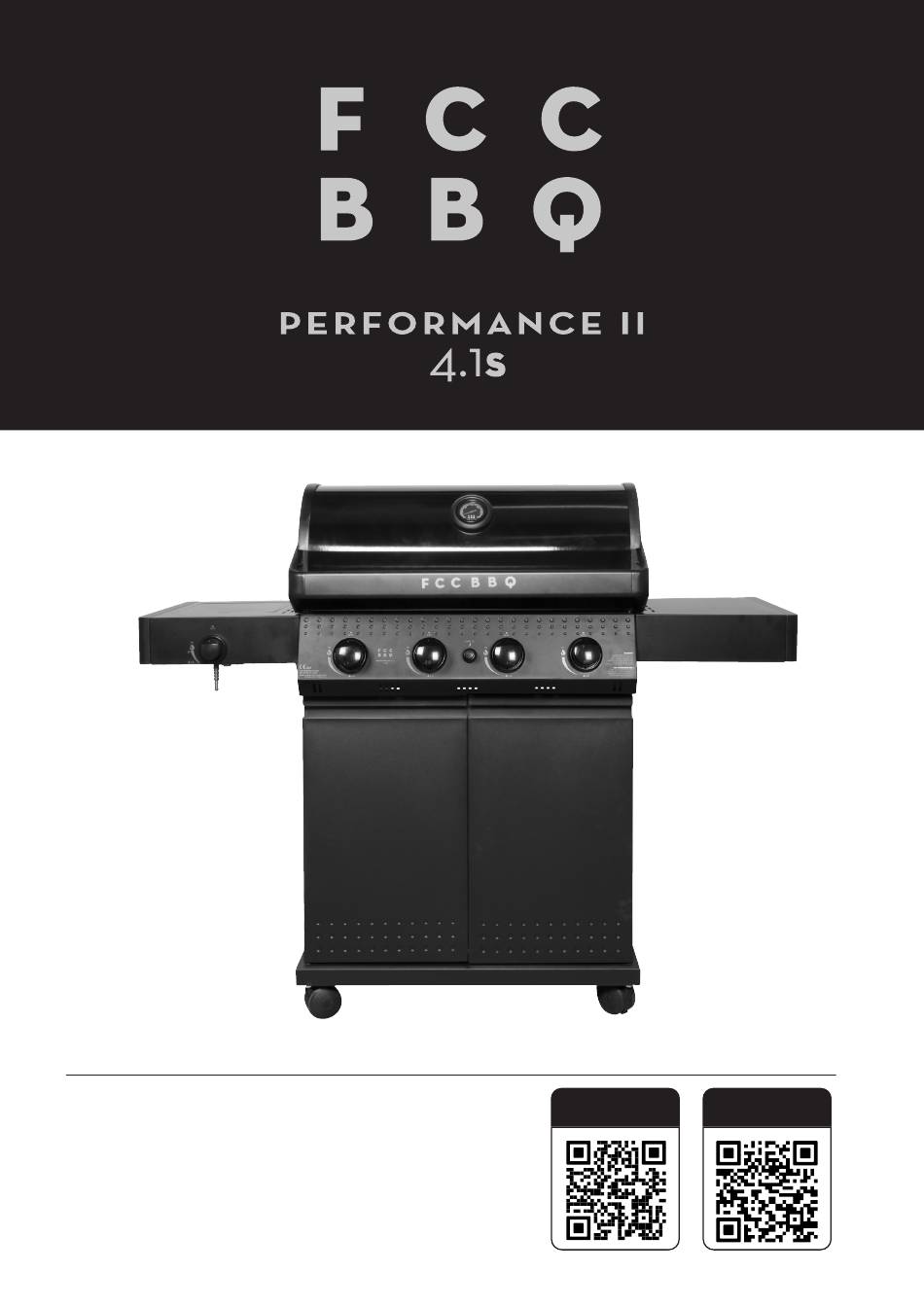

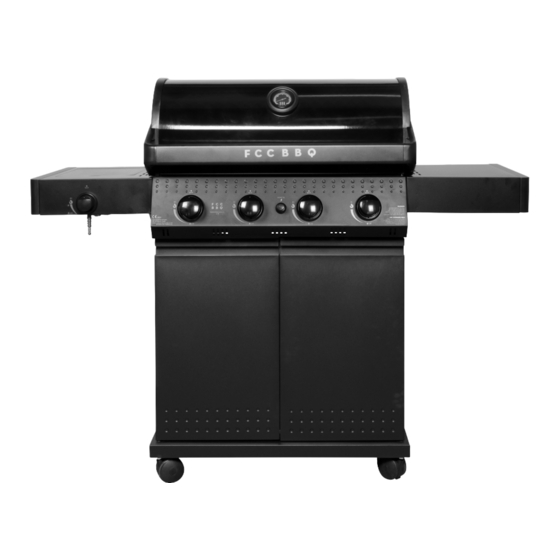

FCC-G-24230-41 / GD4843S-M
USERS MANUAL:
Assembly, maintenance and safety
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE ASSEMBLY
INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR
BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!
SCAN QR CODE AND
SCAN QR CODE FOR
REGISTER BARBECUE FOR
EXTENDED WARRANTY
EX
WARRANTY:
BARBECUE
ASSEMBLY VIDEO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FCC BBQ PERFORMANCE II 4.1s
Summary of Contents for FCC BBQ PERFORMANCE II 4.1s
- Page 1 FCC-G-24230-41 / GD4843S-M USERS MANUAL: SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE Assembly, maintenance and safety EXTENDED WARRANTY ASSEMBLY VIDEO WARRANTY: OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
-
Page 2: The Story Of Fcc
It´s fantastic flavors, it´s tough, it´s cool and it’s love for the most amazing cooking method in the world! 2024 will be the seventh year for FCC BBQ, and we´re very proud and humble for the success and what we as a company have achieved. - Page 3 Hans-Kristian, Mathias, Trond and Tor...
-
Page 4: Table Of Contents
C O N T E N T S PERFORMANCE II 4.1s The story of FCC................... 2 Warnings ......................5 Technical Data ....................6 Read before assembly ................7 Parts List ......................8 Exploded Drawing ..................9 Assembly Instructions ................10 Regulator and Hose - Connecting the gas ........22 Check for leaks before using the barbecue ........23 Last Check ....................24 Lighting Instructions ...................25... -
Page 5: Warnings
W A R N I N G S ! ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED AREAS. -
Page 6: Technical Data
T E C H N I C A L D A T A PERFORMANCE II 4.1s Total Heat input: 16.7kW (main burner 10.5kW + sear burner 3kW= 13.5 kW + side burner 3.2 kW Gas consumption: 1215 gram/hour (main burner/sear: 982 g/h + side burner: 233 g/h) Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. -
Page 7: Read Before Assembly
If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. Transport damage to parts, varnish or enamel must be reported to the dealer or FCC BBQ before mounting and using the barbecue. If damage is reported after, there is a possibility that damage may have occurred during assembly. -
Page 8: Parts List
P A R T S L I S T PERFORMANCE II 4.1s CODE DESCRIPTION MAIN BURNER ASSEMBLY FLAME TAMER WARMING RACK CAST IRON GRILL MULTIFUNCTION CAST IRON COOKING GRILL MULTIFUNCTION CAST IRON ROUND COOKING GRILL SIDE BURNER WELD ASSEMBLY IDE BURNER DECORATION BOARD DECORATION RING SIDE BURNER SIDE BURNER VALVE ASSEMBLY... -
Page 9: Exploded Drawing
E X P L O D E D D R A W I N G... -
Page 10: Assembly Instructions
A S S E M B L Y PERFORMANCE II 4.1s Assemble 4 castors (number 30 & 29, 2 with break and 2 without) on the bottom panel with screws. Use screw A to assemble left side panel (16) and right side panel (32) to the bottom panel(27). Assemble the door axe (B) on the bottom as well. - Page 11 A S S E M B L Y Use screw (A) to assemble back panel (24) to left side panel (16) and right side panel (32) and bottom panel (27) 5PCS Use the screw (A) to fix the door girder to the left side side panel (16) and right side panel (32).
- Page 12 A S S E M B L Y PERFORMANCE II 4.1s Use screw A to assemble door pillar (25) to the door girder (22) and bottom assembly (27), shown in the illustration. 4PCS Use screw A to fix the cabinet divider (17) to the door pillar (25) and back panel (24), as shown in illustration.
- Page 13 A S S E M B L Y Use screw A to assemble the cabinet stiffening board (23) upper to the door girder (22) and left side weld assembly (16); use the screw to assemble the cabinet stiffening board (23) upper to the door girder (22) and right side weld assembly (32). 4PCS Use screw A to assemble the cabinet stiffening scute (26) upper the bottom (27) and left side assembly (16).
- Page 14 A S S E M B L Y PERFORMANCE II 4.1s Place the grill body (1) on the chassis. Use Screw (A) to fix the main burner assembly (1) upper to the left side shelf assembly (16) and right side shelf assembly (32), shown as below picture. NOTE! TWO PERSONS IS RECOMMENDED...
- Page 15 A S S E M B L Y Use the screw (A) to assemble the foldable right shelf weld assembly to the main burner assembly (01), shown as n the illustration above. × 2PCS Fit the side burner side table by matching the holes of the side table to the three pre-installed screws (M6x16) in the grill body.
- Page 16 A S S E M B L Y PERFORMANCE II 4.1s Use screw D to assemble the side burner valve assembly (13) and decoration ring (11) to the left side burner assembly, and assemble the knobs (15). 2PCS First, insert the side burner assembly (12) to the side burner valve assembly (13), and then use the screw D to fix it to the side burner assembly.
- Page 17 A S S E M B L Y Put the pot support (14) into the holes of left side burner table. Lay the flame tamers (2) into the body.
- Page 18 A S S E M B L Y PERFORMANCE II 4.1s Place the cast iron grill (4) and MGS cast iron grill (5) into the firebox. Then place the MGS round cast iron grill (6) into the round opening of the MGS cast iron grill (5). Insert warming rack (3) making sure that the tabs on the warming rack fit into the predrilled holes in the firebox.
- Page 19 A S S E M B L Y Insert the Drip Tray (18) into the bottom of firebox, then put the Grease Cup (20) on the slot as hown in illustration. Insert wire shelves (31) in the space between the right side panel (32) and the cabinet divider (17) in the cabinet.
- Page 20 A S S E M B L Y PERFORMANCE II 4.1s Fit the doors (28) in the cabinet by inserting the hole in the bottom of the door onto the pin (B). Secure the top of the door by squeezing the spring-loaded tab at the top and slide the door in so the pin hits the hole at the top of the door.
- Page 21 A S S E M B L Y Connect the correct flexible hose to the gas inlet connection. 1) If the gas inlet is a nozzle, plug in the hose and fix it with a clamp firmly. 2) If the gas inlet is a thread type, connect the flexible hose with left thread connector. Check up the gas tightness after connection.
-
Page 22: Regulator And Hose - Connecting The Gas
C O N N E C T I N G G A S PERFORMANCE II 4.1s FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BARBECUE AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the barbecue. Tighten well. •... -
Page 23: Check For Leaks Before Using The Barbecue
FIXED INSTALLATIONS AND YOUR BARBECUE. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED. -
Page 24: Last Check
L A S T C H E C K PERFORMANCE II 4.1s PLACEMENT OF THE BARBECUE • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. •... -
Page 25: Lighting Instructions
L I G H T I N G I N S T R U C T I O N S LIGHTING INSTRUCTIONS Set all control knobs to off. Open the lid. The lid must always be open when lighting the grill. Open the gas valve of the gas cylinder. -
Page 26: Maintenance
M A I N T E N A N C E PERFORMANCE II 4.1s KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. IF A GREASE FIRE OCCUR MAINTENANCE OF THE BARBECUE In case of grease fire, close the gas supply on the •... - Page 27 M A I N T E N A N C E FIRES CAUSED BY FAT, CAN DAMAGE THE METAL, PAINT AND ENAMEL. DAMAGE TO THE BARBECUE CAUSED BY FAT BURNING, IS NOT COVERED BY THE GUARANTEE AS IT IS DUE TO INCORRECT USE. CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be performed...
-
Page 28: Advice, Tips And Safety
• We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must be completely dry and cold before applying the coating. -
Page 29: Troubleshooting
T R O U B L E S H O O T I N G PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose Electrode is broken or dirty Clean the electrode... -
Page 30: Multi Grill System
A C C E S S O R I E S PERFORMANCE II 4.1s SOLD SEPARATELY, AVAILABLE AT YOUR BBQ DEALER MULTI GRILL SYSTEM GIV E S YOU N EW WAYS TO ENJ OY YOUR BARBECUE TIME ! Using various MGS accessories like a wok, frying pan, pizza stone, cooking plate, and searing grid on a barbecue can significantly expand your outdoor cooking options. - Page 31 A C C E S S O R I E S SOLD SEPARATELY, AVAILABLE AT YOUR BBQ DEALER SEARING GRID COOKING PLATE FRYING PAN PIZZA STONE/GLAZED PIZZA STONE Enamelled cast iron wok which cooks the food energy efficiently and preserves the nutritional content.
-
Page 32: Consumer Contact
WARRANTY CLAIM This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
