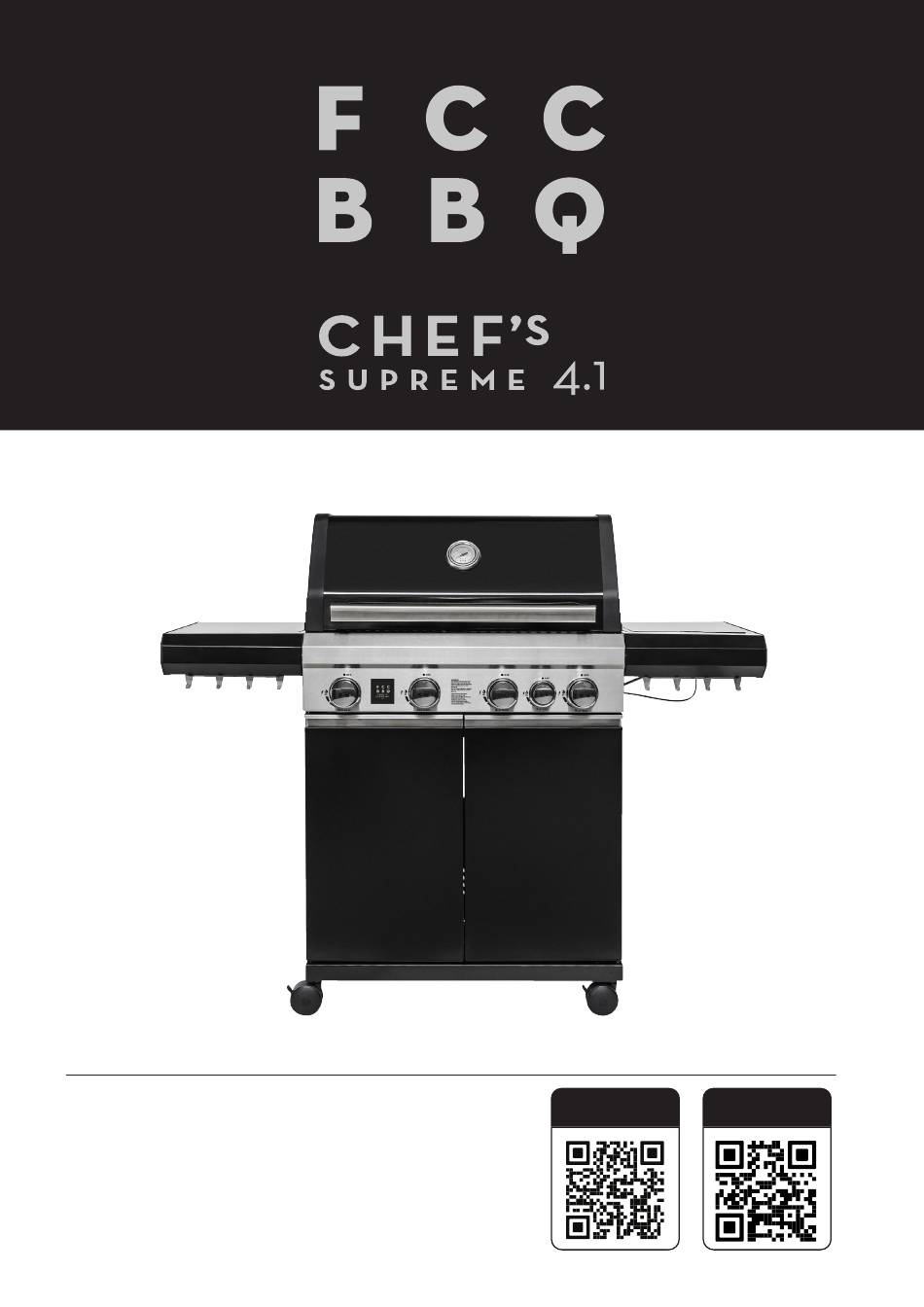

FCC-G-22642-41 / K104BPF3
USER MANUAL:
Assembly, maintenance and safety
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE ASSEMBLY
INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR
BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!
SCAN QR CODE AND
SCAN QR CODE FOR
REGISTER BARBECUE FOR
EXTENDED WARRANTY
EX
WARRANTY:
BARBECUE
ASSEMBLY VIDEO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHEF'S SUPREME 4.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FCC BBQ CHEF'S SUPREME 4.1

  • Page 1 FCC-G-22642-41 / K104BPF3 USER MANUAL: SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE Assembly, maintenance and safety EXTENDED WARRANTY ASSEMBLY VIDEO WARRANTY: OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR BARBECUE AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
  • Page 2: The Story Of Fcc

    It´s fantastic flavors, it´s tough, it´s cool and it’s love for the most amazing cooking method in the world! 2023 will be the sixth year for FCC BBQ, and we´re very proud and humble for the success and what we as a company have achieved.
  • Page 3 Hans-Kristian, Mathias, Trond and Tor...
  • Page 4: Table Of Contents

    C O N T E N T S The story of FCC................... 2 Warnings ......................5 Technical Data ....................6 Read before assembly ................7 Parts List ......................8 Exploded Drawing ..................9 Assembly Instructions ................10 Regulator and Hose - Connecting the gas ........22 Check for leaks before using the barbecue ........23 Last Check ....................24 Lighting Instructions ...................25 Maintenance ....................26...
  • Page 5: Warnings

    W A R N I N G S ! ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED AREAS.
  • Page 6: Technical Data

    T E C H N I C A L D A T A Total Heat input: 17kW Gas consumption: 1237 gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region.
  • Page 7: Read Before Assembly

    If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. Transport damage to parts, varnish or enamel must be reported to the dealer or FCC BBQ before mounting and using the barbecue. If damage is reported after, there is a possibility that damage may have occurred during assembly.
  • Page 8: Parts List

    P A R T S L I S T CODE DESCRIPTION DESCRIPTION CODE DOOR HINGE THERMOMETER CART TRIANGULAR SUPPORT BRACKET LID SCREW WHEEL PLUG LID HANDLE DOOR MAIN BURNER KNOB BEZEL LID BUFFER MAIN BURNER KNOB WARMING RACK CONTROL PANEL CAST IRON GRID 195 MM TOOL HOOK HEAT DISTRIBUTION PANEL...
  • Page 9: Exploded Drawing

    E X P L O D E D D R A W I N G...
  • Page 10: Assembly Instructions

    A S S E M B L Y Turn bottom panel of cabinet (22) upside down, and attach wheels (26) with a wrench. Mount the low side panels (18, 23) to the bottom panel.
  • Page 11 A S S E M B L Y 4 x B Attach the rear low panel (21) to the low side panels and bottom panel. Attach the cart triangular support brackets (25) to the bottom panel and lower side panels.
  • Page 12 A S S E M B L Y 4 x A Attach the front cart beam (25) to the top of the legs with 4 pcs x screw A. NOTE! TWO PERSONS IS RECOMMENDED WHEN LIFTING THE STOVE BODY Fix the main burner knobs (29) to the main burner bezels (28).
  • Page 13 A S S E M B L Y 4 x B Fit all four B screws before tightening. 2 x B 2 x D Loosen the pre-assembled screws on the right side of the firebox. Align the side table to the screws and slide the side burner assembly (17) on to the screws.
  • Page 14 A S S E M B L Y Loosen the screws on sideburner. Slide the burner unit on the bracket and tighten the screws. Then attach the burner unit to the side burner table. Remember to attach the sideburner lighting wire .
  • Page 15 A S S E M B L Y 1 x A The gas connection bracket and hose is attached behind the control panel with a cable tie, please cut the cable tie carefully with a scissor. Fix the bracket with gas intake to the side panel using 1x screw A. Secure the hose by tightening the nut on the bracket.
  • Page 16 A S S E M B L Y 2 x C Place the fixing elements (2 pcs C) for the doors, on the bottom panel-...
  • Page 17 A S S E M B L Y Fit the left and right doors. Hook each door onto the chassis. 2 x A Attach the grease cup holder (12) to the grease tray (14) with 2x screw A. Then slide the grease cup onto the cup holder.
  • Page 18 A S S E M B L Y Align the flame tamers on the grooves inside the firebox. Insert the cast iron grills. Place the warming rack.
  • Page 19 A S S E M B L Y 6 x B Attach the tool hooks (31) on each of the side tables.
  • Page 20 A S S E M B L Y The barbecue is now fully assembled.
  • Page 21 A S S E M B L Y Add a regulator and hose (sold separately). Do not use the barbecue while the gas cylinder is inside the cabinet. Perform a leak test before using the barbecue. Read more about how to perform a leak test on page 23.
  • Page 22: Regulator And Hose - Connecting The Gas

    C O N N E C T I N G G A S FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BARBECUE AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the barbecue. Tighten well. •...
  • Page 23: Check For Leaks Before Using The Barbecue

    FIXED INSTALLATIONS AND YOUR BARBECUE. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED.
  • Page 24: Last Check

    L A S T C H E C K PLACEMENT OF THE BARBECUE • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. •...
  • Page 25: Lighting Instructions

    L I G H T I N G I N S T R U C T I O N S LIGHTING INSTRUCTIONS Set all control knobs to off. Open the lid. The lid must always be open when lighting the barbecue. Open the gas valve of the gas cylinder.
  • Page 26: Maintenance

    M A I N T E N A N C E KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. ning down on flame tamers and on the grease tray. IF A GREASE FIRE OCCUR Do not leave the barbecue when it is lit and close In case of grease fire, close the gas supply on the the gas supply as soon as possible if there is a sign of...
  • Page 27 M A I N T E N A N C E CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be performed Grill grate and flame tamers are brushed regularly when the barbecue is cold. Make sure that the with a grill brush for rough cleaning.
  • Page 28: Advice, Tips And Safety

    • We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must be completely dry and cold before applying the coating.
  • Page 29: Troubleshooting

    T R O U B L E S H O O T I N G PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty...
  • Page 30: Consumer Contact

    WARRANTY CLAIM This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
