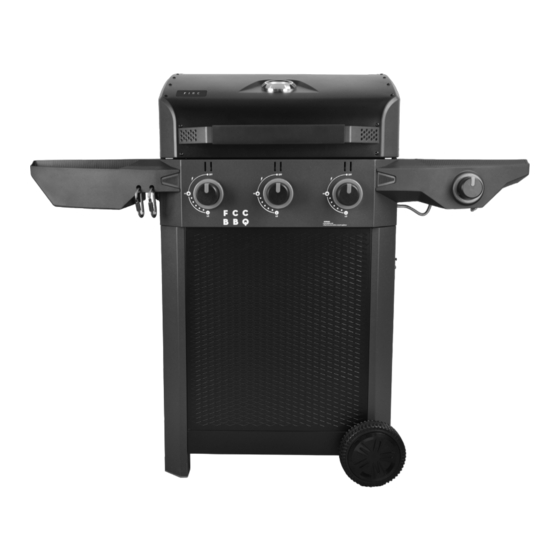

FCC BBQ Fire 3.1 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SCAN QR CODE AND
SCAN QR CODE FOR
REGISTER BARBECUE FOR
BARBECUE
EXTENDED WARRANTY
ASSEMBLY VIDEO
WARRANT
MANUAL
Assembly, use, maintenance and safety
FCC-G-21100-31 / F3B
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE
ASSEMBLY INSTRUCTIONS STEP BY
STEP. GET TO KNOW YOUR GRILL AND
THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!

Advertisement

Table of Contents
loading

Related Manuals for FCC BBQ Fire 3.1

Summary of Contents for FCC BBQ Fire 3.1

  • Page 1 SCAN QR CODE AND SCAN QR CODE FOR REGISTER BARBECUE FOR BARBECUE EXTENDED WARRANTY ASSEMBLY VIDEO WARRANT MANUAL Assembly, use, maintenance and safety FCC-G-21100-31 / F3B OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR GRILL AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!

  • Page 2: Table Of Contents

    Contents WARNINGS! Warnings ● ACCESSIBLE PARTS OF THE BARBECUE BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED Technical data SUPERVISION AT A SAFE DISTANCE. ● THE BARBECUE IS INTENDED FOR OUTDOOR USE ONLY IN Read before assembly WELL-VENTILATED AREAS.

  • Page 3: Technical Data

    Technical Data Tekniske data Read before assembly FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID Total Heat input: 13.2 kW (main burner: 9.9kW + side burner: 3.3.kW) Gas consumption: G30 959.8g/h / G31 942.7g/h SERIOUS PERSON INJURY OR DAMAGE TO YOUR BARBECUE. Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region.

  • Page 4: Parts List

    Parts list Parts list CODE DESCRIPTION GAS GRILL ASSEMBLY WARMING RACK BIG COOKING GRATE (FOR MGS) FLAME TAMER LEFT SHELF CARABINE HOOK SIDE BURNER FRAME SIDE BURNER RIGHT SHELF CONTROL KNOB BASE CONTROL KNOB LEFT REAR CORNER BRACE LEFT SIDE UPPER BRACE LOWER BRACE LEFT FRONT CORNER BRACE FRONT PANEL...

  • Page 5: Assembly

    Assembly Assembly RIGHT SIDE Assemble the corner braces with the lower and upper braces with 10 pcs M6x15 Attach the wheels with screws. 2x M10 nuts. LEFT SIDE Assemble the corner braces with the lower and upper braces with 10 pcs M6x15 screws.
  • Page 6 Assembly Assembly NOTE! TWO PERSONS IS RECOMMENDED Turn the carriage upside down and WHEN LIFTING install the bottom plate with 4 pcs THE STOVE BODY. M6x15 screws. Lift the grill body and place it on the base. Fit the 4 screws (M6x15) before tightening.
  • Page 7 Assembly Assembly Assemble the front panel and left side table. I. ST6.3x16 3 stk B. Ø6.5 3 stk C. Ø6.5 3 stk F. M4x10 6 pcs G. Fiber Washer 4 pcs. J. ST4.2x10 3 pcs Step 1: Use M4*10 (F) to lock the side burner and the right plate plastic.
  • Page 8 Assembly Assembly Add flame tamers. Insert the grill grate and warming shelf. Attach the side tables with 2 pcs M6x15 screws. Place the plate in the grease tray and push it into the back of the barbecue. Push in the grease cup. The barbecue is now fully assembled.

  • Page 9: The Barbecue

    7. If detected leakage cannot be rectified, do not attempt to cure leakage but 1. Thread the hose all the way into the gas nipple. consult your dealer or FCC BBQ support på support@fccproducts.no for 2. Place the hose clamp 0.5 - 1 cm from the end of the hose.

  • Page 10: Last Check

    Lighting Instructions Last Check LIGHTING INSTRUCTIONS PLACEMENT OF THE BBQ 1. Set all control knobs to off (red bar pointing upwards). 2. Open the lid. The lid must always be open when lighting the barbecue. • Ensure that the barbecue is placed at least 150 cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use.

  • Page 11: Maintenance

    Maintenance Maintenance KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. CLEANING COOKING GRATE OG FLAME TAMERS All cleaning and maintenance must be Grill grate and flame tamers are brushed IF A GREASE FIRE OCCUR regularly with a grill brush for rough cleaning.

  • Page 12: Advice, Tips And Safety

    NB! Knobs should be KNOBS pressed in and turned • We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the barbecue must Trim away excess fat from meat.

  • Page 13: Consumer Contact

    Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
