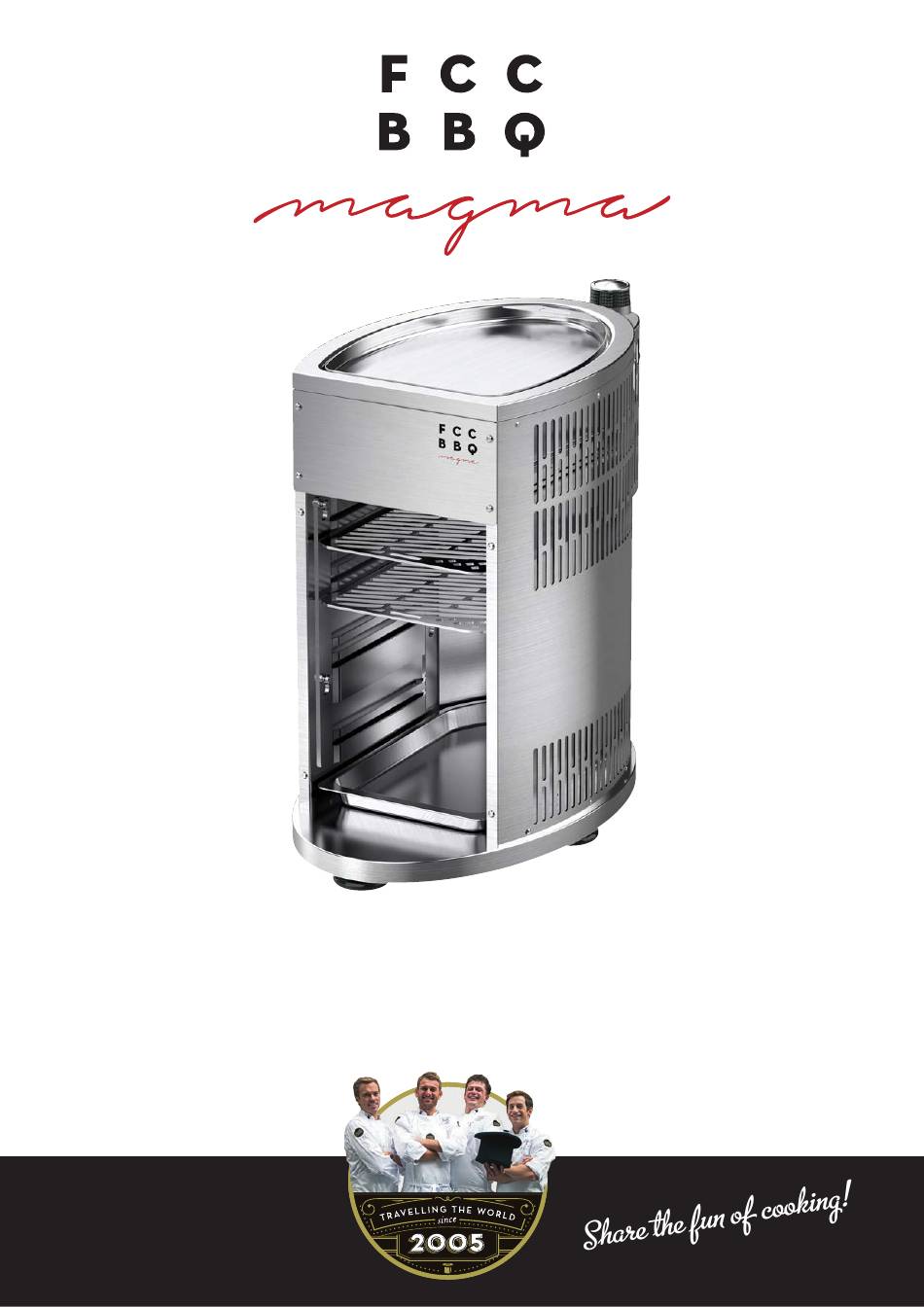

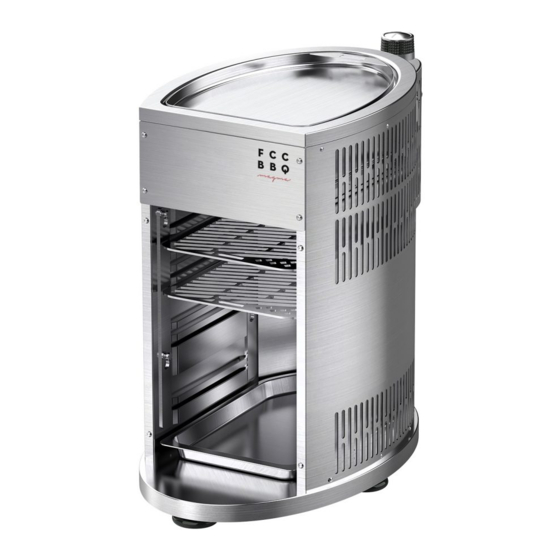

- Page 1 Instructions and maintenance MANUAL FCC-SG-196000-00 / HF75B OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings Technical data Exploded drawing Assembly Check for leaks Lighting instructions Last check Maintenance Troubleshooting Consumer contact... -
Page 3: Warnings
Warnings • THIS PRODUCT IS DESIGNED AS A HOME APPLICANCE AND NOT SUITABLE FOR PROFFESIONAL USE IN A RESTAURANT OR SIMILAR. • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. •... -
Page 4: Technical Data
Technical Data Tekniske data w: 26cm Total Heat input: 3.0 kW Gas consumption: 218 gram/ hour Gasbottle (not included): Use standard bottle h: 43,5 cm approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Exploded Drawing
Exploded Drawing CODE DESCRIPTION Main body Warming pan Cooking grid Cooking grid handle Grease box Foot Knob Cooking grid support panel Battery box... -
Page 6: Assembly
Assembly Before beginning assembly of product make sure all parts are present. Compare parts with package contents list. If any parts is missing or damaged, do not attempt to assembly the product. Remove all packing material from the grill. 1. Assemble the knob. 2. - Page 7 Assembly Fully assembled view...
- Page 8 Assembly ACCESSIBLE PARTS MAY BE VERY HOT. ALWAYS USE PROTECTIVE GLOVES WHEN OPERATING THE GRILL.
- Page 9 Assembly The cooking grid support panels are removable for cleaning.
- Page 10 Assembly Follow these instructions carefully to avoid serious damage your barbecue and causing injury to yourself and to property. 1. Assemble the barbecue following the assembly instructions carefully. 2. Connect the gas hose to the barbecue. Connect the regulator to the hose.
-
Page 11: Check For Leaks
Check for leaks Before use please check for leaks Never check for leaks with a naked flame, always use a soapy water solution 1. Make a mixed solution (water and liquid detergent / soap). 2. Check that the control valve on the BBQ is ”OFF”. 3. -
Page 12: Lighting Instructions
Lighting Instructions 1. Connect the gas cylinder to the barbecue following the instructions supplied with the regulator. 2. Turn all the control knobs to the ”OFF” position. 3. Before first usage and if the barbecue hasn’t been in use for a while, check for leaks (see page 11) 4. -
Page 13: Last Check
Last Check PLACEMENT OF THE BBQ • Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the BBQ under a roof or overhang. •... -
Page 14: Maintenance
Maintenance Keep the barbecue body and the accessories clean to avoid grease fire. CLEANING All cleaning and maintenance should be car- ried out when the appliance is cool and with the fuel supply turned OFF at the gas cylin- INSECTS AND VERMIN der after each time use. -
Page 15: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLLUTION Empty gas bottle Replace gas bottle Damaged regulator Check/replace the regulator Gas supply is blocked Clean gas ventury or hose Burner will not light Electrode is broken or dirty Clean the electrode Windy conditions Place the BBQ in a less exposed position Battery for ignitor does not work Change battery Empty gas bottle... -
Page 16: Consumer Contact
Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
