MANUAL
Installation, use, maintenance and safety
FCC-G-202180-41
!
OUTDOOR USE ONLY
READ THE MANUAL, FOLLOW THE
ASSEMBLY INSTRUCTIONS STEP BY
STEP. GET TO KNOW YOUR GRILL AND
THE SAFETY INSTRUCTIONS BEFORE
USING THE APPLIANCE!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultimate Pro 4.1 and is the answer not in the manual?

Questions and answers

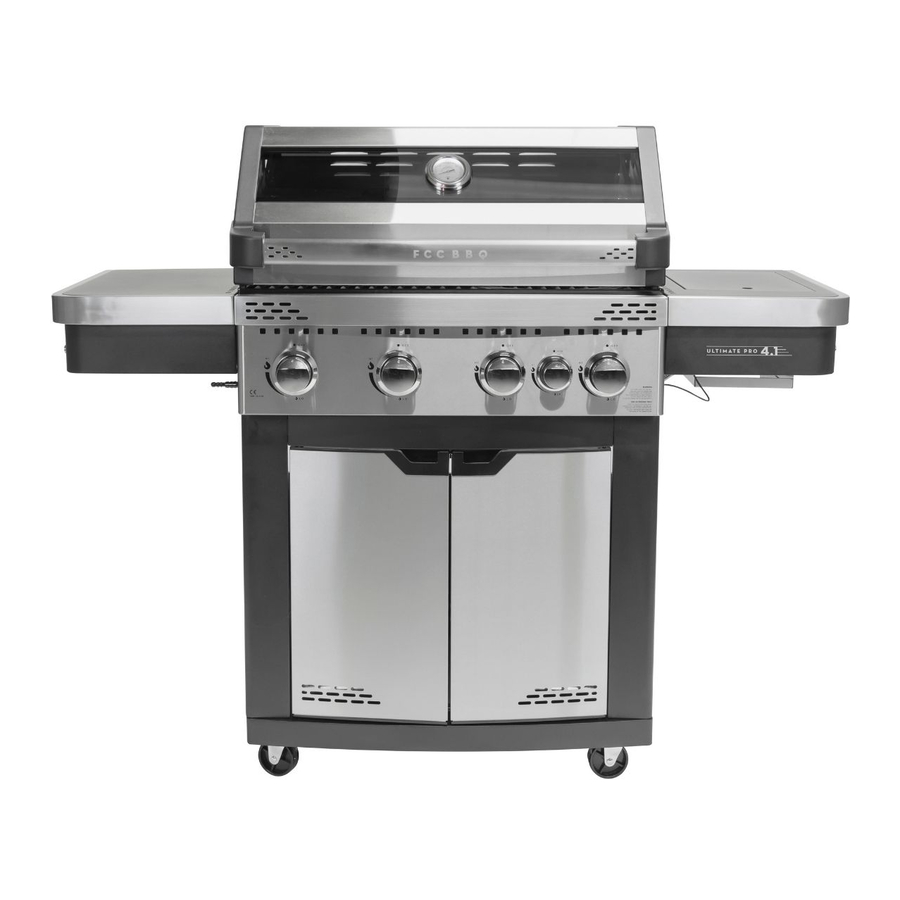

Summary of Contents for FCC BBQ Ultimate Pro 4.1

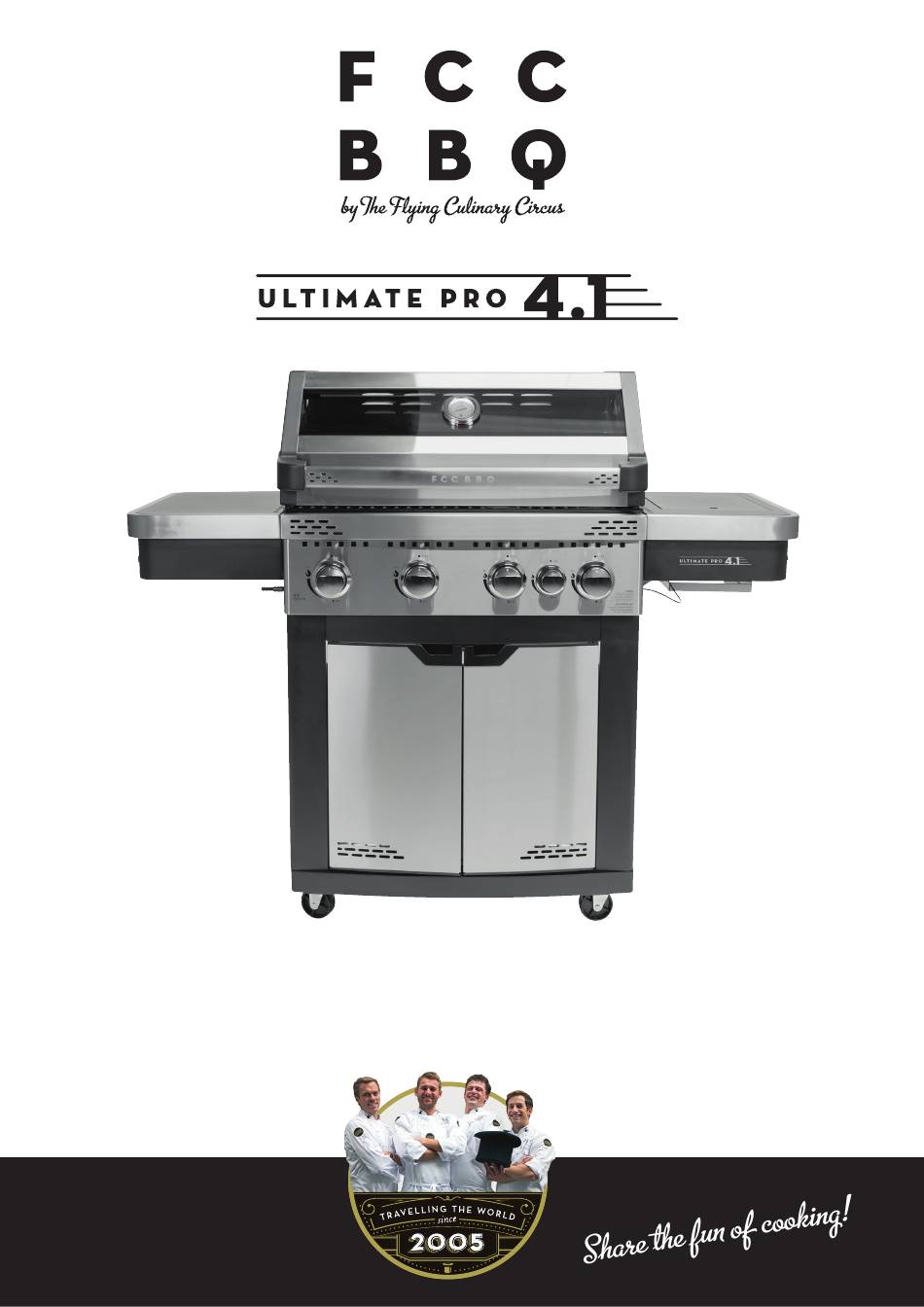

  • Page 1 MANUAL Installation, use, maintenance and safety FCC-G-202180-41 OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR GRILL AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
  • Page 2: Table Of Contents

    Contents Warnings ........................3 Technical Data ......................4 Read before assembly ...................4 Parts list .........................6 Exploded Drawing ....................7 Assembly instructions ...................8 Regulator and hose - Connecting the gas ..........16 Check for leaks before using the barbecue ...........17 Last check ........................18 Lighting instructions ....................19 Maintenance ......................20 Advice, tips and safety ..................22 Troubleshooting ....................23...
  • Page 3: Warnings

    WARNINGS! ● ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. ● LEAK TESTS (SEE PAGE ) MUST ALWAYS BE CARRIED OUT BEFORE THE GRILL IS USED AND WHEN REPLACING THE GAS CYLINDER.
  • Page 4: Technical Data

    Technical Data Tekniske data Total Heat input: 18.9 kW (Main burners 3.8kWx4=15.2kW, Side infrared burner 3.7kW). Gas consumption: 1375 gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region.
  • Page 5: Read Before Assembly

    Read before assembly FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS PERSON INJURY OR DAMAGE TO YOUR BARBECUE. Make sure that all parts and screws are in the box before mounting the product, please note that some parts may be located in the styrofoam in the side walls of the packaging. Compare the parts list with the contents of the box.
  • Page 6: Parts List

    Parts List CODE DESCRIPTION LID HANDLE THERMOMETER THERMOMETER BEZEL WARMING RACK CAST IRON GRATE A CAST IRON GRATE B (W/ MGS INSERT) ROUND CAST IRON GRATE C FLAME TAMER SIDE TABLE ASSY DRIP TRAY HANDLE DRIP TRAY SIDE BURNER RACK SIDE BURNER ASSY SIDE BURNER ELECTRODE SIDE BURNER TABLE ASSY...
  • Page 7: Exploded Drawing

    Exploded Drawing HARDWARE CODE DESCRIPTION FIGURE CODE DESCRIPTION FIGURE M6x16 Screw M6 Washer M6 Spring Washer M5x12 Screw M6x12 Screw M4x10 Screw fccbbq.com...
  • Page 8: Assembly Instructions

    Assembly Turn bottom panel of cabinet (26) upside down, and fix castors with brake(30) and castors without brake(31) with A,B,D. Fix left side panel (23) and right side panel (25) with screw C as below. Fix door block component (35) with screw F as illustration above.
  • Page 9 Assembly Fix rear panel (24) with screw E as illustration above. Fix upper beam (27) with screw C as shown in illustration. fccbbq.com...
  • Page 10 Assembly Follow in the illustration above to insert lower rotating axis of left door assy (28) into hole in the bottom panel of cabinet, then follow in the illustration to press spring pin and insert into hole of upper beam(27). Same assembling procedure for right door assy (29).
  • Page 11 Assembly Screw 4pcs of screw A halfway into right side of stove body assy(20), hang side burner table assy (15) onto screw A and tighten screw A. Screw 4pcs of screw A halfway into left side of stove body assy(20), hang side table assy (9) onto screw A and tighten screw A.
  • Page 12 Assembly Follow illustration and put flame tamer (8) -> cast iron grate A (5) -> cast iron grate B (6) -> round cast iron grate C (7) -> warming rack (4) in order into stove body assy. Push drip tray (11) into the gap on the rear side of stove body assy all the way in.
  • Page 13 Assembly Attach the side burner injector assy into the threaded hole of the side burner and tighten the the nut. Then attach the ignitor wire Enter the side oil tray (36) into the slot under the side table assy. fccbbq.com...
  • Page 14 Assembly Insert regulator hose(not provided) with gas tube assy (22) connector, and tighten the hose clamps. Read more about hose and regulator on page 16.
  • Page 15 Assembly Assembly finished. fccbbq.com...
  • Page 16: Regulator And Hose - Connecting The Gas

    Connecting gas FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BBQ AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the grill. Tighten well. • Install the regulator and hose. Follow the installation instructions that came with the controller set.
  • Page 17: Check For Leaks Before Using The Barbecue

    7. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your dealer or FCC BBQ Products support at support@fccbbq.com for help in solving the problem. ● LEAK TEST MUST BE DONE REGULARLY AND EVERY TIME THE GAS CYLINDER, REGULATOR OR HOSE IS REPLACED.
  • Page 18: Last Check

    Last Check PLACEMENT OF THE BBQ • Ensure that the grill is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the grill under a roof or overhang. •...
  • Page 19: Lighting Instructions

    Lighting Instructions LIGHTING INSTRUCTIONS 1. Set all control knobs to off. 2. Open the lid. The lid must always be open when lighting the grill. 3. Open the gas valve of the gas cylinder. 4. Push the knob of the desired burner in and turn it to the left. The burner will ignite automatically.
  • Page 20: Maintenance

    Maintenance KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. IF A GREASE FIRE OCCUR free to use trays in aluminum foil to prevent large In case of grease fire, if possible close the gas amounts from running down on flame tamers and supply on the regulator / barbecue and on the grease tray.
  • Page 21 Maintenance layer of acid-free oil once or twice a year. CLEANING For barbecues that are placed in coastal All cleaning and maintenance must be areas, we recommend that you treat the grill performed when the barbecue is cold. Make more often. sure that the gas upply is switched OFF and the regulator is disconnected from the gas COOKING GRATE OG FLAME TAMERS...
  • Page 22: Advice, Tips And Safety

    Water from snow, ice and rain that enters the grill can overfill the grease collection system and cause leakage to the surface. • We recommend the use of FCC BBQ original covers for the best possible protection against rain, pollen and pollution. Remember that the grill must be completely dry and cold before applying the coating.
  • Page 23: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty Clean the electrode Place the BBQ in a less Windy conditions...
  • Page 24: Consumer Contact

    Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
