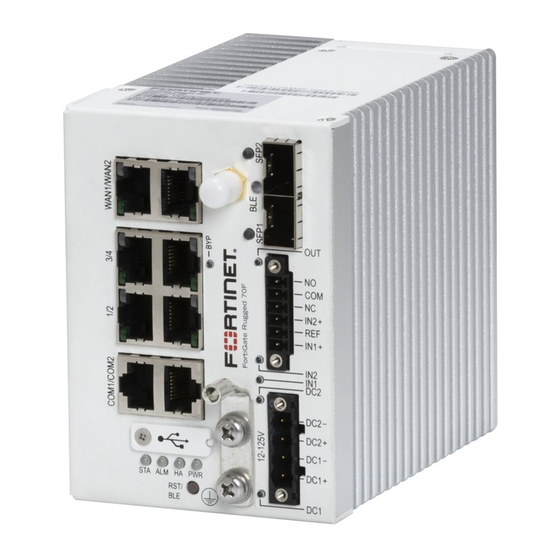

- Page 1 QuickStart Guide FortiGate Rugged 70F Series FGR-70F and FGR-70F-3G4G...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
- Page 3 The Essentials Package Contents Default Logins FortiGate Rugged 70F Series FGR-70F, FGR-70F-3G4G https://192.168.1.99 Username: admin Password: leave blank Fortinet Documents Library 1x Rugged Device 1x QuickStart Guide For a detailed Administration Guide, up-to-date Hardware documentation and Reference Manuals, visit https://docs.fortinet.com/...
- Page 4 Scan QR Code to Follow the on-screen Install instructions Note: For a detailed CLI guide, visit docs.fortinet.com Note: Enable Bluetooth on your mobile device for BLE or connect your mobile’s USB cable into the device FortiGate Cloud Internet Ethernet Cable...
- Page 5 Front - FGR-70F Ports 1 to 4 (RJ45) Green: Connected at 1000Mbps SPEED Amber: Connected at 100Mbps SPEED Off: No link established or connected at 10Mbps Green: Link established, no activity COM1/COM2 WAN1/WAN2 Flashing Green: Data activity SPEED Off: No link established RJ45 Ports WAN1 &...
- Page 6 Front - FGR-70F-3G4G WAN1 & WAN2 Ports (RJ45) SPEED Green: Connected at 1000Mbps Amber: Connected at 100Mbps SPEED MAIN Off: No link established or connected at 10Mbps COM1/COM2 WAN1/WAN2 Green: Link established, no activity SPEED Flashing Green: Data activity Off: No link established RJ45 Ports 3G4G &...
- Page 7 MICRO SD Slot - FGR-70F Series SIM Slots - FGR-70F-3G4G Power off device to install/uninstall an SD card as the Refer to the Admin guide on docs.fortinet.com for wireless WARNING: NOTE: FGR-70F Series does not support hot-swapping WAN configuration information...
- Page 8 Dimensions The FGR-70F and FGR-70F-3G4G share the same chassis dimensions. The FGR-70F and FGR-70F-3G4G share the same DIN bracket. Edge Thickness, Height both sides, 80.5mm (3.17in) Length 8.8mm (0.35in) 122.0mm (4.80in) Length 76.6mm (3.02in) Width 110.0mm (4.33in) Height 48.3mm (1.90in) Length w/ connector 140.5mm (5.53in) For the FGR-70F-3G4G, the antenna dimensions are shown below.
- Page 9 DIN Installation Power Installation The FGR-70F Series mounts on the side or rear of the device using the Warnings provided screws and DIN bracket (images only show 3 mounting holes). • The dual redundant DC input supports negative ground (+12V to +125V DC) and positive ground (-12V to -125V DC) •...
- Page 10 3. Press Q twice to exit and continue the bootup process DC1+ DC2- DC1- DC2+ NOTE: See the admin guide on docs.fortinet.com for more information The FGR-70F Series has optional dual DC inputs for failover OPTIONAL: redundancy. If a DC input fails, the second input will supply power.
- Page 11 A skilled person must install the equipment. directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s autho- L’équipement doit être installé par une personne qualifiée.
- Page 12 This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This product is in compliance with Statutory Instrument 1206 Radio Equipment Regulations 2017 The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/UK Voluntary Control Council for Interference (VCCI) – Japan この装置は、クラスＡ機器です。この装置を住宅環境で使用すると電波妨害を引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求されることがあり...
- Page 13 Fortinet.com...
