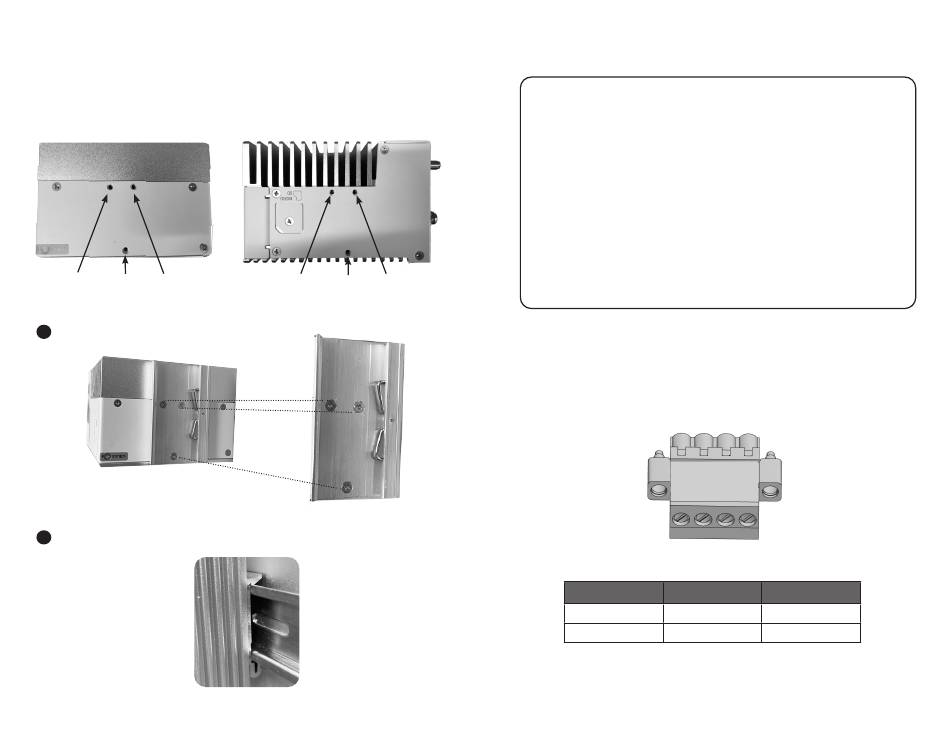

DIN Installation
The FGR-70F Series mounts on the side or rear of the device using the
provided screws and DIN bracket (images only show 3 mounting holes).
Rear Mounting Holes
1
Secure the bracket
DIN Bracket Installed
2
Mount the device to the rail
16
Side Mounting Holes
DIN Bracket
Rail Mounted
Power Installation
Warnings
• The dual redundant DC input supports negative ground
(+12V to +125V DC) and positive ground (-12V to -125V DC)
• DC1+ and DC2+ are the high voltage potential pins and DC1-
and DC2- are the lower voltage potential pins
• Do not connect DC+ terminal to a lower voltage potential
than DC- terminal
• The voltage between a DC+ and DC- must be +12V to +125V DC
• Consult a professional electrician to install the device and
determine a suitable wire gauge and length
• The DC terminal block wire gauge maximum is 12 AWG; the
minimum is 30 AWG
• Optional but recommended, connect earth ground using the
lug plate or grounding screw
1. Connect DC1+ or DC2+ on the device terminal block to the DC
power source, then connect the negative DC1- or DC2- on the
terminal block
DC1+ DC1-
DC Input Power DC+ Terminal
Negative Ground +12V to +125V DC
Positive Ground Ground
DC2+ DC2-
DC- Terminal
Ground
-12V to -125V DC
