Summary of Contents for BMB MEDICAL CAREXIA FP

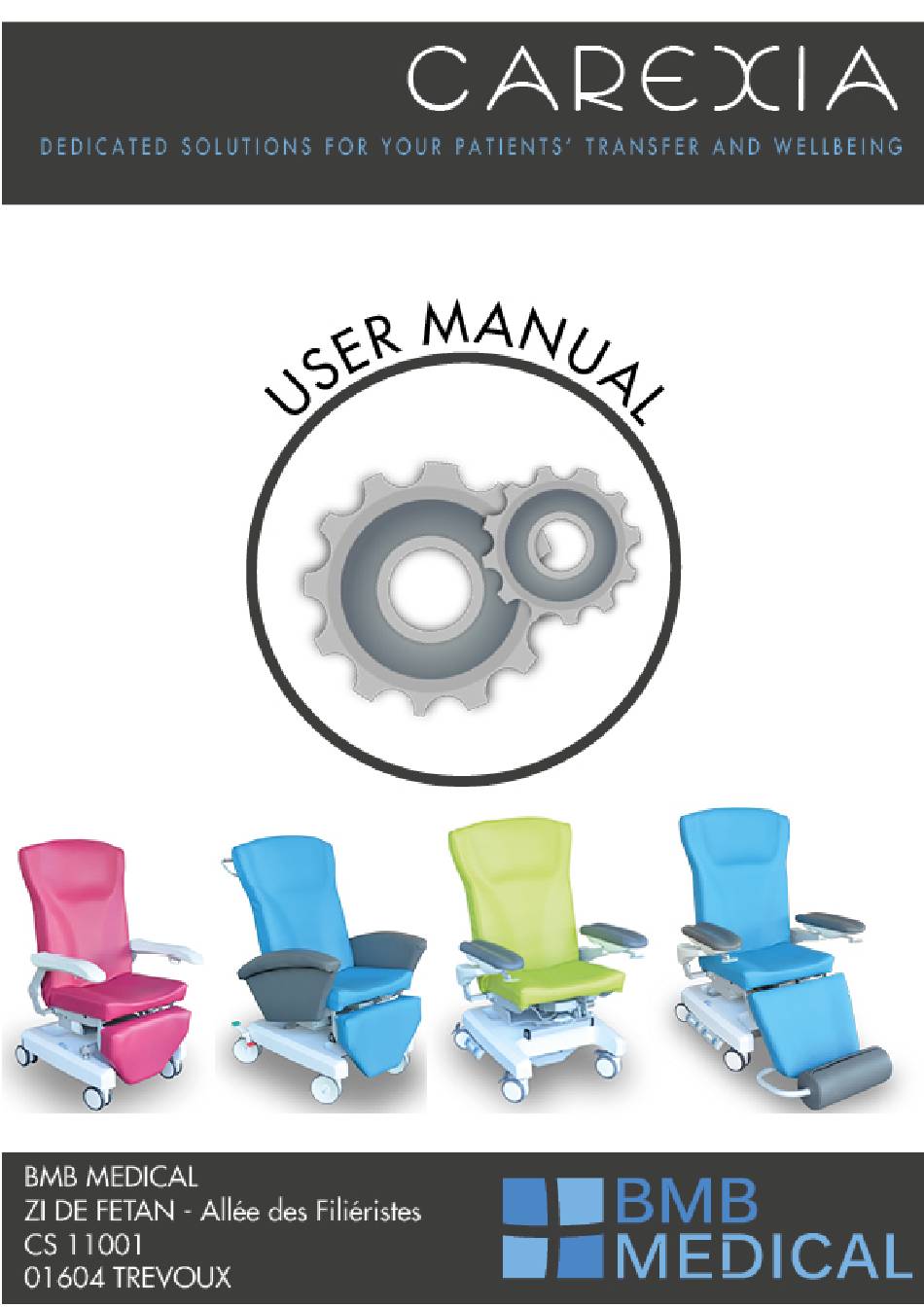

- Page 1 MU – CAREXIA – V2...
- Page 2 MU – CAREXIA – V2 Manufactured by : BMB MEDICAL BP 405- Z.I. de Fétan F-01604 TRÉVOUX CEDEX Tel : +33(0)4 74 08 71 71 Fax : +33(0)4 74 08 71 72 www.bmb-medical.com This manual is for the purpose of familiarisation with the use, maintenance and safe handling of your new medical apparatus.
-
Page 3: Table Of Contents
______________________________________________________________ The information in this document may be changed without notice and BMB MEDICAL can in no way be held responsible. Any representation or reproduction, whether in whole or in part, without permission from BMB MEDICAL, is illegal. Such illegal representation or reproduction, by any process whatsoever, shall constitute an infringement. -
Page 4: Introduction To The Specifications
- Ultra-comfortable upholstery. Additional 3 cm-thick layer of memory foam on seat and back. *BMB MEDICAL can in no way be held responsible for any problems incurred if the pad used does not match the pad references recommended by BMB MEDICAL... -
Page 5: Versatile Care Chair With Fixed Height And Electric Backrest And Leg Rest
MU – CAREXIA – V2 Versatile care chair with fixed height and electric backrest and leg rest 1.1.2 REFERENCE CAREXIA FPE Versatile care chair with fixed height and electric backrest and leg rest DESCRIPTION 200 kg SAFE WORKING LOAD (maximum allowable load including the total weight of the patient, pad and accessories) WEIGHT 75 to 95 kg depending on the model. -
Page 6: Versatile Care Chair With Electric Variable Height
MU – CAREXIA – V2 Versatile care chair with electric variable height 1.1.3 REFERENCE CAREXIA FPV Versatile care chair with electric variable height DESCRIPTION 200 kg SAFE WORKING LOAD (maximum allowable load including the total weight of the patient, pad and accessories) WEIGHT 75 to 95 kg depending on the model. -
Page 7: Versatile Care Chair With All Electric Movement
MU – CAREXIA – V2 Versatile care chair with all electric movement 1.1.4 REFERENCE CAREXIA FPVE Versatile care chair with all electric movement DESCRIPTION 200 kg SAFE WORKING LOAD (maximum allowable load including the total weight of the patient, pad and accessories) WEIGHT 75 to 95 kg depending on the model. -
Page 8: Purpose Of The Operating Manual
MU – CAREXIA – V2 1.2 – PURPOSE OF THE OPERATING MANUAL Attention health professionals: this operating manual has been created for the purpose of supplying you with all the necessary information and usage precautions to be followed for you to safely operate the product on your own. -
Page 9: Operating Instructions
MU – CAREXIA – V2 OPERATING INSTRUCTIONS 2.1 – BATTERY (OPTIONAL) The battery housing is equipped with its own charger. The battery should be kept in temperate environment for twelve hours before its first use. Then, charge the battery for twelve hours by connecting it to an AC power supply outlet. -
Page 10: Remote Control
MU – CAREXIA – V2 2.2 – REMOTE CONTROL Manual remote control Foot pedal control Variable height Synchronized backrest and legrest FPVE version chair 2.2.1 a) Programmed positions 1) Patient reception chair – press the button until the position stops. (image ❶... -
Page 11: Variable Height
MU – CAREXIA – V2 2.3 - VARIABLE HEIGHT Before using these features : Ensure that no objects or people are under the patient surface. Use the remote control to adjust the height Low position High position 2.4 - TORSO-LIFT Before activating the torso-lift, check that there is nothing hampering its movement (accessories, cables, etc.) CAREXIA backrest-assisted gas spring-loaded version... -
Page 12: Leg-Lift
MU – CAREXIA – V2 2.5 – LEG-LIFT CAREXIA backrest-assisted gas spring-loaded version The positioning of the leg-lift is synchronised with the positioning of the torso-lift. The position adjustments are interdependent. Backrest-assisted synchronised short leg-lift The short leg-lift can be completely retracted under the seat when in the treatment position. CAREXIA with electric legrest (FPE and FPVE) : Independent and synchronized Independent and synchronized... -
Page 13: Armrests
MU – CAREXIA – V2 2.7 ARMRESTS Ergonomic polyurethane backward-collapsible armrests 2.7.1 To raise or lower the armrests, simply lift them up or push them down manually. Adjusting the distance between the armrests: For greater patient comfort, the distance between the armrests can be adjusted. Simply pull them outwards or push them inwards according to the adjustment desired. - Page 14 MU – CAREXIA – V2 To lower the armrest, lift it back up to the upper position and then lower it. Rotational adjustment of the armrest: Press the tab located under each armrest. Owing to its pivoting system, this tab can be used to position the armrest as desired.
-
Page 15: Armrests Designed For Comfort
MU – CAREXIA – V2 Armrests designed for comfort 2.7.3 Adjusting the distance between the armrests: For greater patient comfort, the distance between the armrests can be adjusted. Simply pull them outwards or push them inwards according to the adjustment desired. 2.8 –... -
Page 16: Options
MU – CAREXIA – V2 2.9 – OPTIONS Stand 2.9.1 a) Detachable IV pole The detachable IV pole can be placed in one of two slots on either side of the seat. ❷ Maximum safe working load: 10 kg This indicative value is consistent with safe use of the product. However, it does not represent normal use with a significantly lighter load. -
Page 17: Paper Roll Holder
MU – CAREXIA – V2 Paper roll holder 2.9.4 Pull the tube to the left and raise slightly to slip the paper roll into place. Next, pull the tube once more to the left to reposition it in its slot. Push-bars 2.9.5 Reading lamp... -
Page 18: Cleaning And Disinfection
MU – CAREXIA – V2 III. CLEANING AND DISINFECTION 3.1 –INTRODUCTION Regular, proper cleaning guarantees the service life of the apparatus (cf. cleaning schedule established as soon as the apparatus is put into service, with designated reference staff specified). Failure to carry out cleaning operations may lead to risk of infection due to the presence of secretions and/or residue on the chair. -
Page 19: Directions For Cleaning And Disinfection
MU – CAREXIA – V2 3.4 –DIRECTIONS FOR CLEANING AND DISINFECTION Cleaning operation based on components 3.4.1 Before any cleaning operation is carried out on the chair, disconnect it from the electric power system and ensure that all internal parts are correctly connected. COMPONENT PROCEDURES TO BE PERFORMED Wash using running water (in small quantity) , since... -
Page 20: Precautions
The apparatus must not be exposed to, much less come into contact with, combustion heat sources or flammable agents. * BMB MEDICAL shall not be held liable in the event of incidents or accidents resulting from improper use or modification of the product by the buyer or user. -
Page 21: Non-Standard Uses
Non-standard use of this chair may result in accidents suffered by the user or even irreversible deterioration of the chair. The following list of non-standard uses of the chair is not an exhaustive one. BMB MEDICAL relies on users to apply common sense. -
Page 22: Storage
MU – CAREXIA – V2 Storage 4.3.2 Whenever the chair is in storage, make sure that: the brakes are locked the chair is covered the chair is located in a cool, dry room (temperature: between +10°C and +40°C). While the chair is in storage, no heavy weight should be placed on top of it. The chair should not be treated as a support structure for any type of equipment. -
Page 23: Environment
Recycling electrical equipment contributes to preserving natural resources and preventing risks of pollution. To this end BMB MEDICAL fulfils its obligations in relation to end-of-life I-MOVE EZ- GO transfer chairs which it puts on the market by financing the Recylum recycling system dedicated to DEEE Pro, which takes them back free of charge (More information on www.recylum.com)".
