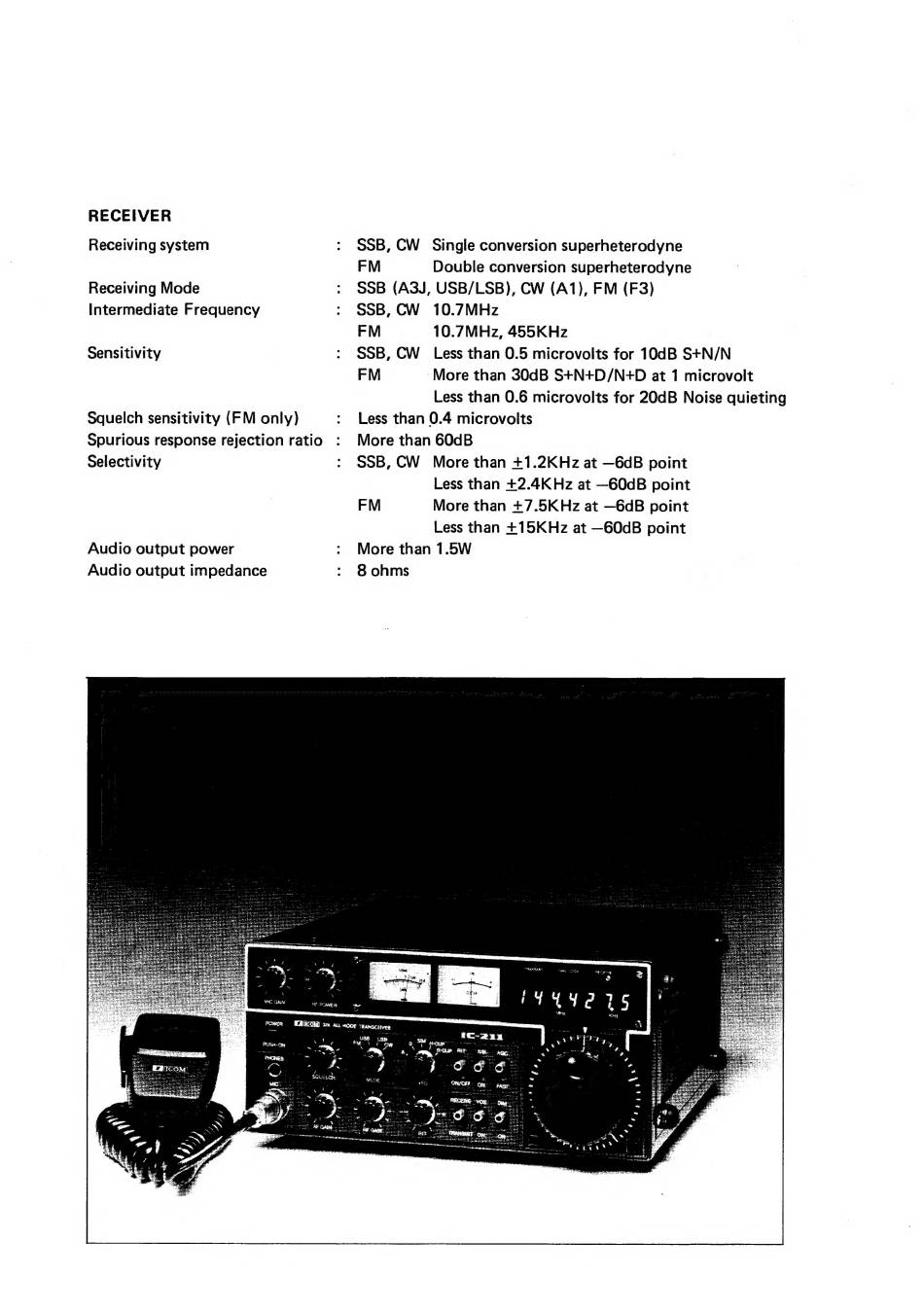

Icom IC-211 Instruction Manual page 4

RECEIVER
Receiving system
Receiving Mode
Intermediate Frequency
Sensitivity
Squelch sensitivity (FM only)
Spurious response rejection ratio
Selectivity
Audio output power
Audio output impedance
SSB, CW Single conversion superheterodyne
FM Double conversion superheterodyne
SSB (A3J, USB/LSB), CW (A1), FM (F3)
SSB, CW 10.7MHz
FM 10.7MHz, 455KHz
SSB, CW Less than 0.5 microvolts for 10dB S+N/N
FM Моге than 30dB S+N+D/N+D at 1 microvolt
Less than 0.6 microvolts for 20dB Noise quieting
Less than 0.4 microvolts
More than 60dB
SSB, CW More than +1.2KHz at —6dB point
Less than +2.4KHz at —60dB point
FM More than +7.5KHz at —6dB point
Less than +15KHz at —60dB point
More than 1.5W
8 ohms
