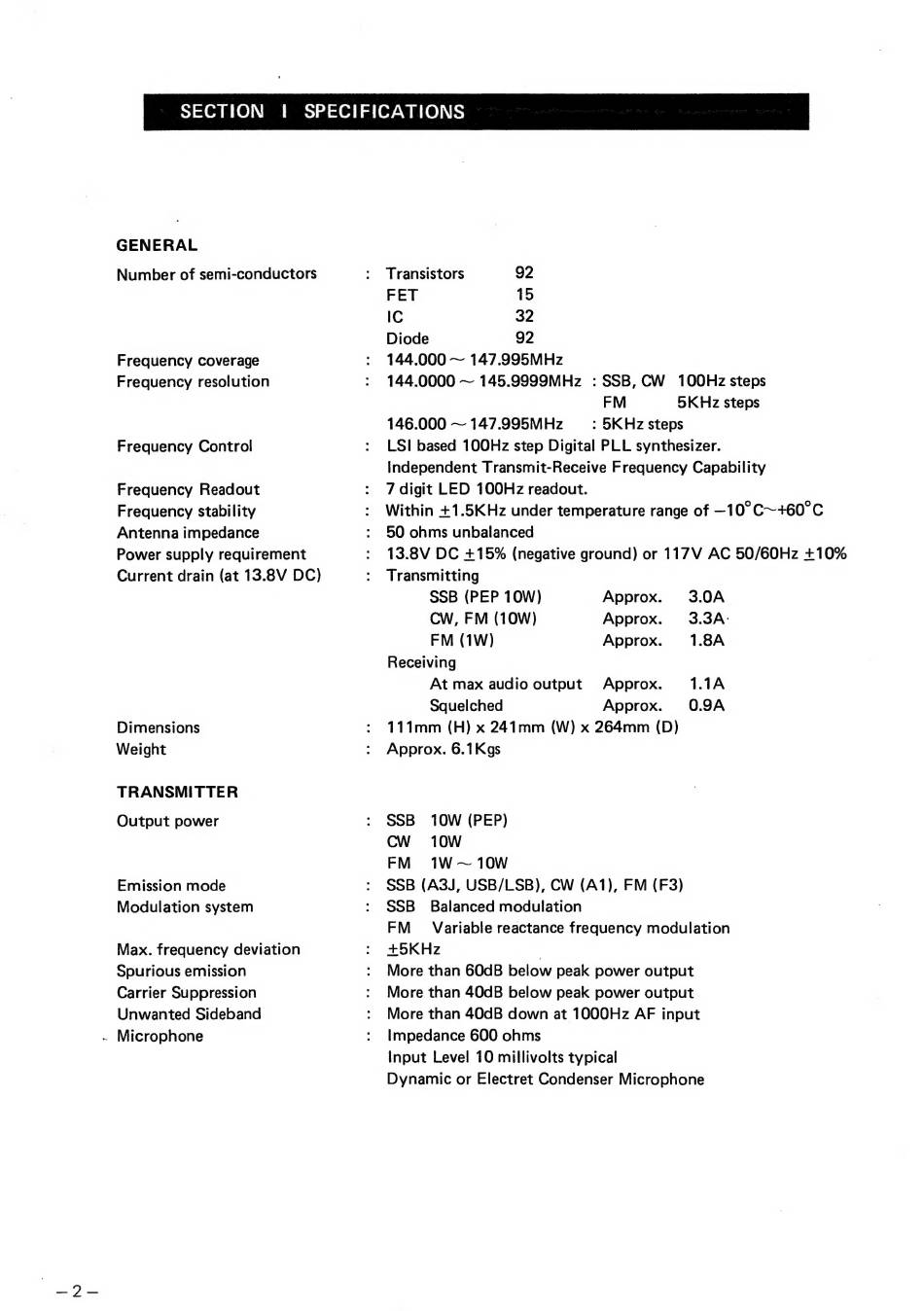

SECTION І SPECIFICATIONS |
GENERAL
Number of semi-conductors : Transistors 92
FET 15
IC 32
Diode 92
Frequency coverage : 144.000 — 147.995MHz
Frequency resolution : 144.0000 ~ 145.9999MHz : SSB, CW 100Hz steps
FM 5KHz steps
146.000 ~ 147.995MHz : 5KHz steps
Frequency Control : LSI based 100Hz step Digital PLL synthesizer.
Independent Transmit-Receive Frequency Capability
Frequency Readout : 7digit LED 100Hz readout.
Frequency stability : Within +1.5KHz under temperature range of —10°C~+60°C
Antenna impedance : 50 ohms unbalanced
Power supply requirement : 13.8V DC +15% (negative ground) ог 117V АС 50/60Hz +10%
Current drain (at 13.8V DC) : Transmitting
SSB (PEP 10W) Approx. 3.0A
CW, FM (10W) Approx. 3.3A:
FM (1W) Approx. 1.8A
Receiving
At max audio output Approx. 1.1A
Squelched Approx. 0.9A
Dimensions : 111mm (H) x 241mm (W) x 264mm (D)
Weight : Approx. 6.1Kgs
TRANSMITTER
Output power : SSB 10W (PEP)
OW 10
FM 1W~ 10W
Emission mode : SSB (A3J, USB/LSB), CW (A1), FM (F3)
Modulation system : SSB Balanced modulation
FM Variable reactance frequency modulation
Max. frequency deviation : +5KHz |
Spurious emission : More than 60dB below peak power output
Carrier Suppression : More than 40dB below peak power output
Unwanted Sideband : More than 40dB down at 1000Hz AF input
. Microphone : Impedance 600 ohms
Input Level 10 millivolts typical
Dynamic or Electret Condenser Microphone
