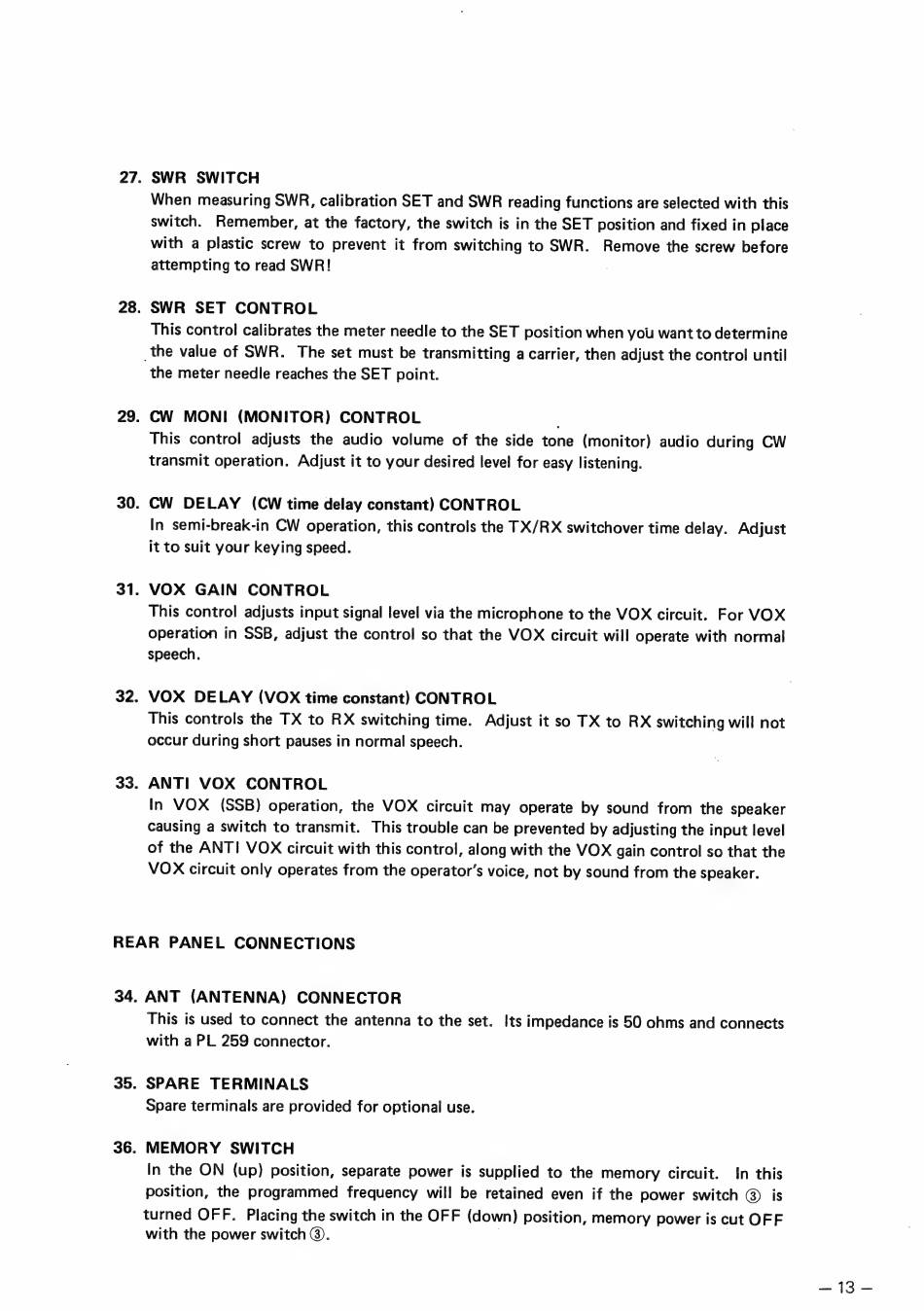

Icom IC-211 Instruction Manual page 14

27.
28.
29.
30.
31.
32.
33.
SWR SWITCH
SWR SET CONTROL
This control calibrates the meter needle to the SET position when you want to determine
the meter needle reaches the SET point.
CW MONI (MONITOR) CONTROL |
This control
adjusts the audio volume of the side tone (monitor) audio during CW
transmit operation. Adjust it to your desired level for easy listening.
CW DELAY (CW time delay constant) CONTROL
In semi-break-in CW operation, this controls the TX/RX switchover time delay. Adjust
it to suit your keying speed.
VOX GAIN CONTROL
VOX DELAY (VOX time constant) CONTROL
This controls the TX to RX switching time.
Adjust it so TX to RX switching will not
occur during short pauses in normal speech.
АМТ! VOX CONTROL
REAR PANEL CONNECTIONS
34.
35.
36.
ANT (ANTENNA) CONNECTOR
This is used to connect the antenna to the set.
Its impedance is 50 ohms and connects
with a PL 259 connector.
SPARE TERMINALS
Spare terminals are provided for optional use.
MEMORY SWITCH
In the ON (up) position, separate power is supplied to the memory circuit.
Іп this
position, the programmed
frequency will be retained even if the power switch (3) is
ud
