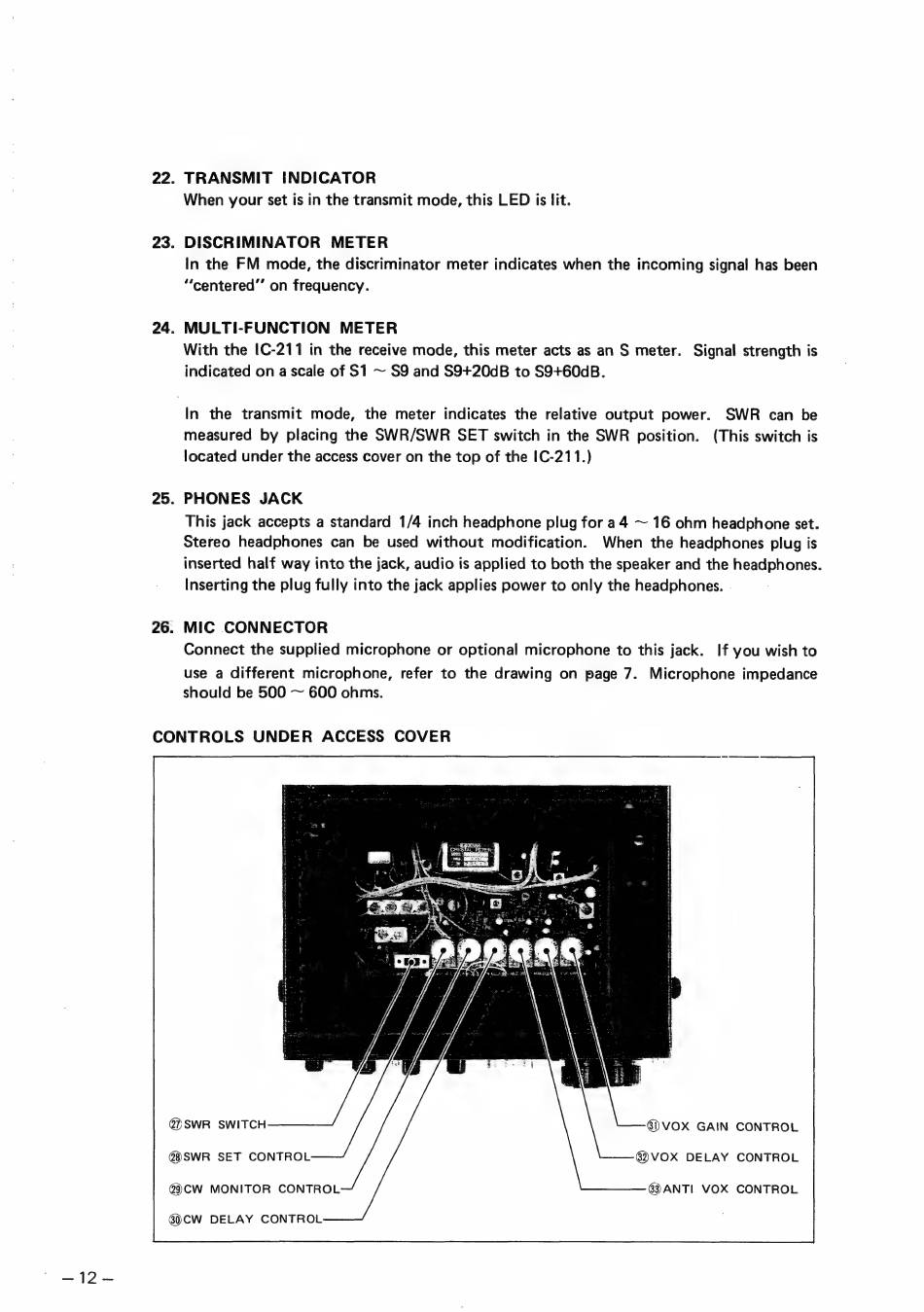

Icom IC-211 Instruction Manual page 13

ER ы.
22.
23.
24.
25.
26.
TRANSMIT INDICATOR
When your set is in the transmit mode, this LED is lit.
DISCRIMINATOR METER
In the FM mode, the discriminator meter indicates when the incoming signal has been
"centered'' on frequency.
MULTI-FUNCTION METER
With the 1С-211 in the receive mode, this meter acts as an S meter. Signal strength is
indicated on a scale of S1 ~ S9 and S9+20dB to S9+60dB.
In the transmit mode, the meter indicates the relative output power. SWR can be
measured by placing the SWR/SWR SET switch in the SWR position. (This switch is
located under the access cover on the top of Ше 1С-211.)
PHONES JACK
This jack accepts a standard 1/4 inch headphone plug for a 4 — 16 ohm headphone set.
Stereo headphones can be used without modification. When the headphones plug is
inserted half way into the jack, audio is applied to both the speaker and the headphones.
Inserting the plug fully into the jack applies power to only the headphones. ·
MIC CONNECTOR
Connect the supplied microphone or optional microphone to this jack. If you wish to
use a different microphone, refer to the drawing on page 7. Microphone impedance
should be 500 — 600 ohms.
CONTROLS UNDER ACCESS COVER
@ SWR SWITCH
60 VOX GAIN CONTROL
Gà SWR SET CONTROL 62 VOX DELAY CONTROL
су MONITOR CONTROL 63 ANT! VOX CONTROL
8) СМ DELAY CONTROL
