Summary of Contents for Mercia Garden Products 03DTSHCR0808FGD2TW-V3

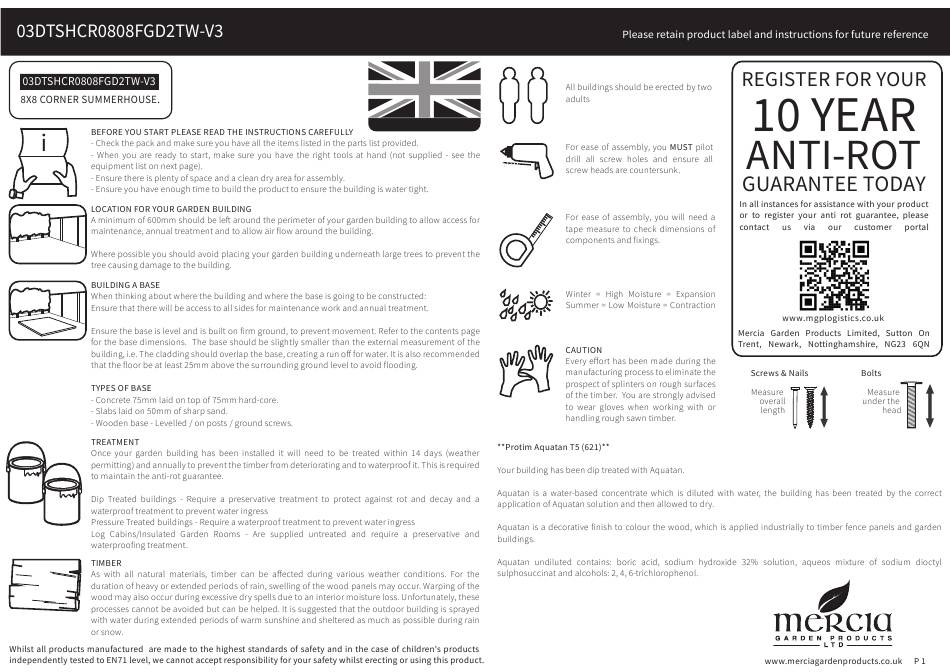

- Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...
-
Page 2: Any Questions
ANY QUESTIONS? Scan the QR code to contact us via our customer portal. - Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
- Page 4 03DTSHCR0808FGD2TW-V3 Overall Dimensions: Width = 2545mm Green Label Blue Label Depth = 2546mm Height = 2118mm Base Dimensions: Width = 2429mm Depth = 2430mm Roof QTY 2 Angled Roof QTY 1 Master Door QTY 1 Secondary Door QTY 1 728x2516mm...
-
Page 5: Missing Parts
Screw Pack End View Rear Roof Frame - 28x28x2517mm QTY 1 There may be extra screws present in the screw pack. FS2828-2517mm End View 60mm Screw x 6 30mm Screw x 43 Front Roof Frame - 28x28x1473mm QTY 1 50mm Screw x 108 25mm Screw x 40 FS2828-1473mm End View... - Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts needed - No. 3 QTY 1 No. 4 QTY 1 base ready to install your building onto. No. 5 QTY 1 No. 6 QTY 1 Step 1 IMPORTANT: Pre-drill before xing screws.
- Page 7 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts needed - No. 3 QTY 1 No. 2 QTY 2 No. 4 QTY 1 Place the Door Panel (No. 1) and the Using the same method outlined in Step 5 Window Panels (No.
- Page 8 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 14 QTY 1 Parts needed - No. 9 QTY 2 No. 19 QTY 1 No. 10 QTY 1 No. 30 QTY 2 Layout the Roof Panels (No.
- Page 9 Step 11 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 1 Parts needed - No. 15 QTY 1 No. 10 QTY 1 No. 16 QTY 2 *INTERNAL VIEW* Fit the Door Strip (No. 15 & 16) to the Place both Roof sections (No.
- Page 10 Step 15 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 32 QTY 2 Parts needed - No. 29 QTY 2 No. 33 QTY 1 No. 34 QTY 2 *External View* *Internal View* Attach the press lock (No.
- Page 11 Step 16 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 27 QTY 2 No. 28 QTY 1 Fix the rain guards (No.27) above each window, securing in place using 2x50mm screws per guard, ensuring to screw through the framing. Fix the rain guard (No.
- Page 12 Step 18 Parts Needed: No. 35 QTY 1 *Aerial view of roof* No. 38 QTY 1 Cut the Sand Felt (No. 35) into three sheets measuring: 750x300mm Front (O -cut) 1 x 3500mm (L) x 1000mm (W) 1 x 3780mm (L) x 1000mm (W) 1x 2500mm (L) x 1000mm (W).
- Page 13 Step 19 Parts Needed: No. 36 QTY 1 No. 37 QTY 1 No. 38 QTY 1 *Aerial view of roof* Cut the Green Capping Felt (No. 36) into one sheet measuring: 2060mm (L) x 300mm (W). Front Cut the Green Felt (No. 37) into three sheets measuring: 2060x300mm 1 x 2150mm (L) x 1000mm (W) 2 x 3780mm (L) x 1000mm (W).
- Page 14 Step 20 Step 21 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 2 Parts needed - No. 20 QTY 4 No. 24 QTY 2 At the back of the building, measure the Fit the Cover Trims (No.17) to the back of distance from the side to the back using the building onto the jo ins of the...
- Page 15 Step 22 Step 23 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 21 QTY 3 Once constructed, apply a preserving Measure the distances across the front treatment and a waterproo ng treatment and sides of the building using a tape to your garden building as soon as measure, as shown.
- Page 16 ANY QUESTIONS? Scan code contact us via our customer portal.
