Mercia Garden Products 03DTSHCR0808FGD2TW-V2 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHCR0808FGD2TW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHCR0808FGD2TW-V2

Summary of Contents for Mercia Garden Products 03DTSHCR0808FGD2TW-V2

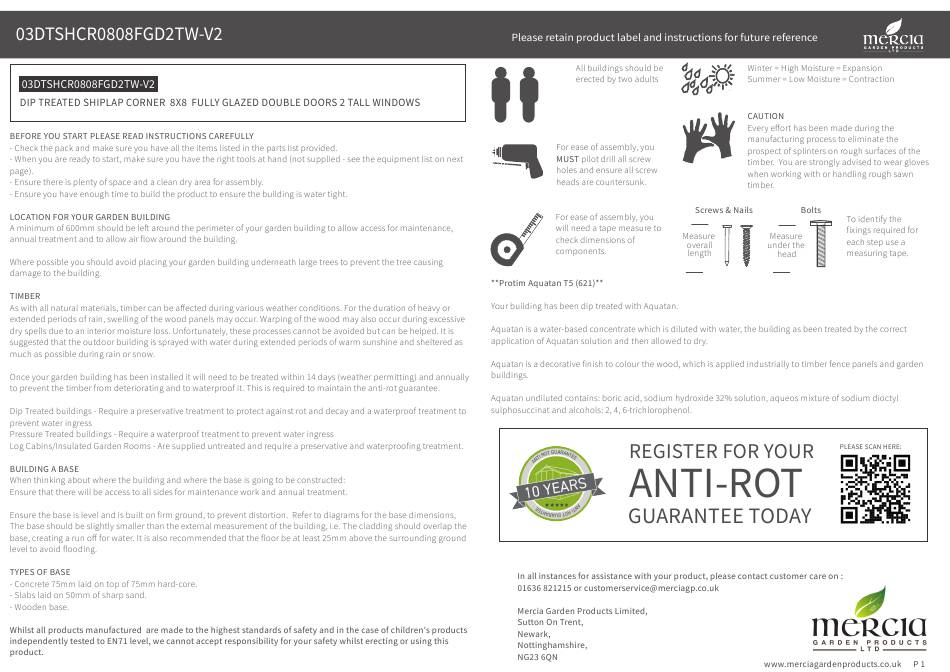

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly Locating Block 28x28x239mm QTY 2 please make sure you have a FS2828-239mm suitable base ready to erect your building Roof Support Block 44x58x350mm QTY 1 F4458-G-390mm Master Door Secondary Door Door Strip 12x40x1261mm QTY1 QTY 1 QTY 1 S1240-1261mm MADE IN GREAT BRITAIN AI-STDFGMD603X1715-V1...

  • Page 4: Pre-Assembly

    Step 1 IMPORTANT: Pre-drill before xing screws. Parts needed - No.1 QTY 1 Turn Button Qty 2 No.11 QTY 1 Felt QTY 1 L-Bracket Qty 2 Butt Hinge Qty 6 PI-07-0034 No.12 QTY 1 PI-01-0003 PI-07-0012 PI-07-0066 No.32 QTY 6 Lay the Door Panel (No.1) on a at surface and Place the doors (No.11 and No.12) within Handle Qty 2...
  • Page 5 Step 3 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No.7 QTY 1 Parts needed - No.5 QTY 1 No.8 QTY 1 No.6 QTY 1 No.18 QTY 1 Place oors (No.7 and No.8) on a rm and level base, ensure base has suitable drainage free Place the two already assembled Left Panels (No.5 and No.6) against the oor...
  • Page 6 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 25 QTY 1 Parts needed - No.9 QTY 2 No. 26 QTY 1 No.10 QTY 1 Place the Rear Panel Framing (No.25) on top Layout the Roof Panels (No.9 and No.10) of the Right Panels.
  • Page 7 Step 13 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No.15 QTY 1 Parts needed - No.9 QTY 1 - No.16 QTY 2 No.10 QTY 1 Fit the Door Strip (No.15 and No.16) Place both Roof sections (No.9 and to the framing of the door panel, No.10) on top of the building, ensure...
  • Page 8 Step 17 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 4 Parts needed - No.33 QTY 2 INTERIOR No.34 QTY 1 Fit the Cover Trims (No.17) to the front of Secure the barrel bolts (No.33) to the top &...
  • Page 9 Step 19 **If Shed add on Pack has been purchased, IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 2 please move onto the Add on Pack Instructions** - No. 24 QTY 2 Step 18 Fit the Cover Trims (No.17) to the back of the building onto the joins of the Parts needed - No.

  • Page 10: After Treatment

    It is ESSENTIAL that you apply wood treat- ment immediately after the building has been assembled. AFTER TREATMENT: score around protective cover on glazing and carefuly peel covering back...
