Mercia Garden Products 03DTSHCR0707FGD2TW-V2 Quick Start Manual

7x7 corner summerhouse
Hide thumbs Also See for 03DTSHCR0707FGD2TW-V2:

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHCR0707FGD2TW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHCR0707FGD2TW-V2

Summary of Contents for Mercia Garden Products 03DTSHCR0707FGD2TW-V2

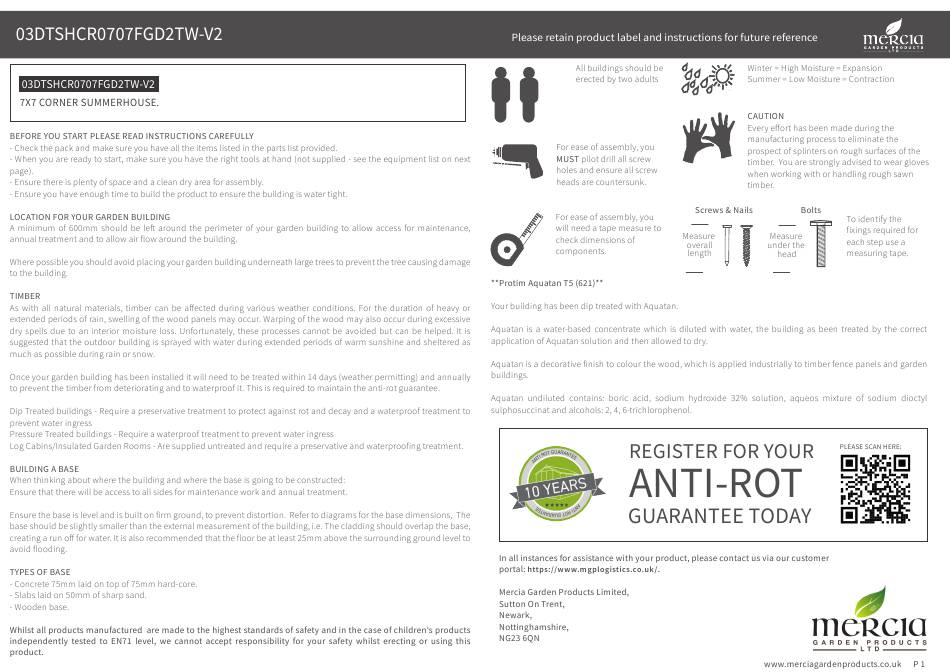

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 Before assembly Door Strip 12x40x1740mm QTY 2 please make sure you have a S1240-1740mm suitable base ready to erect your building Cover Trim 12x40x1900mm QTY 2 S1240-1900mm Cover Trim 12x40x1918mm QTY 4 S1240-1918mm Panel Joint Frame 28x28x1806mm QTY 1 MADE IN GREAT BRITAIN FS2828-1806mm Overall Dimensions: Base Dimensions:...

  • Page 5: Pre-Assembly

    Nail Bag Step 1 IMPORTANT: Pre-drill before xing screws. Parts needed - No.1 QTY 1 There may be extra screws present in the nail bag No.11 QTY 1 60mm Screw x 6 30mm Screw x 53 No.12 QTY 1 No.32 QTY 6 50mm Screw x 92 25mm Screw x 40 40mm Screw x 27...
  • Page 6 Step 3 Step 2 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No.7 QTY 1 Parts needed - No.3 QTY 1 No.8 QTY 1 No.4 QTY 1 No.5 QTY 1 Place oors (No.7 and No.8) on a rm No.6 QTY 1 and level base, ensure base has suitable drainage...
  • Page 7 Step 5 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 15 QTY 1 Parts needed - No.5 QTY 1 No.6 QTY 1 No. 26 QTY 1 No.19 QTY 1 Place the Rear Panel Framing (No.26) Place the two already assembled Left on top of the Right Panels.
  • Page 8 Step 9 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No.9 QTY 1 Parts needed - No.9 QTY 1 No.10 QTY 1 No.10 QTY 1 Layout the Roof Panels (No.9 & 10) Place both Roof sections (No.9 &10) on a at level surface and position on top of building, ensure the roof them as shown in the diagram.
  • Page 9 Step 15 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. *External View* Parts needed - No. 29 QTY 2 No. 35 QTY 2 Once the roof is xed, secure the building to the oor. Fix the Fix the door handles (No.35) to the panels onto the oor using 50mm outside of the master and secondary...
  • Page 10 **If a Shed add on Pack has been purchased, Step 17 IMPORTANT: Pre-drill before xing screws. Parts Needed - No.27 QTY 2 please move onto the Add on Pack Instructions** No.28 QTY 1 Step 19 Fix the rain guards (No.27) above Parts needed - No.
  • Page 11 Step 20 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 2 - No. 25 QTY 2 Fit the Cover Trims (No.17) to the back of It is ESSENTIAL that you apply wood treat- the building onto the joins of the panels, ment immediately after the building has secure using 3x30mm screws per cover trim.
  • Page 12 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
