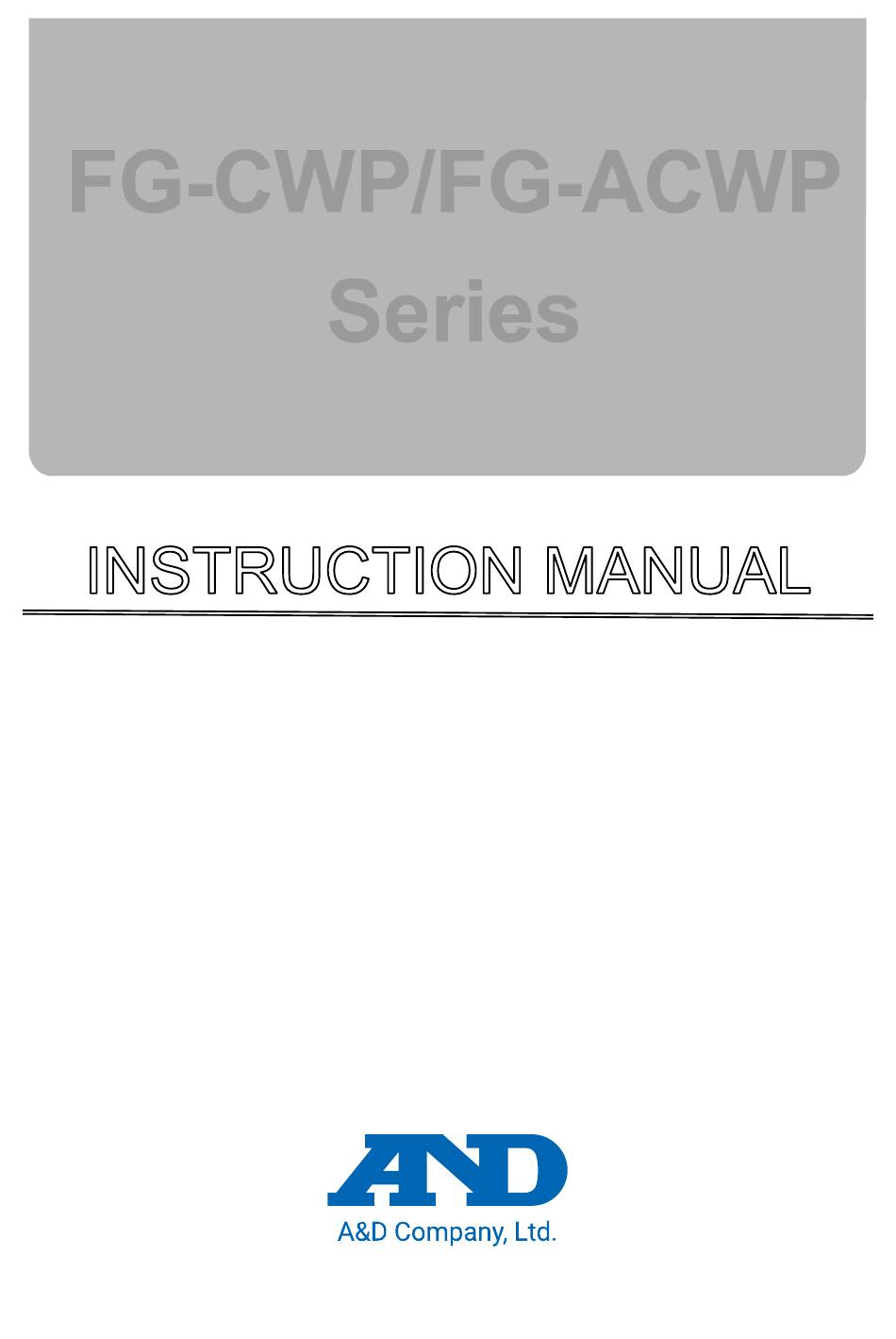

- Page 1 FG-CWP/FG-ACWP Series Waterproof Digital Platform Scale FG-30KCMWP/FG-30KACMWP FG-60KCLWP/FG-60KACLWP FG-150KCLWP/FG-150KACLWP 1WMPD4004367C...
- Page 2 A&D Company Ltd. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice. Windows, Word and Excel are registered trademarks of the Microsoft Corporation.
-
Page 3: Table Of Contents
7.2. Installation ............................ 14 Basic Operation ..........................15 8.1. Turning Power On and Off ......................15 8.1.1. Mobile Battery (FG-CWP series (USB power model) ............... 16 8.2. Basic Operation ........................... 16 8.3. Readability ........................... 17 Counting Function ..........................17 10. Comparator Function ........................18 10.1. - Page 4 15.5. Restoring Function Tables to Factory Default................31 15.6. Parameter List ..........................32 16. Communication ..........................36 16.1. USB Interface (FG-CWP series (USB power model) only ) ............36 16.2. Data Format ..........................38 17. Options ............................... 44 17.1. Option List ............................ 44 18.
-
Page 5: Compliance
□ Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of Class A digital devices pursuant to Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when equipment is operated in a commercial environment. -
Page 6: Introduction
□ The scales use a backlit liquid crystal display to enable viewing in dim light. □ For the FG-CWP series (USB power model), power is supplied via USB. You can use an AC adapter or a mobile battery. You can also send weighing data to a PC using a USB cable. -
Page 7: Cautions
□ Install the scale in an indoor location out of direct sunlight with stable temperature and humidity that is free of drafts and vibrations, on a solid and level surface and with a stable power supply. -
Page 8: Precautions For Weighing
□ Periodically confirm that weighed values are correct. □ The panel on the rear of the display unit should be kept closed during use to ensure it is dustproof and water proof. 4.3. Precautions for Storing □ Do not disassemble the scale. -
Page 9: Items Included
5. Items Included The following items are packed. <FG-CWP series (USB power model)> ● Main Unit ● Quick Start Guide FG-30KCMWP FG-60KCLWP FG-150KCLWP ● USB cable (Approx. 3m) ● AC Adapter (Image diagram) <FG-ACWP series (AC power model)> ● Main Unit ●... -
Page 10: Part Names
6. Part Names <FG-CWP series (USB power model)> Display unit (SUS304) Rating Label USB Cable（Approx. 3m） Serial Number USB Plug Pole （SUS304） Weighing Pan （SUS304） Load Cell Knob for Angle Cable Adjustment Bubble Sprit Level Base Unit Rear of Display Unit （SUS304）... -
Page 11: Display And Symbols
ZERO This is lit when the scale is at the zero point (reference point for weighing). “ kg”, “ g” , “ pcs” , “ oz” and “lb ” is lit. Weighing Units Note: “ g” is only used with the FG-30KCMWP/FG-30KACMWP. -
Page 12: Operation Keys
ZERO key when the weighed value is stable within ±2% of the weighing capacity sets the zero point there and the zero point indicator ◄ is lit when zero is displayed. If tare function is in use, the net is deleted. - Page 13 ◄ and the net indicator ◄ light up, and zero is displayed. The range in which power on tare is executed is +50% (+10% for the Legal for Trade models) or more of the weighing capacity with respect to zero during sensitivity adjustment.
-
Page 14: Setup
7. Setup 7.1. Attaching Pole to Base 1. Take the base unit and the pole out of the Display Unit packaging box while being careful not to pull the load cell cable. Pole 2. Remove the weighing pan from the base. -
Page 15: Basic Operation
1. Connecting to power supply <For FG-CWP series (USB power model)> Insert the USB plug into the AC adapter included with this product and connect it to the power supply. □ Confirm that local voltage and receptacle type are correct. -
Page 16: Mobile Battery (Fg-Cwp Series (Usb Power Model)
8.1.1. Mobile Battery (FG-CWP series (USB power model) only) If using a mobile battery □ Turn off the scale and disconnect the AC adapter if using a mobile battery. □ Connect the USB plug to the mobile battery. Refer to "15. -
Page 17: Readability
This function stores the mass (unit weight) of a single item from a known number of sample masses, and calculates and displays the number of items based on that value and the total mass. □ The unit mass is stored in non-volatile memory Press even when power is turned off. -
Page 18: Comparator Function
10. Comparator Function The comparator function compares the weighed value against the set values and displays the results using LEDs (yellow / green / red). Comparison is done based on the following table, and the results are displayed/output. LED Display... -
Page 19: How To Operate
Max resolution 1.000 kg 30.000 kg / 0.001 kg Counting mode 1000 pcs 10.1. How to Operate Press and hold the SAMPLE key while in mass display to enter comparator setting STABLE mode. ZERO Press and Hold Display the selected memory number (0-9). -
Page 20: Checking The Hi/Lo Value
PRINT key to change the memory number display. Press Press the MODE key. LO is lit and the lower limit value of the memory number selected is displayed. Press Press the MODE key. HI is lit and the upper limit value of the memory number selected is displayed. -
Page 21: Setting Hi/Lo Value
PRINT key to change the memory number display. Press Press the MODE key. LO is lit and the lower limit value is displayed. Press the TARE key. The digit of the value blinks. Change the value with the keys below. -
Page 22: Display Hold Function
Display Hold Condition The weighed value is held and displayed when it becomes stable at 5d or more, or when the weighing value is 5d or more and fluctuates within the "Display hold width" for 2 seconds. -
Page 23: Auto-Tare Function
□ Take-away check weighing This is a method of comparing against negative mass values. After a container with objects in it is placed on the weighing pan and tared, take objects away while staying in the OK range to compare masses. -
Page 24: Sensitivity Adjustment
Method 1 (using operation keys) 1. Confirm that the scale is in weighing mode (display shows “kg” (“g”), “lb”, “oz” or “pcs”). 2. Press and hold the TARE key for 4 sec. or longer. Release the key when displayed. (Then go to “14.2. - Page 25 Press Press Weighing mode Note: Use the MODE key to select the item to execute, and then execute with the TARE key. To end sensitivity adjustment mode, press the ZERO key or CAL switch. This will Note: return you to weighing mode.
-
Page 26: Sensitivity Adjustment Using A Weight
Note: Prepare a weight. (A weight equivalent to the weighing capacity of the scale to be adjusted is recommended. However, the value for the weight can be set (changed).) 1. Turn on the scale and supply it with power for 30 minutes or longer. □ Change the parameter for the function table item... -
Page 27: Correcting For Gravitational Acceleration
(select) Moves the blinking digit Increases the blinking digit by 1 Press 5. Press the TARE key to display and save the parameter. 6. To adjust using a weight, return to step 2 of “14.2. Sensitivity Adjustment Using a Weight”. -
Page 28: Restoring Sensitivity Adjustment Value To Factory Default
You will be returned to the status in step 2. Press 5. If is displayed, press the TARE key to restore to factory default and display To end setting, press the ZERO key or CAL switch. This will return you to weighing mode. -
Page 29: Function Table
15. Function Table This is the function for viewing and changing items that determine the operation of the scale. Function table values are stored in non-volatile memory even when the display is turned off. Parameter Item 15.1. Parameter Setting Procedure 1. -
Page 30: Setting Example
15.2.1. Setting Example To set auto power-off function to “Enabled”, and the display resolution function to “1/3000”: 1. Display the class See“15.1. Parameter Press Setting Procedure”. 2. Press the TARE key to display Each pressing switches the parameter 3. Press the PRINT key to display displayed. -
Page 31: Restoring Function Tables To Factory Default
□ To cancel the operation, press the ZERO key.The display turns off automatically. □ In addition to the function tables, the unit mass of the counting function and the limit values of the comparator function are also restored to the factory default. -
Page 32: Parameter List
Changes the value for readability “d”. (Resolution = Readability / Weighing capacity) Stability band width: When the weighed value is within a certain width (stability band width) and a certain amount of time (stability band time) has passed, the scale judges that weighing is stable and lights up the stability indicator. - Page 33 Bright (100% brightness) Decimal point Dot (.) Comma (,) GLP output ON (DATE and TIME : PC date and time) ON (DATE and TIME : blank (handwritten)) Serial interface baud rate 2400 bps 4800 bps 9600 bps ...
- Page 34 Compare all data Compare all stable data Compare data except that at -4d to +4d Compare stable data except that at -4d to +4d Compare all data at +5d and above Compare stable data at +5d and above Comparator ordinary ...
- Page 35 ID number for GLP output ID number setting Password lock function ON + key restriction (Only ZERO and TARE keys can be operated during weighing) Password registration Administrator password input : factory settings d: readability (scale interval or "division") FG-CWP series (USB power model) only.
-
Page 36: Communication
1. Connect it to your PC. The driver will be installed automatically. If the driver is not installed, please refer to "Details on how to use and examples " below and install the driver. 2. Confirm the COM port number. - Page 37 3. Click the Start button of RsCOM of WinCT. Transmission and receiving of data is enabled. 4. Press the scale's PRINT key to output weighed values from the scale and receive them via RsCom. Note: The method for outputting weighed values can be changed in the scale’s function tables.
-
Page 38: Data Format
LO : When the weighed value is low - - : When not comparing □ The data consists of nine characters including the polarity and decimal point. □ There are three types of units, as shown below. _ k g :Mass data “kg”... - Page 39 (auto print width) from the standard "zero display", and the comparator result is OK and the stable value mark is on, the weighed value will be output once. Also, if the PRINT key is pressed while the stable value mark is on, the weighed value will be output once.
- Page 40 Baud rate Select the baud rate according to the device to be connected. □ 2400 bps ( □ 4800 bps ( □ 9600 bps ( Command mode In command mode, the scale is controlled by commands from an external device such as a computer.
- Page 41 □ To tare the weighed value when weighed value is stable (no response if Command T C Response When zeroing operation is possible <AK> □ To switch the weighing unit (no response if Command U C Response When zeroing operation is possible <AK>...
- Page 42 Error code Description and how to resolve Communications error EC,E00 A protocol error occurred in communications. Check the format and the baud rate. Undefined command error EC,E01 An undefined command was received. Check the command. Not ready The command received cannot be processed.
- Page 43 □ To set the HI limit value (no response if Sends a six-digit number that does not contain “+/-” or decimal point Command H Response H □ To set the LO limit value (no response if Sends a six-digit number that does not contain “+/-” or decimal point Command L O Response L O □...
-
Page 44: Options
Bluetooth External Display AX-TB301 AC adapter (FG-CWP series (USB power model) only.) See the optional instruction manual for details. Note: For the Legal for Trade models, the Load Cell / CAL Cover is sealed, so the FG-27CWP cannot be installed, removed, or the DIP switch settings changed. -
Page 45: Id Number And Gmp, Glp
□ “Start Block” and “End Block” for GMP, GLP data 18.1. ID Number Setting Procedure 1. With the display turned off, while pressing and holding the TARE key, press the ON/OFF key to turn the display on and display the class . -
Page 46: Gmp, Glp Report
18.2. GMP, GLP Report □ To output the GMP, GLP report to a personal computer, select the function setting ・ ：DATE and TIME are PC date and time ・ ：DATE and TIME are blank (handwritten) ・Sensitivity adjustment Report 1. Perform sensitivity adjustment according to “14.2. - Page 47 CAL switch □ This test does not perform sensitivity adjustment. 1. In weighing mode, press and hold the CAL switch until1 appears, and then release the switch, or, press and hold the TARE key for five seconds until Release the key appears and release the key.
- Page 48 : Line feed, ASCII 0Ah ・Output of “Title block” and “End block” When weighed values are recorded as the GMP, GLP report, “Title Block” and “End Block” are added at the beginning and at the end of the group. Press and ・Title Block...
- Page 49 End Block Press and 3. Press and hold the PRINT key until appears, hold and then release the key. The scale outputs the “End Block.” To output the “End block ” 4. The scale automatically returns to weighing mode. Title block...
-
Page 50: Password Lock Function
In the factory default setting, the password lock function is disabled. To enable/disable the password lock function and to register the password, refer to the class "15.6. Parameter List”. Set the password according to the table below. For 19.2. -
Page 51: To Changing The Function Table After Setting Lock 1 Or 2
To Changing the Function Table After setting lock 1 or 2 19.2. With the display turned off, while pressing and holding the TARE key, press the ON/OFF key to turn the display on and display the software version X.XX . After viewing the software version X.XX , choose between... -
Page 52: To Changing The Function Table In Gue5T
↑↓ Bright : factory settings d: readability (scale interval or "division") Automatic power off: Turns the display off when the specified interval has passed, while the value is zero, the display is stable and there is no key operation. -
Page 53: Forgotten Password
Compare all data Compare all stable data Compare data except that at -4d to +4d Compare stable data except that at -4d to +4d Compare all data at +5d and above Compare stable data at +5d and above Comparator ordinary ... -
Page 54: Legal-For-Trade Mode Instructions
The default setting is in normal-resolution mode. When the scale is to be used in a legal-for-trade (LFT) application, follow these instructions to put into LFT mode. You may also be required to have the FG-CWP/FG-ACWP verified and sealed in accordance with local weights and measures regulations. - Page 55 If the power is switched on with a load within ± 10% of the weighing capacity at the sensitivity adjustment zero point (power-on zero range), the scale is zeroed and the ZERO indicator turns on. If the load is beyond the power-on zero range, the scale is tared and the ZERO and the NET indicators turn on.
-
Page 56: Maintenance
"4. Cautions" regarding use. ・Refer to " 21.2 .Error display" and corresponding mode for displayed error code. ・Refer to "14. Sensitivity Adjustment" regarding precision weighing. ・Periodically check the accuracy of weighing. Adjust the scale, if it is moved to another location or the environment has changed. -
Page 57: Error Code Table
21.3. Error Code Table When any of the following errors are displayed, try turning the display off and on again. Display Content is displayed The temperature sensor has failed. is displayed The memory (circuit) has failed. is displayed The internal circuitry has failed. -
Page 58: Specifications
Installation environment Indoor use only Altitude Altitude up to 2,000 m <FG-CWP Series (USB power model)> Power supplied from AC adapter, mobile battery, or USB Type-A port USB Cable Length: Approx. 3 m Power Supply (USB cable is also used for communication) <FG-ACWP Series (AC power model)>... -
Page 59: Dimensions
22.2. Dimensions FG-30KCMWP/FG-30KACMWP FG-60KCLWP/FG-60KACLWP FG-150KCLWP/FG-150KACLWP... -
Page 60: Gravity Acceleration Map
Gravity Acceleration Map Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.800 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.786 m/s Bangkok 9.783 m/s Milan 9.807 m/s Birmingham 9.813 m/s Moscow 9.816 m/s Brussels 9.811 m/s New York... - Page 61 MEMO...
- Page 62 MEMO...
- Page 63 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 64 A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 47747 Warm Springs Blvd, Fremont, California 94539, U.S.A. Tel: [1] (800) 726-3364 Weighing Support:[1] (888) 726-5931 Inspection Support:[1] (855) 332-8815 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420...
