Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it's
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on signal
transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
• WyreStorm recommends using pre-terminated USB cables due to the complexity of these connector types. Using pre-terminated cables will ensure that
these connections are accurate and will not interfere with the performance of the product.

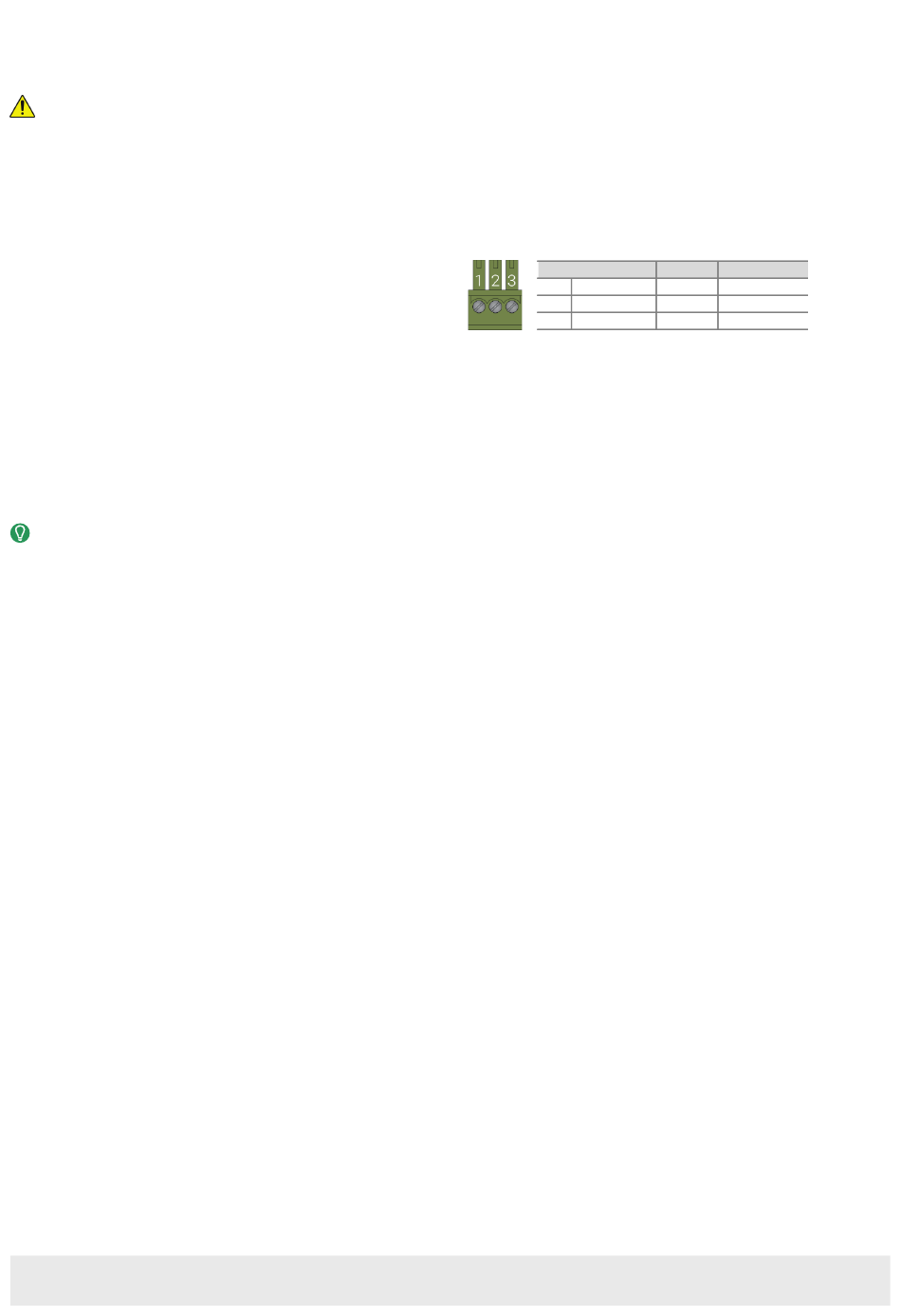

RS-232 Wiring
The COM-MIC-HUB uses a 3-pin RS-232 with no hardware flow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
Troubleshooting
No Audio
• Verify that power is being supplied to the device.
• Verify that all connections are not loose and are functioning properly.
No or Intermittent 3rd party Device Control
• Verify that the RS-232 cables are properly terminated following the
and Connections section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
Copyright © 2024 WyreStorm ProAV Corporation |
COM-MIC-HUB Quickstart Guide | 240923
Wiring
wyrestorm.com
3 of 4
WyreStorm Connector
Pin 1 TX (Transmit) ---> To ---> RX (Receive)
Pin 2 RX (Receive) ---> To ---> TX (Transmit)
Pin 3 G (Ground) ---> To ---> G (Ground)
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
3rd Party Device
