Wyrestorm COM-MIC-HUB Quick Start Manual page 2

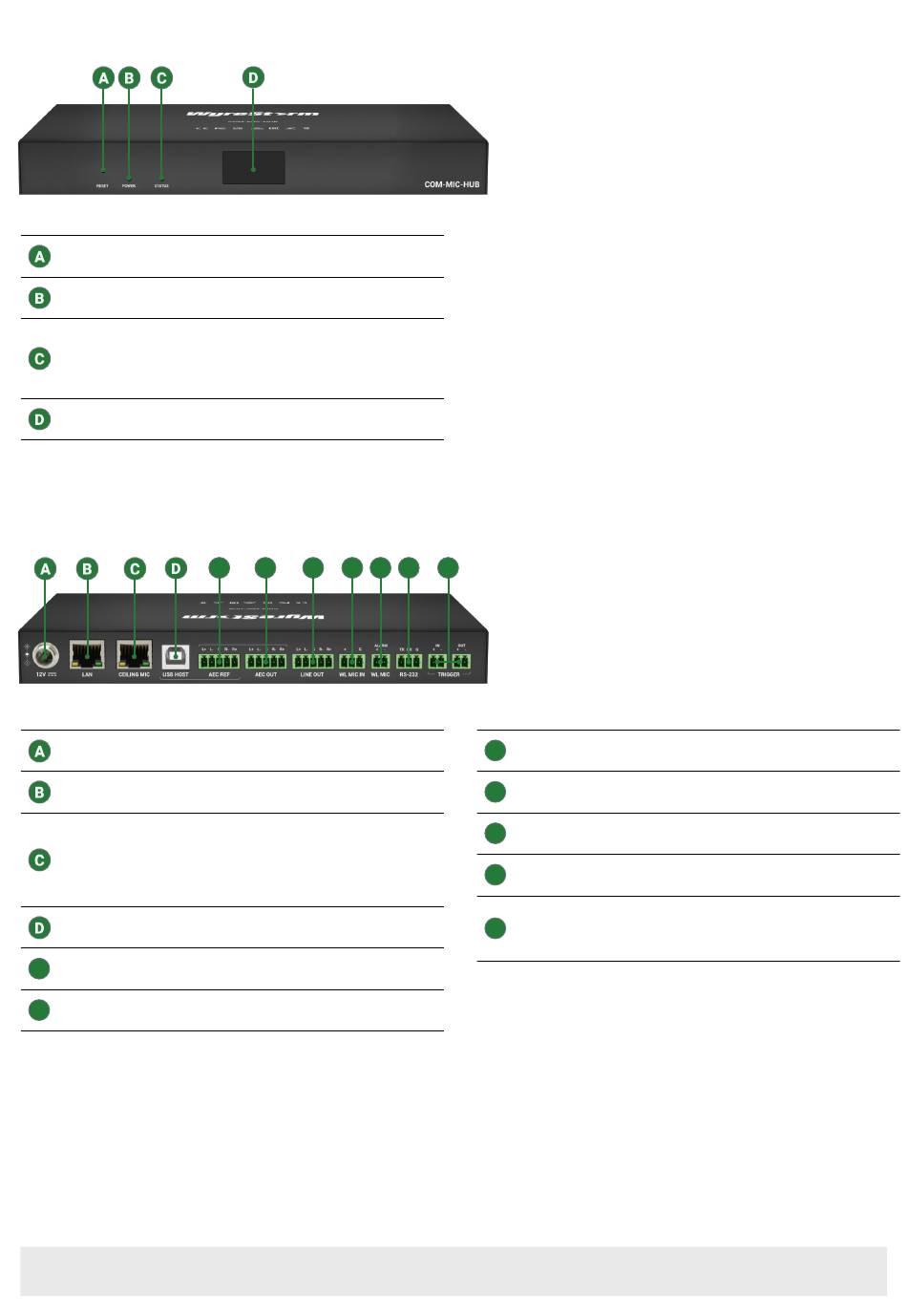

COM-MIC-HUB (Front)
RESET
Power LED
Status LED
LCD Display
COM-MIC-HUB (Rear)
Power Input
LAN
Ceiling Mic
USB Host
E
AEC REF
F
AEC OUT
Note: "AEC REF" and "AEC OUT" are designed to be used together.
You can select either AEC REF & AEC OUT ports or USB HOST port to
connect to the PC. When both are connected to the PC, only one option is
available.
Copyright © 2024 WyreStorm ProAV Corporation |
COM-MIC-HUB Quickstart Guide | 240923
Use a PIN to reset to factory settings
Solid: The unit is powered On
Off: The unit is powered Off
On: The device is working properly.
Blinking: The device is being upgraded /
The device is reset to factory defaults.
Off: The device is powered off.
Displays the device's IP address and
firmware version.
E F G H
12V 2A Screw Down Jack
8-pin RJ-45 female
Connect for Web UI and Telnet control
8-pin RJ-45 female
Connect to one or multiple cascading ceiling
microphones.
Note: The device allows up to five
microphones to be cascaded together.
USB 2.0
5-pin Phoenix: Connect to a audio device for
receiving reference signal.
5-pin Phoenix: Connect to a audio device for
transmitting reference signal.
wyrestorm.com
I J K
G
LINE OUT
H
WL MIC IN
I
WL MIC
J
RS-232
K
TRIGGER IN/OUT
Note: When the "WL MIC (ALARM)" detects an alarm signal, the device will
show an alarm on the web UI, and can send the alarm to an external control
system through the LAN, RS-232 or TRIGGER OUT port. The "WL MIC
(ALARM)" is designed to be used in conjunction with "WL MIC IN".
2 of 4
5-pin Phoenix: Connect to audio amplifier
3-pin Phoenix: Connect to wireless microphone
for capturing sound
2-pin Phoenix: Connect to wireless microphone
for alarm signal input
3-pin Phoenix: Bidirectional serial input
2-pin Phoenix: Input and Output port for
signal to and from a third-party control
system.
