4K HDR 4:4:4 60Hz HDBaseT™ Matrix Switchers
with Toslink Zone Audio De-Embed Outputs
MXV Full Product Range
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC for the HDMI outputs, WyreStorm cannot
guarantee compatibility with all forms of CEC communication.
Identifying Product Versions
These products have been released under multiple versions which contain either different chassis designs and/or feature sets. Content within this QSG is for
the version 2 or newer of these products. Information on other versions can be found within the matching QSG. Each product version is identified by a v# after
the product number on the product and outer packaging. Note that a version of these products may not contain this identifier while all versions above v1 will
have the version indicated.
Basic Wiring Diagram
l i t e
t e l
S a
4 K
s R
l e s
i r e
W
Copyright © 2021 WyreStorm Technologies |
MXV Full Product Range Quickstart Guide | 210202
section for important wiring
e r
l a y
y P
- r a
B l u
4 K
x
B o
t e r
o u
t e m
y s
l S
r o
n t
C o
wyrestorm.com
In the Box

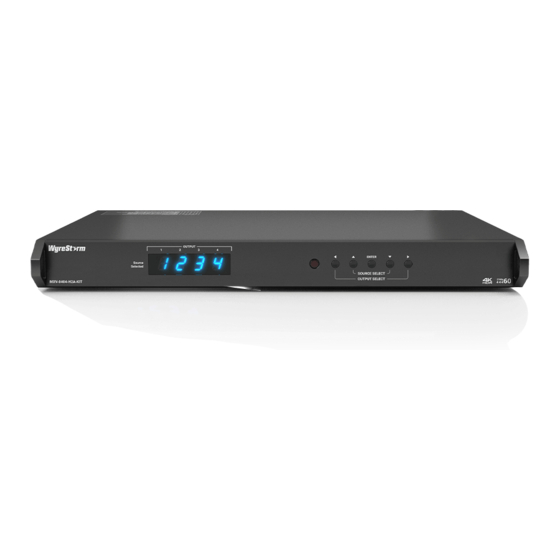

1x MXV Matrix Switcher
1x AC Power Cord with US/UK/EU/AU pins
1x IR Remote (CR2025 Battery not Included)
4/6/8x IR Emitters
4/6/8x IR Receivers
2x Matrix Mounting Brackets with screws
1x Quickstart Guide (this document)
Additional In the Box (KIT)
2x Standard HDBaseT Receivers
2x Scaling HDBaseT Receivers
1x IR Receiver for Matrix IR Ext.
8x Receiver Mounting Brackets with screws (2 per RX)
e
v i c
D e
l a y
s p
D i
R
A V
KEY
HDMI
Ethernet
Control
Digital Audio
Power
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
e s
v i c
D e
l a y
s p
D i
