Wyrestorm EXP-SW-0301 Quick Start Manual

3x1 HDMI Switcher with Remote
EXP-SW-0301
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain different
chassis designs and feature sets.
See Identifying Product Versions
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the Wiring and Connections
before creating or choosing premade cables.
• This product can be powered by the source via the HDMI Inputs or with an
optional external power supply.
• An IR Ext input is provided to control this product using an IR Receiver (not
included) or an IR control system.
See Wiring and Connections

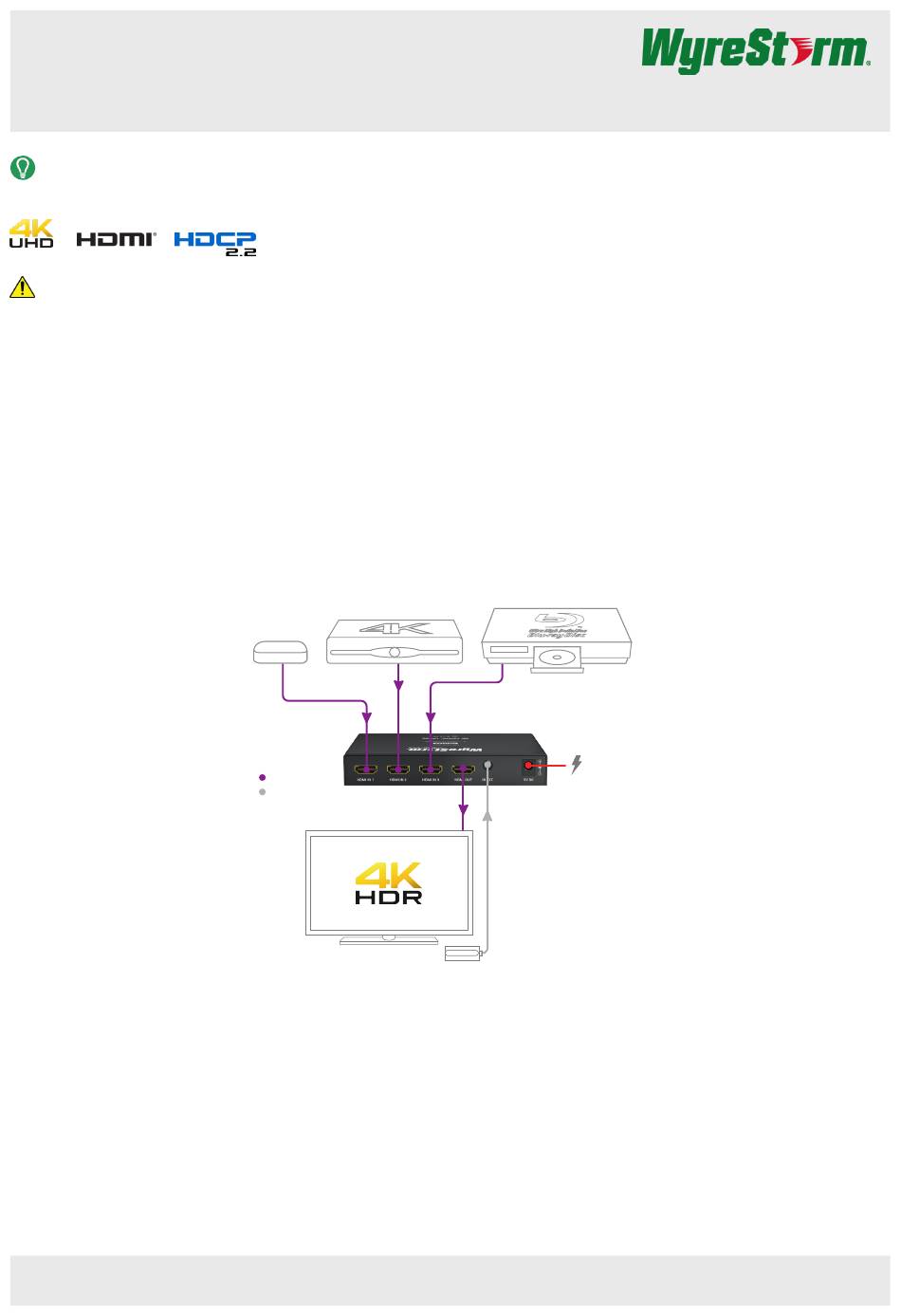

Basic Wiring Diagram
Copyright © 2019 WyreStorm Technologies |
EXP-SW-0301 Quickstart Guide | 190927
for details.
section for important guidelines
for guidelines when connecting these devices.
Media Player
HDMI from Source
HDMI from Source
Key
HDMI
IR
EXP-SW-0301
wyrestorm.com
In The Box

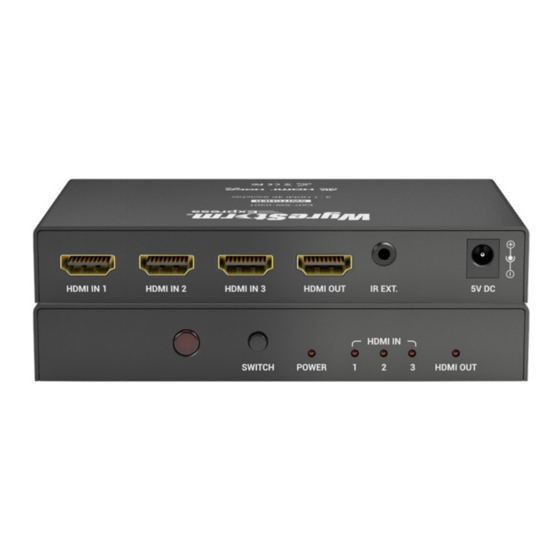

1x WyreStorm EXP-SW-0301 3x1 HDMI Switcher
1x IR Remote Control (CR2025 battery not included)
1x IR Receiver Cable
2x Mounting Brackets
1x 5v DC power supply (VER 1 only)*
4K/UHD Blu-ray Player
4K/UHD Satellite Box
HDMI from Source
Note: PSU Optional for v2 units
HDMI to
Display
IR
HDMI Display
1 of 4
Quickstart Guide
5V DC 1A
Power Supply
