HDMI ESSENTIALS, MADE SIMPLE.
WyreStorm Express
4x2 matrix switch
P/N: EXP-MX0402-010
WyreStorm Express is a plug and play range of high definition HDMI distribution solutions for the home or any venue
that make everyday video connectivity and setup, simple.
WyreStorm Express products offer straight-forward HD switching, distribution and cable solutions, all 3D compatible
and designed to work with the latest video source components (satellite and cable boxes), gaming devices and flat
panel TV displays.

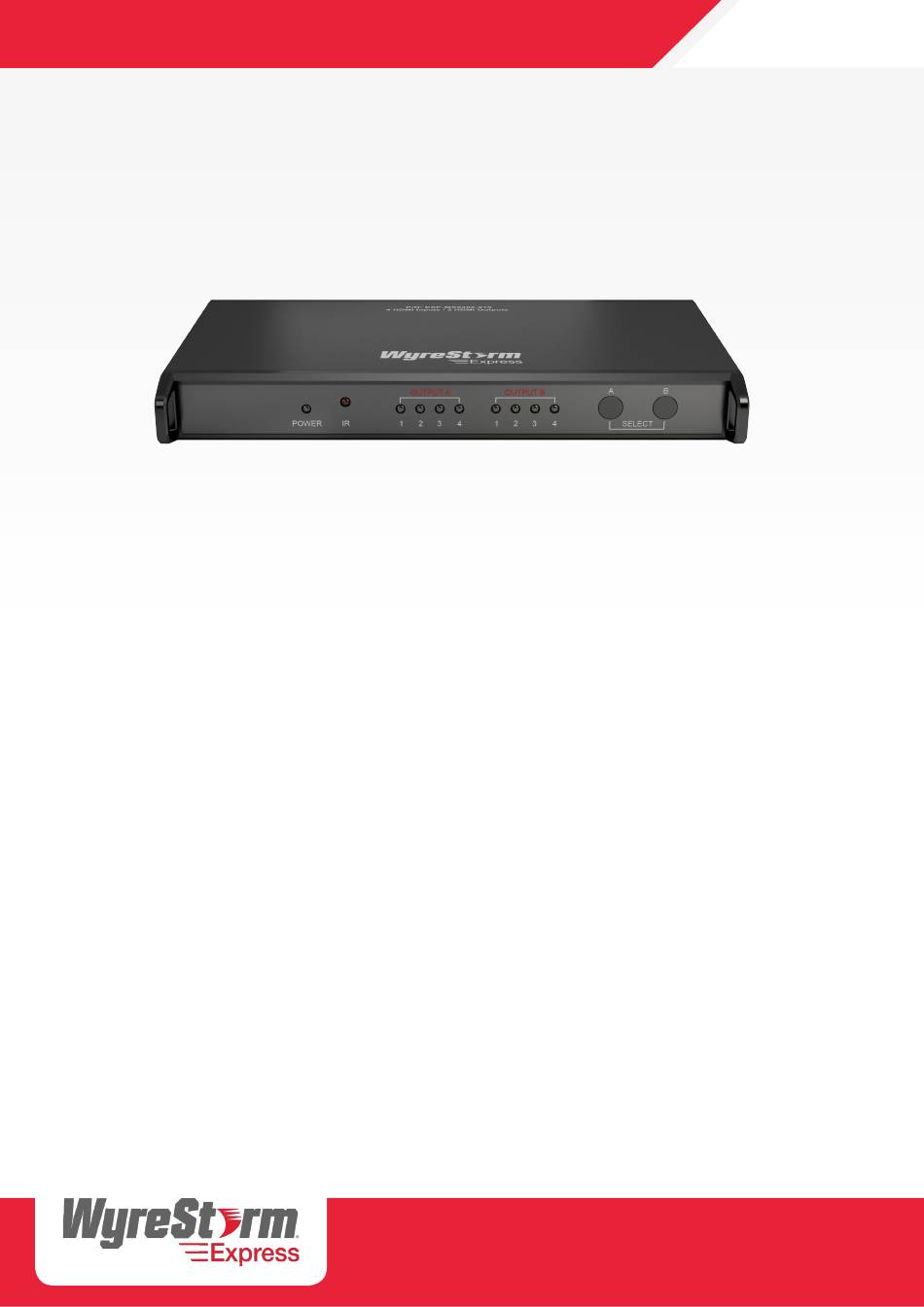

EXP-MX0402-010 is a simple yet effective 4 input to 2 output HD matrix switcher designed for home or small-scale
retail applications. The 4 x 2 matrix switch allows up to 4 HDMI video sources to be connected into the one switch
and then distribute full 1080p HD video and HD multichannel audio simultaneously to up to 2 displays over standard
HDMI cables (with an output bandwidth of 6.75 Gbps over HDMI).
Simply plug the HDMI cables from the four sources into the matrix and two HDMI cables out to the displays. Select
the source you wish to view using the front panel or remote and view it on the selected TV display. It's that easy!

Key Features

• Plug in and play 4 x 2 matrix switch perfect for home or
other small scale AV setups.
• Connect up to 4 HDMI video sources (satellite or cable
boxes, DVD, gaming devices) and distribute content
simultaneously to up to 2 displays via HDMI cables.
in the box
1 x WyreStorm Express 4x2 Matrix Switch
1 x 5VDC power supply
1 x Remote
1 x Installation manual
WyreStorm Express products include a twelve month manufacturer warranty.
• Capable of full 1080p HD video and HD multi-channel
audio distribution
• Simple video source selection and control using the front
panel or IR remote
