Charge Amps Dawn Professional DE User Manual

Hide thumbs Also See for Dawn Professional DE:
Table of Contents

Advertisement

Quick Links

Download this manual

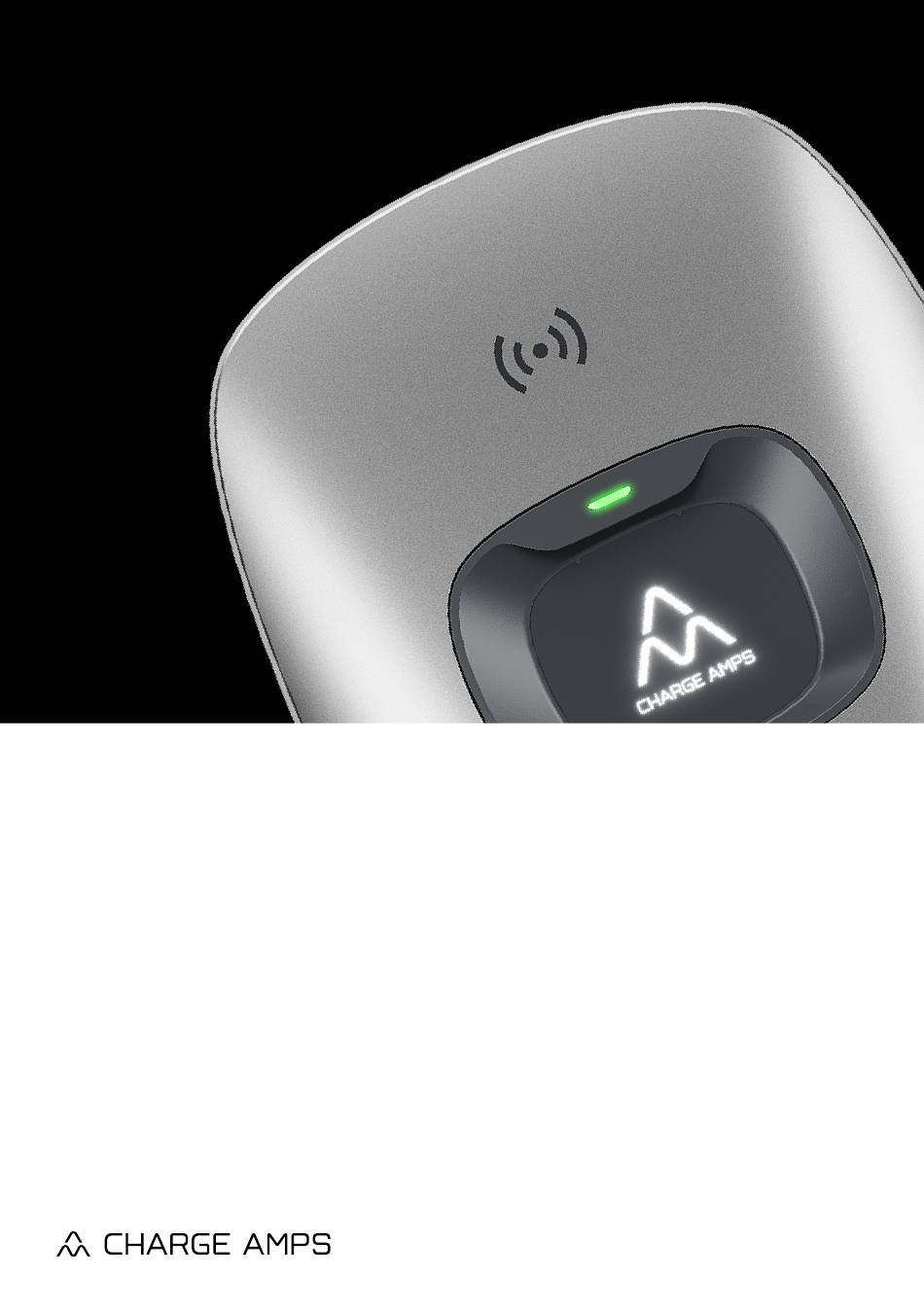

Charge Amps Dawn Professional DE
User Manual
English
Charge Amps Dawn Professional DE 131626
www.chargeamps.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dawn Professional DE and is the answer not in the manual?

Questions and answers

Related Manuals for Charge Amps Dawn Professional DE

Summary of Contents for Charge Amps Dawn Professional DE

  • Page 1 Charge Amps Dawn Professional DE User Manual English Charge Amps Dawn Professional DE 131626 www.chargeamps.com...
  • Page 2 Neglecting to follow and carry out the directions, instructions and safety precautions in this User Manual implies that any warranty provisions will be cancelled and that Charge Amps AB can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect –...

  • Page 3: Measurement Device

    English Measurement device EU Declaration of Conformity...
  • Page 4 English MessEV Declaration of Conformity...
  • Page 5 English Safety WARNING: Read all instructions before installation • Improper use may create a risk of personal injury. • The product must only be installed by a qualified electrician in accordance with the installation manual. • National usage requirements and restrictions apply. •...

  • Page 6: Technical Data

    English 2 Technical data Charging mode Mode 3 EV power supply identifier Metering MID 3-phase certified active electrical energy meter Eichrecht certified Socket Type 2, 22 kW Rated voltage (Un) 230/400 V Rated insulation voltage (Ui) 250/400 V Rated impulse withstand voltage 4 kV (Uimp) Rated frequency (fn)
  • Page 7 The charging power is subject to external conditions, such as outside temperature, car battery state of charge, or if there’s a load balancing function or charging schedule applied. For daisy chaining, the incoming current can be up to 63 A. See chapter 4.4 in Charge Amps Luna Installation Manual for more information.

  • Page 8: Product Overview

    English 3 Product overview MID display RFID reader RFID light EV socket Socket lights...

  • Page 9: Package Contents

    English 3.1 Package contents Charge Amps Dawn Professional DE (hereafter referred to as Charge Amps Dawn) comes with an MCB, cable connection block, and terminal block for daisy chaining pre-installed. See next page for a detailed list of included package content:...
  • Page 10 English Front cover Charging unit Accessories • 2x M32 Cable glands • 2x M32 plugs • 1x M12 Cable gland • 2x M12 plugs • 2x M32 insert only • 8x M4 screws Back plate Following items comes pre-installed on the Back plate: 1x Connection block 1x Terminal block for Daisy 1x MCB...
  • Page 11 4 Operate Charge Amps Dawn IMPORTANT! In accordance with German Measurement and Calibration Law, the operator and e-mobility service provider of Charge Amps Dawn must comply to the requirements stated in this chapter! 4.1 Charging station operator requirements Measurement accuracy notes in accordance with the type...
  • Page 12 English 2. When registering the charging points with the Federal Network Agency, the user of this product must also register the public key specified on the charging device for the charging points in their registration form! Without this registration, it is not possible to operate the charging device in compliance with calibration law.
  • Page 13 English 6. The user of this product is subject to the notification obligation pursuant to § 32 MessEG (extract): § Section 32 Obligation to notify (1) Anyone using new or renewed measuring instruments must notify the competent authority in accordance with national law no later than six weeks after commissioning...
  • Page 14 English (3) Whoever uses measured values shall: 1. Ensure that invoices, as they are based on measured values, can be easily reproduced by the person for whom the invoices are intended in order to verify the measured values indicated, 2. To provide suitable aids for the purposes mentioned in number 1 if necessary.
  • Page 15 English 5. The EMSP must make the transparency and display software belonging to the charging device available to the customer to check the data packets for falsification. 6. The EMSP must be able to demonstrate in a verifiable manner which means of identification was used to initiate the charging process associated with a specific measured value.
  • Page 16 English 5 Use Charge Amps Dawn 5.1 Add and manage RFID tags N.B: RFID-tags are added in the Cloud backend. RFID-tags must always be added to the selected Cloud backend that mange the charger. This applies also when the charger is connected via CEaaS.
  • Page 17 3. Log in to the E-mobility service provider who provides your charging session data record, and download the data. 4. Scan the QR-code in the Charge Amps Dawn MID display or copy the public key from the selected Cloud backend.
  • Page 18 English 5.5 MID module display On the left-hand side of Charge Amps Dawn, see ”A” in product overview, is a window displaying information about Charge Amps Dawn and the ongoing or finished charging session. The different display windows are described below.
  • Page 19 English 5.5.3 Active charging mode When Charge Amps Dawn is charging, the windows below, and the window with the public key, will be shown. Display window Description Duration of charging session and delivered energy during the session Charging session ID, from the Cloud backend 5.5.4 Summary of charging session mode...
  • Page 20 Status of charger and reason 5.5.6 Error states If there’s a fault in Charge Amps Dawn, the fault will be indicated by one of the windows below. IMPORTANT: Always contact the operator of Charge Amps Dawn or Charge Amps support if any of the Errors below occur.

  • Page 21: Led Indications

    English 5.6 LED indications 5.6.1 General Status Socket light RFID light Ready for charging Green steady light Green steady light Charging Blue pulsating light No light Charging complete Yellow steady light No light Charging paused by EV Yellow steady light No light Charging paused by Blue steady light...
  • Page 22 English 5.6.3 Other Status Socket light RFID light Error Red short pulsating light Red short pulsating light Earth fault detected Steady red light Steady red light EV socket unavailable No light No light for use Firmware update Yellow pulsating light Yellow pulsating light...
  • Page 23 English 6 Safety 6.1 Reset the MCB An MCB is installed inside Charge Amps Dawn and if the MCB should trip, reset the MCB by following the steps below. Recommended tools: • A Torx 25 to unscrew the front cover 1.
  • Page 24 English 2. Remove the front cover by a pull from the bottom. 3. Remove the rubber cap.
  • Page 25 English 4. Turn the switch to an upright position using a screwdriver. 5. Put the rubber cap back in place.
  • Page 26 English 6. Reassemble Charge Amps Dawn by inserting the front cover bottom flange and rotate the cover in place. Secure in place by tightening the front cover lock screw using Torx 25. N.B: Use a max. torque of 2 Nm when tightening the screw.
  • Page 27 English 6.2 Test the built-in RCD The built-in RCD function of Charge Amps Dawn needs to be tested twice a year. An earth fault is indicated by a steady red light on the socket lights and the RFID lights. Test and reset the built-in RCD function by following the steps below.
  • Page 28 English 4. Briefly hold the RFID tag in front of the RFID reader to initiate a charging session. 5. Make sure that the EV is charging, and that the socket lights are pulsating blue. 6. When the charging session has started, hold your finger on the test button marked ”T”...
  • Page 29 9. A steady green light will show on the socket lights which indicates the RCD has been reset. 10. Reassemble Charge Amps Dawn by inserting the front cover bottom flange and rotate the cover in place. Secure in place by tightening the front cover lock screw using Torx 25.
  • Page 30 English 6.3 Handling of tamper incidents The Charging unit of Charge Amps Dawn is equipped with a security seal. Should the security seal be broken, follow the steps below: 1. Turn off the power to Charge Amps Dawn. 2. Contact the operator of Charge Amps Dawn and report the...

  • Page 31: Additional Information

    English 7 Additional information Full product information Visit www.chargeamps.com for Charge Amps Dawn Installation Manual, Charge Amps Dawn User Manual and other product documentation. Product information https://www.chargeamps.com/product/charge-amps-dawn/...

  • Page 32: Maintenance

    English 8 Maintenance N.B: Never spray water or any other liquid directly on to the product. • Visually check that the EV socket-outlet it free from damage. • The outside of the product must be regularly wiped with a clean, dry cloth to remove dirt and dust.
  • Page 33 Charge Amps AB (publ) Frösundaleden 2B, 8th floor SE–169 75 Solna, Sweden Doc. Nr: 131651 © Copyright Charge Amps AB. Rev: 03 All rights reserved...
