User- and Installation Manual
Charge Amps AB

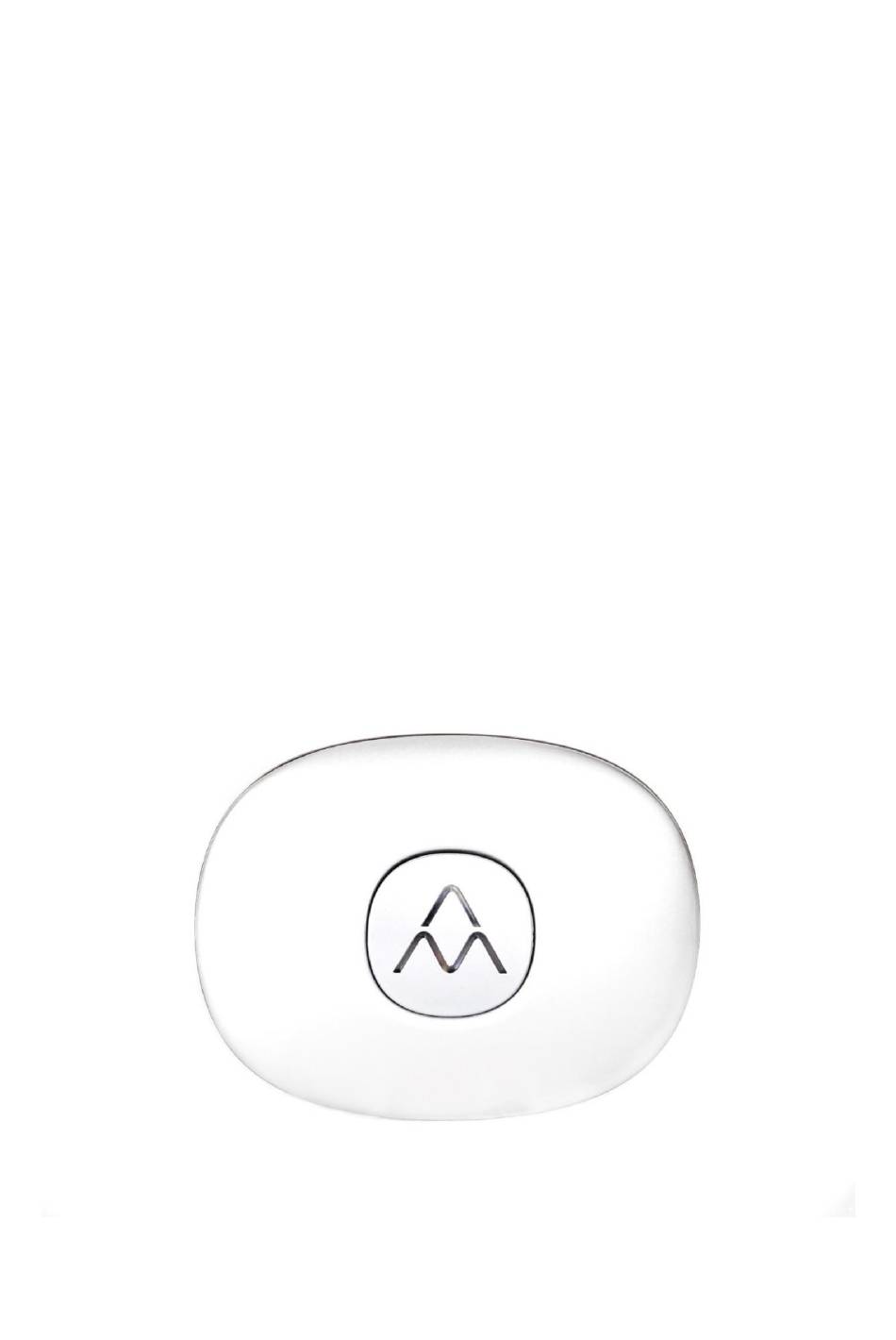

Product: Halo Wallbox™
Gustav III:s Boulevard 42, 8th floor
S-169 73 Solna
Sweden
The manual is a document that may be updated in the future without notice. Charge Amps AB cannot
guarantee that all information in the manual is correct and updated. Charge Amps AB are therefore
not liable for mistakes, accidents, damages or incidents that can lead back to the usage of this User-
and Installation manual.
© Copyright Charge Amps AB 2018. All rights are limited. Copying, adjusting or translating are strictly
forbidden without the consent from Charge Amps AB. The consent must be in written form with
exception from copyright laws.
Revision- and Change Log
Revision A: 2018-08-09
)
Sida 1 (15
Advertisement
Table of Contents
Related Manuals for Charge Amps Halo Wallbox
Summary of Contents for Charge Amps Halo Wallbox
-
Page 1: User- And Installation Manual
S-169 73 Solna Sweden The manual is a document that may be updated in the future without notice. Charge Amps AB cannot guarantee that all information in the manual is correct and updated. Charge Amps AB are therefore not liable for mistakes, accidents, damages or incidents that can lead back to the usage of this User- and Installation manual. -
Page 2: Table Of Contents
Introduction............................3 Product Content ..........................3 Model Overview – HALO Wallbox™ ....................4 Product Markings ..........................4 How to use your HALO Wallbox™ ....................5 Status and Error Indications ......................5 Product Support and Service......................6 Warranty Conditions ........................6 Installation Manual .......................... -
Page 3: Using Halo Wallbox
Introduction Congratulations, you have just taken a big leap towards a more sustainable environment with your purchase of a HALO Wallbox™! HALO is a product developed for private and semi-private charging environments. HALO is equipped with powerful hardware, appealing design and smart features. With my.charge.space (Charge Amps’... -
Page 4: Model Overview - Halo Wallbox
Model Overview – HALO Wallbox™ 1. Aluminium Front Cover: Opened during Installation. 2. Centre Cover: RFID Sensor, LED Indication. 3. Antenna: Wi-Fi. 4. HALO LED Ring. 5. Aluminum Rear Part: To be mounted onto wall. 6. Schuko: Power Outlet 16A (10A certain markets, and some models not included). -
Page 5: How To Use Your Halo Wallbox
*Power Outlet/Schuko, completley removed for certain markets. **3-phase input current for easier transition of active charging phase and load balancing. How to use your HALO Wallbox™ HALO is designed so you can easily charge your electric vehicle or plug-in hybrid. -
Page 6: Product Support And Service
Red: Denied access/ RFID not activated Product Support and Service Charge Amps offers support for all products. If you have any questions or problems do the following: Search through the User and Installation Manual to find information regarding your question. -
Page 7: Installation
Cable Before starting the installation, the following is important to check beforehand: • The electricity is shut off. • The incoming electrical cable is of correct dimension: o 2,5 mm för 16 A o 10 mm för 32 A • Ensure the fuse has the correct amp rating, 16A 1-phase 3,7kW, 16A 3-phase 11kW, 32A 1- phase 7,4kW. - Page 8 3. Drill holes according to your prior marking with appropriate hole dimension. 4. Open HALO with H4 hex key, remove connected terminal transit and contacts, disconnect antenna pole gently from HALO. Be aware so that O-rings around screws do not come off. Place Front Cover in a safe place 5.
- Page 9 8. Install the power cables in (attached picture below) the 5-pole terminal in the following order. There are different types of powerline set-ups, the following are the most common. 8.1. 1-phase input in TN System An input of 1-phase should be connected in the following order, with the advantage of connecting L2 and L3 for the possibility of load balancing in larger installments, and even able to choose the least loaded phase through our Cloud Service.
- Page 10 The O-rings around the screws are in place. 10.2. No cables are clamped. 10.3. The front cover is installed in up-right position (See Modell Overview. HALO Wallbox™) 11. Screw the four H4 hex screws in place. 12. Turn on power from the distribution box. Sida 10 (15...
-
Page 11: Operation
Now that you have electrically installed HALO, it is now time to configure it to a WiFi network. The end result with the configuration is to connect your HALO to Charge Amps’ portal and Cloud Service. How to configure HALO to Wirelss Internet (WiFi): 1. - Page 12 7. In the internet browser, write the following in the adress bar: IP adress: 192.168.250.1 8. You will now see a field for SSID (name of your WiFi network) and password. Please note that the fields are case-sensitive. 9. You will also see a list of available networks, choose the one you will use, it will then automatically fill in the name in the SSID field.
-
Page 13: Configuration Of Rfid
How to Register and Operate HALO in the Cloud Service: 1. Type in website adress: http://my.charge.space 2. Click the “Sign Up” link above “login form” 3. Fill in all fields and click on “GO”. 4. You will receive a verification link within a few minutes. 5. -
Page 14: Product Data
Product Data Specification Data Manufacture Charge Amps Versions 1 phase 3,7kW Type 1 1 phase 3,7kW Type 2 1 phase 7,4kW Type 1 1 phase 7,4kW Type 2 3 phase 11kW Type 2 Charging Current 1 x 16A (3,7kW) 1 x 32A (7,4kW) -
Page 15: Saftey Precaustions
Please read this instruction manual before using HALO Wallbox™. PLEASE OBSERVE: Charge Amps AB is not liable for mistakes, accidents, damages or incidents that can lead back to the usage of this User- and Installation manual. The manual is a document that may be updated in the future without notice. Charge Amps AB cannot guarantee that all information in the manual is correct and updated.
