- Page 1 CHARGE AMPS Halo Installation Manual Halo 3.7 kW, 7.4 kW and 11 kW...
-
Page 2: Table Of Contents
Configuring WiFi for Halo ........................10 Halo status indications ........................... 16 Halo error indications ..........................17 Rights ..............................17 Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com... -
Page 3: For The Professional Installer
For the professional installer This installation manual is intended for qualified Halo installers and describes how to install the product safely and properly. Installation may only be carried out by a qualified installer who follows: Basic safety precautions for safe and correct installation. -

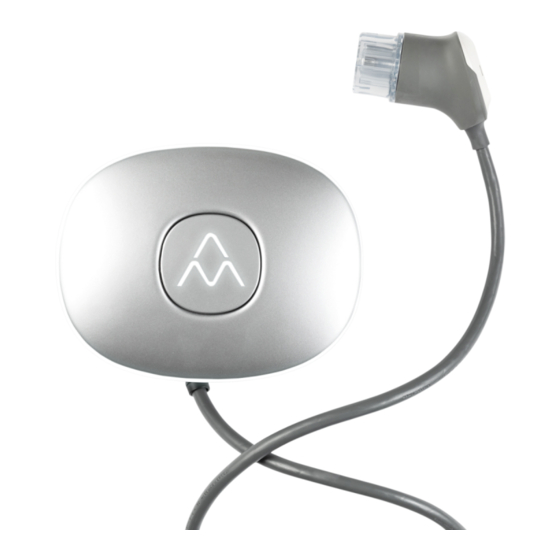

Page 4: About Halo
Halo gives a clear indication of the operating status, and its LED lighting makes it easier to use in the dark. It also has a socket that can be used to connect an engine/passenger compartment heater or other electrical equipment, such as an electric bicycle or vacuum cleaner. -
Page 5: Contents Of The Package
Provided by the installer • Three 5 mm screws with associated plugs (if required) for mounting Halo. The screws must have a flat head and be suitable for the wall material. External sealant for the wall (if necessary), depending on the structure of the mounting wall •... -
Page 6: Before Installation
Halo gets too hot. This is a safety feature to ensure a long service life. See the Halo technical specifications for operating temperatures. -
Page 7: Connection
Connection To get the most out of your Halo, an internet connection is required. Check with your supplier what internet connection requirements there are for your particular Halo. Installing Halo Install and mount Halo as follows: Read the installation instructions in this document thoroughly. - Page 8 Mount Halo on the wall with the selected fasteners. Use sealant if you are installing in an outdoor environment or on an uneven surface. Strip and insert the electrical cable in the cable entry underneath (15–20 cm is recommended for easy mounting).
- Page 9 Connection of 1-phase in IT network c. Connection of 3-phase in TN network (TN network only) Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 10 Refit the front assembly to the backplate. Carefully check that: a. All O-rings around the fastening screws are in place b. No cables are pinched c. The front assembly is mounted the right way, with the Charge Amps logo facing the right way (see below). Charge Amps Halo Installation Manual | ©...
-
Page 11: Configuring Wifi For Halo
Configuring WiFi for Halo After Halo has been installed electrically and on the network, it is time for it to be configured. The aim of configuration is to connect the unit to Charge Amps’ portal and cloud solution. - Page 12 3. Find the HALO_****** network, where ****** are the last six characters of the serial number. Select the network called HALO_******M (last characters of the product’s serial number). Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 13 4. When you are asked for the network key, enter the PIN code. Enter the password, which you will find on the configuration sheet supplied in the box, and connect. Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 14 6. You should now see a field with the SSID (name of the WiFi network) and the password. Note that the field is case-sensitive. Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com...
- Page 15 7. Wait for connection. (The mobile’s own 3G/4G may disrupt this. In that case, switch off mobile data). Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden...
- Page 16 You can now go to my.charge.space and sign up Halo to access all the functions in the cloud solution. Charge Amps Halo Installation Manual | © 2020 Charge Amps AB Frösundaleden 2B 130051, rev 01 169 75 Solna, Sweden www.chargeamps.com...
-
Page 17: Halo Status Indications
Supported WiFi standards: 802.11 b/g/n 2.4 GHz Halo status indications Halo uses light to communicate its status in different ways. Indication Status The centre cover is white and the LED ring Halo is starting up lights up incrementally in pace with start-up... -
Page 18: Halo Error Indications
LED ring is illuminated with a The RFID tag is not approved (if RFID is activated), steady white light charging is not activated Halo error indications Halo uses light to communicate its status in different ways. Indication Type of error Action The centre cover is Halo has frozen during start- Cut off the power to Halo via the main switch.
