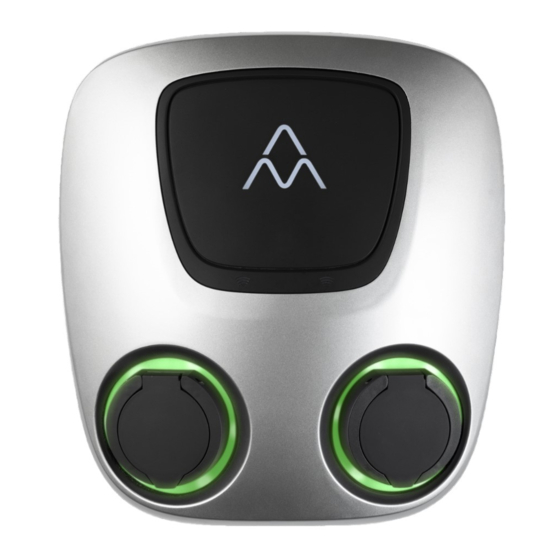

Charge Amps Aura Installation Manual

Hide thumbs Also See for Aura:
Table of Contents

Advertisement

Quick Links

Download this manual
Charge Amps Aura
Installation
English
Manual
www.chargeamps.com

Advertisement

Table of Contents
loading

Related Manuals for Charge Amps Aura

Summary of Contents for Charge Amps Aura

  • Page 1 Charge Amps Aura Installation English Manual www.chargeamps.com...

  • Page 2: Table Of Contents

    Recommended tools Materials provided by installer Mounting requirements Electric requirements 4.4.1 Short circuit safety 4.4.2 Residual current safety Internet access 4.5.1 Wi-Fi 4.5.2 4G-LTE 4.5.3 4.5.4 Network daisy chain of Charge Amps Aura Installation Mounting Connection 5.2.1 Cable connection Reassemble...
  • Page 3 English Configuration Create a Charge Amps Partner Account Connect Charge Amps Aura OCPP 1.6J version 6.2.1 Connect via Charge Amps Aura Wi-Fi access point 6.2.2 Connect via LAN 6.2.3 Connect via 4G-LTE 6.2.4 Local management interface settings Connect Charge Amps Aura CAPI version 6.3.1...
  • Page 4 Neglecting to follow and carry out the directions, instructions and safety precautions in this Installation Manual implies that any warranty provisions will be cancelled and that Charge Amps can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect –...

  • Page 5: Safety

    English Safety WARNING! Read all instructions before installation! • The product must only be installed or opened by a qualified electrician in accordance with the Installation Manual. • Make sure to switch the power off at the main switch before installation or service.

  • Page 6: Technical Data

    English 2 Technical data Charging mode Mode 3 EV power supply identifier Metering 1 to 3 phase voltage, current and power Socket Type 2, up to 2x22 kW Rated voltage (U 230/400 V Rated insulation voltage (U 250/400 V Rated impulse withstand voltage 4 kV Rated operational voltage (U 230/400 V...
  • Page 7 English Overvoltage category Pollution degree Electromagnetic compatibility Environment B Operating temperatures -35°C to +45°C Altitude 0 m to 2000 m IP code IP55 IK code IK10 Mechanical resistance High Dimensions (W x D x H) 367 x 159 x 405 mm Weight 10 kg Characteristics of power supply and...
  • Page 8 Communication protocol OCPP 1.6J: Valid for Charge Amps Aura with product number 130908 & 130909. CAPI: Valid for Charge Amps Aura with product number 101010 and 101010- LTE. Cellular networks communication Type: GSM, GPRS, EDGE, UMTS/ (only applies to Charge Amps Aura...

  • Page 9: Product Overview

    English 3 Product overview RFID reader Cylinder lock RFID light Back cover EV socket Front cover Socket light Cable slide: data and power cable in/out...

  • Page 10: Package Contents

    English 3.1 Package contents Cable slide Cable fitting Plugs M32 insert Screws RFID tag Cylinder key Wago jumper...
  • Page 11 English Charge Amps Aura Accessories: • Cable slide • Cable fitting for power (M32): 13 - 17.5 mm and 17 - 25 mm • Cable fitting for data (M12): 4 - 8 mm • Plugs for non-used cable entries • M32 insert only •...

  • Page 12: Before Installation

    English 4 Before installation 4.1 Recommended tools • 3.5 mm flat head screwdriver • Drill • Multimeter • Laser/spirit level • Wire stripper for cabling • Mobile phone, tablet or computer 4.2 Materials provided by installer • 4 x M6x30 mm or longer, flat head stainless screws type A2 or A4 with associated washers type A2 or A4 having a maximum outer diameter of 20 mm and plugs (if required, depending on wall conditions)

  • Page 13: Mounting Requirements

    English 4.3 Mounting requirements • If possible, do not mount the Charge Amps Aura in direct sunlight. • Make sure the wall can support a weight of 10 kg and the tractive force from the inserted cabling. • Do not install Charge Amps Aura in confined spaces.

  • Page 14: Electric Requirements

    Cables must not be passed through the rear housing. 4.4.1 Short circuit safety Make sure the installation for Charge Amps Aura is properly fused up to 63 A with one of the following: • B- or C-curve MCB* with energy limiting class 3.

  • Page 15: Internet Access

    Charge Amps Aura. 4.5.1 Wi-Fi Once the power is switched on, Charge Amps Aura will provide a Wi-Fi access point which is available for 10 minutes. You can use the Wi-Fi access point to connect Charge Amps Aura to the Wi-Fi network of the facility.

  • Page 16: Lte

    Charge Amps Aura with product number 130908, see the TRB 140 User Manual to find the default password and other information. • To log in to the 4G-LTE modem on Charge Amps Aura with product number 101010-LTE, please contact Charge Amps Support.

  • Page 17: Network Daisy Chain Of Charge Amps Aura

    Charge Amps Aura 4G-LTE or Charge Amps Aura with LAN connection. For Charge Amps Aura 4G-LTE, use a separate router or an Aura 4G-LTE as an uplink. It is not possible to use one Charge Amps Aura with Wi-Fi as an uplink.

  • Page 18: Installation

    N.B: Mounting shall only be performed by an qualified electrician. 1. Unpack Charge Amps Aura. Make sure that Charge Amps Aura is in a good condition and that all cables are properly seated. Do not place the face plate directly on to the ground.
  • Page 19 English 3. Unlock the cylinder lock. Rotate the front cover upwards and suspend the front. 4. Remove the cable slide by unscrewing the two M6 screws.
  • Page 20 English 5. Attach the cable fittings for power and data (NOTE: cable fitting for data is only applicable for Charge Amps Aura with LAN connection). N.B: Make sure to cover non-used cable entries with suitable plugs from the accessories. Data cable entry Power cable entry 6.
  • Page 21 English 7. Align Charge Amps Aura to the wall and mount.

  • Page 22: Connection

    • Cable connection: L1, L2, L3, N, PE. The WAGO terminals are designed for a cable area of 2.5 to 16 mm². • Make sure the incoming cabling is dimensioned to connect the Charge Amps Aura. 5.2.1 Cable connection N.B: Only insert the power cable through the specific cable entry.
  • Page 23 English 3. For TN/TT network connection, connect the conductors to the terminal block: TN/TT - single installation TN/TT - daisy chain installation...
  • Page 24 English 4. For IT network connection, connect the conductors to the terminal block using the provided Wago jumper (MPN: 2016- 433). NOTE: The Wago jumper should be placed between L2 and N. IT - single installation...
  • Page 25 English IT - daisy installation...
  • Page 26 English 5. Once the cables are connected to the teminal block, minimize the risk of squeezing any cables by making sure no cables are sticking out above the red dotted line.
  • Page 27 For 4G-LTE connection: insert the SIM card into the SIM card holder and make sure the modem is connected to the RJ45 port. N.B: Only applicable if Charge Amps Aura shall be connected via LAN connection or 4G-LTE connection. LAN connection...

  • Page 28: Reassemble

    English 5.3 Reassemble 1. Once the cables are installed, make sure that the RCDs and the MCB are turned on. 2. Make sure that none of the internal cables that are highlighted below were disconnected during installation and make sure the connectors are fully inserted in their sockets.

  • Page 29: Configuration

    Charge Amps Aura comes with two different communication protocols, OCPP 1.6J or CAPI. Follow the instructions for configuration based on the version of your Charge Amps Aura: • Charge Amps Aura with product number 130908 and 130909 with communication protocol OCPP 1.6J: follow chapter 6.2.

  • Page 30: Connect Charge Amps Aura Ocpp 1.6J Version

    Before starting the configuration process, make sure you have access to: • The serial number for Charge Amps Aura (can be found in the documentation included in the packaging). • The PIN code for Charge Amps Aura (can be found in the documentation included in the packaging).

  • Page 31: Connect Via Charge Amps Aura Wi-Fi Access Point

    N.B: The Charge Amps Aura Wi-Fi access point is deactivated if the RJ45 port is actively connected. Once the power is switched on, Charge Amps Aura will provide a Wi-Fi access point which is available for 10 minutes. Connect to...

  • Page 32: Connect Via Lan

    N.B: It is possible to daisy chain the LAN connection using the two RJ45 ports of Charge Amps Aura. 1. Make sure that Charge Amps Aura is connected to the local network via an ethernet cable one of the RJ45 ports.

  • Page 33: Connect Via 4G-Lte

    2. Insert the SIM card into the SIM card holder and make sure the modem is connected to the RJ45 port. 3. Charge Amps Aura will automatically connect to the internet once the power is on. 4. Verify the network connection by one of two following options: •...

  • Page 34: Local Management Interface Settings

    When Charge Amps Aura is connected to a cloud service, all management of RFID-tags is handled in the cloud. If Charge Amps Aura is to be operated offline, without a connection to a cloud service, management of RFID tags can be handled in the local management interface.

  • Page 35: Connect Charge Amps Aura Capi Version

    Before starting the connection process, make sure you have access to: • The serial number for Charge Amps Aura (can be found in the documentation included in the packaging). • The PIN code for Charge Amps Aura (can be found in the documentation included in the packaging).

  • Page 36: Connect Via Charge Amps Aura Wi-Fi Access Point

    N.B: The Charge Amps Aura Wi-Fi access point is deactivated if one of the RJ45 ports is actively connected. Once the power is switched on, Charge Amps Aura will provide a Wi-Fi access point which is available for 10 minutes. Connect to...

  • Page 37: Connect Via Lan

    RJ45 ports of Charge Amps Aura. 1. Insert the SIM card into the SIM card holder and make sure the modem is connected to one of the RJ45 ports. 2. Charge Amps Aura will automatically connect to the internet once the power is turned on.

  • Page 38: Cloud Connectivity

    English 7 Cloud connectivity Charge Amps App and Charge Amps Cloud are available for Charge Amps Aura connected to Charge Amps as the cloud provider. Charge Amps App Please download Charge Amps App for full control, adjusting settings and enabling smart charging and scheduling.

  • Page 39: Dismounting

    The power supply to the charger must be isolated before dismounting starts. 1. Perform a factory reset of Charge Amps Aura before powering it down. Contact the supplier before performing this action. 2. Turn the power off at the main switch.

  • Page 40: Preventative Maintenance

    9.2 Preventative maintenance N.B: Preventative maintenance should be performed by a qualified electrician once or twice each year to check that Charge Amps Aura is in good condition. • Remove the front cover and make a visual check of the cable connections.
  • Page 41 Charge Amps AB (publ) Frösundaleden 2B, 8th floor SE–169 75 Solna, Sweden Charge Amps UK Ltd 4th Floor, 3 More London Riverside London SE1 2AQ, United Kingdom Doc. Nr: 130742 © Copyright Charge Amps AB. Rev: 03 All rights reserved...
