- Page 1 Charge Amps Aura User English Manual www.chargeamps.com...
- Page 2 Neglecting to follow and carry out the directions, instructions and safety precautions in this User Manual implies that any warranty provisions will be cancelled and that Charge Amps can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect –...
- Page 3 English Safety WARNING! Read all instructions before installation. • Improper use may create a risk of personal injury. • The product must only be installed or opened by a qualified electrician in accordance with the Installation Manual. • National usage requirements and restrictions apply. •...
-
Page 4: Technical Data
English 2 Technical data Charging mode Mode 3 EV power supply identifier Metering 1 to 3 phase voltage, current and power Socket Type 2, up to 2x22 kW Rated voltage (U 230/400 V Rated insulation voltage (U 250/400 V Rated impulse withstand voltage 4 kV Rated frequency (f 50 Hz... - Page 5 Range: 2400 – 2500 MHz Max output: 20/17/14 dBm@802.11 b/g/n Cellular networks communication Type: GSM, GPRS, EDGE, UMTS/ (only applies to Charge Amps Aura HSPA+, LTE with product number 130908 and Range: 698 – 960 / 1710 – 2690 MHz 101010-LTE).
-
Page 6: Product Overview

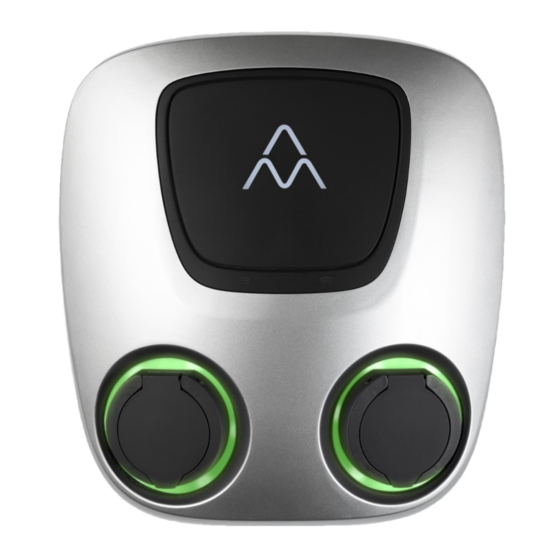

English 3 Product overview RFID reader Socket light RFID light Cylinder light ernatios moluptatem nat inihill acienda nitatquiste pa de omnihil EV socket-outlet in parum latemporiat odit rerecab id miliquatur sectem quam eum santiorat qu ipsundi... -
Page 7: Package Contents
English 3.1 Package contents Cable slide Cable fitting Plugs M32 insert Screws RFID tag Cylinder key Wago jumper... - Page 8 English Charge Amps Aura Accessories: • Cable slide • Cable fitting for power (M32): 13 - 17.5 mm and 17 - 25 mm • Cable fitting for data (M12): 4 - 8 mm • Plugs for non-used cable entries • M32 insert only •...
- Page 9 4 Use 4.1 Add RFID tag N.B. Make sure your installer has given you the access to Charge Amps Admin Portal to be able to manage RFID tags. Add RFID tag using the Charge Amps cloud service: https://my.charge.space/admin 4.2 Start and stop charging without RFID identification 1.
-
Page 10: Cable Lock
EV plug from the EV socket. 4.4 Cable lock During charging, the cable lock on the charging station is automatically activated. To permanently lock the EV charging cable to Charge Amps Aura while not charging, use Charge Amps App or cloud. - Page 11 English 4.5 Cloud connectivity Charge Amps Cloud and Charge Amps App are available for Charge Amps Aura connected to Charge Amps as the cloud provider. Charge Amps App Please download Charge Amps App for full control, adjusting settings and enabling smart charging and scheduling.
-
Page 12: Led Indications
Green light Charging Blue light Charging complete Yellow light (paused by vehicle) Charging paused Flashing blue light/yellow (paused by Aura) steady light* * Depending on version 4.6.2 RFID tag verification Status Socket light RFID light Waiting for RFID Yellow light... -
Page 13: Regular Maintenance
5.2 Preventative maintenance N.B: Preventative maintenance should be performed by a qualified electrician once or twice each year to check that Charge Amps Aura is in good condition. • Remove the front cover and make a visual check of the cable connections. -
Page 14: Product Support And Service
English 6 Product support and service If you have any questions or problems with the product, support is always available. To find answers to your questions most quickly: Read through this User Manual to check whether your questions are answered here. If your question is not answered in the User Manual, please: 1. - Page 15 Charge Amps AB (publ) Frösundaleden 2B, 8th floor SE–169 75 Solna, Sweden Charge Amps UK Ltd 4th Floor, 3 More London Riverside London SE1 2AQ, United Kingdom Doc. Nr: 130629 © Copyright Charge Amps AB. Rev: 02 All rights reserved...
