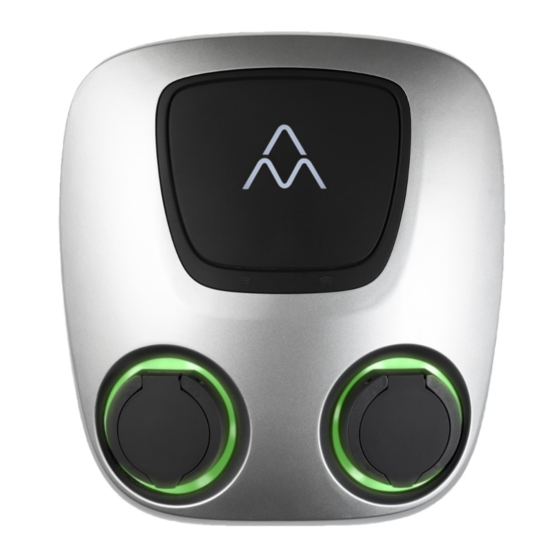

Charge Amps Aura
Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Charge Amps Aura

Summary of Contents for Charge Amps Aura

  • Page 1 Charge Amps Aura Installation Manual...

  • Page 2: Table Of Contents

    5.2. Connection ....................15 6. Configuration .................... 18 6.1. Connect to Wi-Fi ..................18 6.1.1. Access the Charge Amps Aura Wi-Fi access point ....18 6.1.2. Connect to Wi-Fi ................19 6.1.3. Connect to Wi-Fi ................19 6.2. Connect via LAN ..................19 6.3.
  • Page 3 Installation Manual implies that any warranty provisions will be cancelled and that Charge Amps AB can reject any and all claims for compensation in connection with any injuries/damage or incidents – direct or indirect – that are a result of such negligence.

  • Page 4: Safety

    Be careful not to touch the circuit board during installation to avoid the risk of • static electricity. Heavy object! To avoid muscle strain or back injury, use lifting aids and proper • lifting techniques. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc.

  • Page 5: Technical Data

    802.11 b/g/n: 20/17/14 dBm Rated voltage (Un) (of the 230/400 V ASSEMBLY) Rated operational voltage (Ue) 230/400 V (of a circuit of an ASSEMBLY) © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc. Nr: 130742-EN...
  • Page 6 Locations with restricted access Non-restricted access or non-restricted access Method of mounting Wall mounted ASSEMBLY* Stationary floor-mounted installation with pole mount accessory © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc. Nr: 130742-EN...
  • Page 7 GSM, GPRS, EDGE, UMTS/HSPA+, LTE Max RF output 33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE RF Range 698–960/1710–2690 MHz SIM card Standard SIM © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc. Nr: 130742-EN...

  • Page 8: Product Overview

    C. EV socket D. Socket light E. Cylinder lock F. Back cover G. Front cover H. Cable slide: data and power cable in/out. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc. Nr: 130742-EN...

  • Page 9: Package Contents

    A2 or A4 having a maximum outer diameter of 20 mm and plugs (if required, depending on wall conditions). Installation cable, according to the charging capability of the selected product • LAN cable • © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc.

  • Page 10: Mounting Requirements

    4.3. Mounting requirements If possible, do not mount the Charge Amps Aura in direct sunlight. • Make sure the wall can support a weight of 10 kg and the tractive force from the • inserted cabling. Do not install Charge Amps Aura in confined spaces.

  • Page 11: Internet Access

    4G (LTE) N.B. Only applicable to Charge Amps Aura LTE version. Up to four Charge Amps Auras can be connected in series. Use a router or an Aura4G as an access point. LAN cable A network cable, Cat5 or better, is required.

  • Page 12: Installation

    5. Installation 5.1. Mounting Unpack Charge Amps Aura. Make sure that Charge Amps Aura is in a good condition and that all cables are properly seated. Do not place the face plate directly on to the ground. Mark the mounting holes on the wall.
  • Page 13 Unlock the cylinder lock. Rotate the front cover upwards and suspend the front. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved. Frösundaleden 2B Org. No. 556897-7192 Doc. Nr: 130742-EN SE-169 75 Solna Registered office: Solna Rev 01...
  • Page 14 Data cable entry Power cable entry Reattach the cable slide to the back cover by securing the two M6 screws. Align Charge Amps Aura to the wall and mount. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved.

  • Page 15: Connection

    Connect conductors L1–L3, N and PE to the terminals. L1 L2 L3 N PE To route the power onwards, connect the cable to be routed onwards to the second input of the terminals. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved.
  • Page 16 Make sure that any cabling does not arch over the dotted red line as illustrated below. Connect the Ethernet cable to the RJ45 port on the control card if a fixed cable is used. © Copyright Charge Amps AB Charge Amps chargeamps.com All rights reserved.
  • Page 17 Close the front cover and lock in place. Turn the power on at the main switch. A start-up sequence with self-tests is carried out. Charge Amps Aura is ready for use when both ring lights around the sockets are green. © Copyright Charge Amps AB Charge Amps chargeamps.com...

  • Page 18: Configuration

    N.B. Not needed if LAN is used. See Chapter 6.2 Connect via LAN. The Charge Amps Aura Wi-Fi access point is not connected to a network. The Charge Amps Aura Wi-Fi access point is only accessible for 10 minutes once the power is switched on.

  • Page 19: Connect To Wi-Fi

    6.2. Connect via LAN N.B. Only available for Charge Amps Aura OCPP version. 1. Make sure that Charge Amps Aura is connected to the local network via a LAN cable. 2. Start a web browser using a computer or smart phone and enter the IP address assigned to Charge Amps Aura as a search path.

  • Page 20: Local Management Interface Settings

    1. Insert a SIM card into the SIM card holder. 6.4. Local management interface settings N.B. Only available for Charge Amps Aura OCPP version. Click on the arrow in the top right corner to navigate between tabs. 6.4.1. Electrical installation settings 1.

  • Page 21: Cloud Connectivity

    Charge Amps Cloud and Charge Amps App are available for Charge Amps Aura connected to Charge Amps as the cloud provider. To connect Charge Amps Aura to other cloud providers, please refer to your cloud provider for inquiries about portals and apps.

  • Page 22: Create A Charge Amps Partner Account

    8. Dismounting N.B. Dismounting must only be performed by an authorised electrician. Perform a factory reset of Charge Amps Aura before powering it down. Contact the supplier before performing this action. The power supply to the charger must be isolated before dismounting starts.
