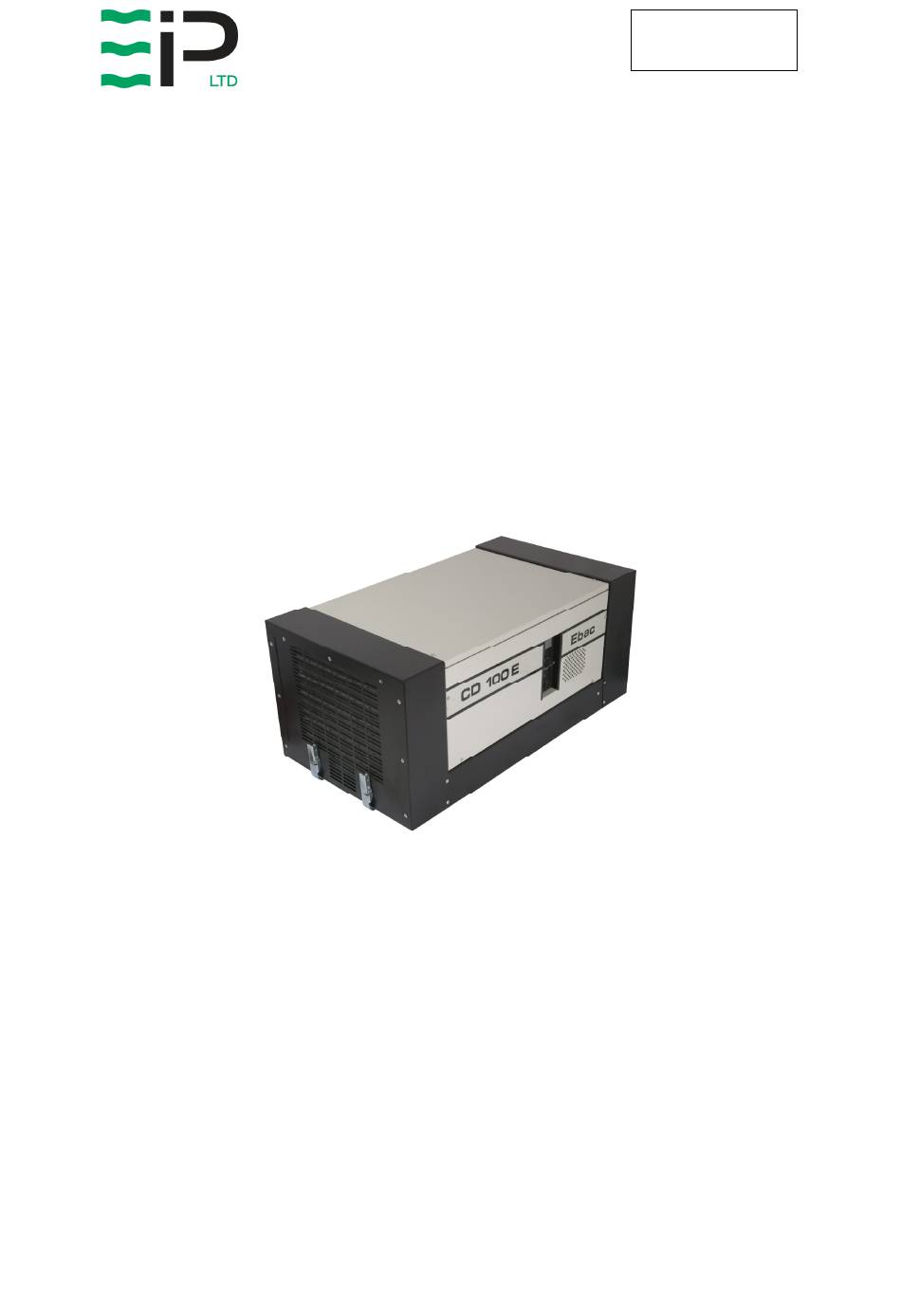

- Page 1 Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 CD100E INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...
- Page 2 Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 UNPACKING Carefully remove the CD100 dehumidifier unit from its transit box and visually check for signs of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your supplier for advice. Do not discard the packing;...
-
Page 3: Specifications
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 SPECIFICATIONS : CD100E ODEL : 400mm EIGHT : 900mm IDTH : 500mm EPTH : 75 Kg EIGHT : 510 cu.m/hr IRFLOW 1.5Kw (max) OWER 220V/240V, 1p, OWER UPPLY 50Hz/60Hz. -
Page 4: Installation
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 INSTALLATION POSITIONING: Position the dehumidifier unit in the center of the room to be conditioned if at all possible. However if a damp patch is particularly apparent the outlet grille should be pointed towards it. -
Page 5: Operation
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 OPERATION The operation of the dehumidifier is to remove moisture from the air by having it condense on the cool tubes of the evaporator coil. The air then passes over the hot condenser and returns to the conditioned space slightly warmer and at reduced moisture content. - Page 6 Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 WARNING: • Due to the high pressures within the refrigeration circuit, under no circumstances must direct heat be applied to the evaporator coil in an attempt to remove the build up of ice. •...
-
Page 7: Indicator Panel
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 SETTING THE ADJUSTABLE HUMIDISTAT: The positioning of the humidistat depends on the application the CD100 is being used for and the conditions within the area to be dried. The following table can be used as a guide: APPLICATION HUMIDISTAT... -
Page 8: Special Features
SPECIAL FEATURES HEATED CONDENSATE DRAINAGE TUBE: The CD100E dehumidifier is fitted with a heater tape which runs the length of the condensate tube. The effect of this heated condensate drainage tube will ensure that the drainage point for the dehumidifier is kept free from ice when operated in low ambients. -
Page 9: Routine Service
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. - Page 10 Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 11: Troubleshooting
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 TROUBLESHOOTING YMPTOM AUSE EMEDY Unit inoperative 1. Check the power supply 1. No power to unit (no red light) and fuse 1. Tighten fan 1. Loose fan on shaft 2. -
Page 12: Spare Parts List
Float Switch 3033021 Contactor 3034389 Panel Mounting Plug 3035997 Free Socket 3035998 Fan Blade 3040116 Knob 3090611 Knob Cap 3090612 Knob Pointer 3090613 CD100E Machine Label 2027311 Control Panel Label 2027309 Spare parts available online www.EIPLDIRECT.com Page 12 of 16... -
Page 13: Kit Contents
Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 CD100 / CD100E WALL MOUNTING BRACKET KIT PART NUMBER 1027301 KIT CONTENTS: Item Description Packed Received Frame Hook Rail Frame Location Angle Frame Top Angle Frame Bottom Angle ‘U’... - Page 14 Wall Mounted Bracket. 8. Using Item 6 assemble items 1 and 2 ensuring the fingers of Item 2 locate into the CD100 chassis. 9. Secure the CD100 / CD100E with the 2 Claw Clamps onto Item 1. Page 14 of 16...
- Page 15 Drawing : - TPC181 Issue : - 11 Date : - 24/11/16 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 16 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 16 of 16...
